Applications for Mouse IL-23R APC-conjugated Antibody
Recommended Concentration
Sample
Flow Cytometry
10 µL/106 cells
See below
Scientific Data Examples for Mouse IL-23R APC-conjugated Antibody
Flow Cytometry
Detection of IL‑23 R in Mouse Splenocytes by Flow Cytometry.
Mouse splenocytes treated with 10 µg/mL Anti-CD3 (Catalog # MAB484), 5 µg/mL Anti-CD28 (Catalog # AF483), 10 ng/mL Recombinant Mouse TGF-beta 1 (Catalog # 100-B), 20 ng/mL Recombinant Mouse IL-23 (Catalog # 1887-ML), 40 ng/mL Recombinant Mouse IL-6 (Catalog # 406-ML), and 10 ng/mL Recombinant Mouse IL-1 beta (Catalog # 401-ML) for 5 days to induce T17 activation were stained with Rat Anti-Mouse CD4 PE-conjugated Monoclonal Antibody (Catalog # FAB554P) and either (A) Rat Anti-Mouse IL-23 R APC-conjugated Monoclonal Antibody (Catalog # FAB16861A) or (B) Rat IgG1Allophycocyanin Isotype Control (Catalog # IC005A). View our protocol for Staining Membrane-associated Proteins.
Flow Cytometry

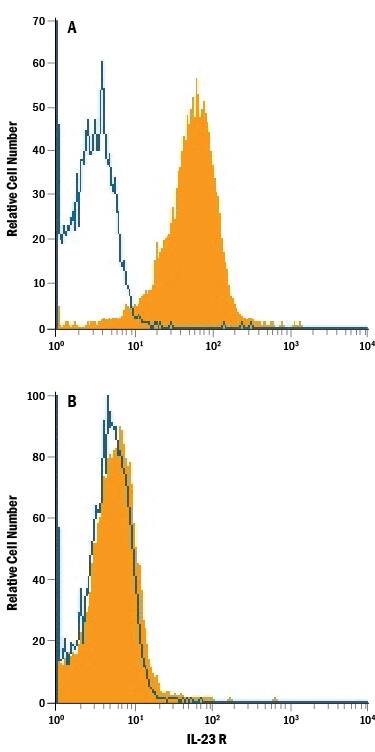

Detection of IL‑23 R in HEK293 Human Cell Line Transfected with Mouse IL-23 R by Flow Cytometry.
HEK293 human embryonic kidney cell line transfected with (A) mouse IL-23 R or (B) irrelevant transfectants was stained with Rat Anti-Mouse IL-23 R APC-conjugated Monoclonal Antibody (Catalog # FAB16861A, filled histogram) or isotype control antibody (Catalog # IC005A, open histogram). View our protocol for Staining Membrane-associated Proteins.
Formulation, Preparation and Storage
Purification
Protein A or G purified from hybridoma culture supernatant
Formulation
Supplied in a saline solution containing BSA and Sodium Azide.
Shipping
The product is shipped with polar packs. Upon receipt, store it immediately at the temperature recommended below.
Stability & Storage
Protect from light. Do not freeze.
12 months from date of receipt, 2 to 8 °C as supplied.
Plan Your Experiments
Use our spectra viewer to interactively plan your experiments,
assessing multiplexing options. View the excitation and emission spectra
for our fluorescent dye range and other commonly used dyes.
Interleukin 23 (IL-23) is a heterodimeric cytokine composed of two disulfide-linked subunits, a p19 subunit that is unique to IL-23, and a p40 subunit that is shared with IL-12 (1‑5). The functional IL-23 receptor complex consists of two receptor subunits, the IL-12 receptor beta 1 subunit (IL-12 R beta 1) and the IL-23-specific receptor subunit (IL-23 R) (3). Mouse IL-23 R cDNA encodes a 644 amino acid (aa) type I transmembrane protein with a 23 aa residue signal peptide, a 349 aa residue extracellular domain, a 23 aa residue transmembrane domain and a 249 aa residue cytoplasmic region. IL-23 R shares structural features with the IL-12 R beta 2, including an N-terminal Ig-like domain, two cytokine receptor domains and multiple glycosylation sites in the extracellular domain. IL-23 R lacks the three extracellular membrane-proximal fibronectin-type III domains present on IL-12 R beta 2. IL-23 R has a WQPWS sequence in the transmembrane-proximal cytokine receptor domain similar to the cytokine receptor signature WSXWS motif. The cytoplasmic region of IL-23 R has three potential Src homology 2 domain-binding sites and two potential Stat-binding sites. The gene for human IL-23 R is located on human chromosome 1 within 150 kb of IL-12 R beta 2. Human and mouse IL-23 R share 66% amino acid sequence identity. Mouse IL-23 R is expressed in mouse Th1 and Th2 cells, bone marrow, dendritic cells and macrophages. It is also expressed by mouse CD4+ CD45RBlow memory T cells but at much lower levels by mouse CD4+ CD45RBhigh cells. IL-23 initiates a signal transduction cascade similar to that of IL-12 and involves Jak2, Tyk2, STAT1, STAT3, STAT4, and STAT5. IL-23 has biological activities that are similar to, but distinct from, IL-12.
Item
Value
References
Oppmann, B. et al. (2000) Immunity 13:715.
Lankford, C.S. and D.M. Frucht (2003) J. Leukoc. Biol. 73:49.
Parham, C. et al. (2002) J. Immunol. 168:5448.
Belladonna, M.L. et al. (2002) J. Immunol. 168:5448.
Aggarwal, S. et al. (2003) J. Biol. Chem. 278:1910.
