Recombinant SARS-CoV-2 C.37 Spike RBD His-tag Protein, CF

R&D Systems, part of Bio-Techne | Catalog # 10880-CV

Lambda Variant L452Q, F490S
R&D Systems, part of Bio-Techne
Catalog #
Availability
Size / Price
Qty
10880-CV-100
Print Quote
Bulk Order
100% Guarantee

Key Product Details

Source

HEK293

Accession #

YP_009724390.1

Conjugate

Unconjugated

Applications

Bioactivity

View all Spike RBD Proteins and Enzymes »

Product Specifications

Source

Human embryonic kidney cell, HEK293-derived sars-cov-2 Spike RBD protein
Arg319-Phe541 (Leu452Gln, Phe490Ser), with a C-terminal 6-His tag

Purity

>95%, by SDS-PAGE visualized with Silver Staining and quantitative densitometry by Coomassie® Blue Staining.

Endotoxin Level

<0.10 EU per 1 μg of the protein by the LAL method.

N-terminal Sequence Analysis

Arg319

Predicted Molecular Mass

26 kDa

SDS-PAGE

32-38 kDa, under reducing conditions.

Activity

Measured by its binding ability in a functional ELISA.
Measured by its binding ability in a functional ELISA with Recombinant Human ACE-2 His-tag (Catalog # 933-ZN).

Scientific Data Images for Recombinant SARS-CoV-2 C.37 Spike RBD His-tag Protein, CF

Recombinant SARS-CoV-2 C.37 Spike RBD His-tag Protein Binding Activity

Recombinant SARS-CoV-2 C.37 Spike RBD His-tag (Catalog # 10880-CV) binds Recombinant Human ACE-2 His-tag (933-ZN) in a functional ELISA.

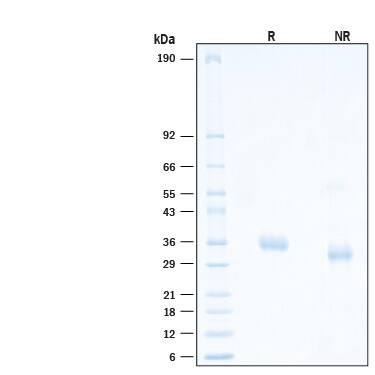

Recombinant SARS-CoV-2 C.37 Spike RBD His-tag Protein SDS PAGE

2 μg/lane of Recombinant SARS-CoV-2 C.37 Spike RBD His-tag Protein (Catalog # 10880-CV) was resolved with SDS-PAGE under reducing (R) and non-reducing (NR) conditions and visualized by Coomassie® Blue staining, showing bands at 32-38 kDa.

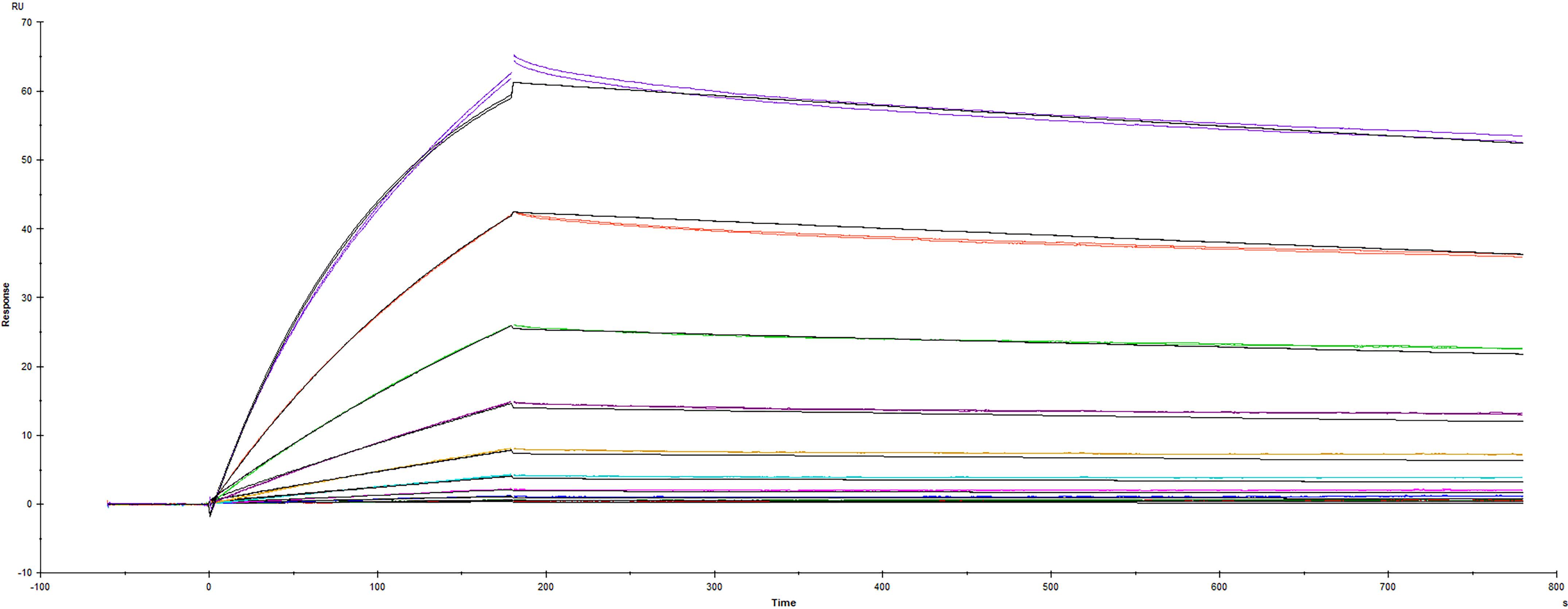

Surface plasmon resonance (SPR) sensorgram of Human ACE-2 binding to SARS-CoV-2 Spike RBD protein L452Q F490S mutant

Binding of ACE-2 to SARS-CoV-2 Spike RBD protein L452Q F490S mutant by surface plasmon resonance (SPR).

Recombinant SARS-CoV-2 Spike RBD protein L452Q F490S mutant His-tag (Catalog # 10880-CV) was immobilized on a Biacore Sensor Chip CM5, and binding to recombinant human ACE-2 (933-ZN) was measured at a concentration range between 0.184 nM and 94.3 nM. The double-referenced sensorgram was fit to a 1:1 binding model to determine the binding kinetics and affinity, with an affinity constant of KD=2.68 nM.

Formulation, Preparation and Storage

10880-CV
Formulation Lyophilized from a 0.2 μm filtered solution in PBS with Trehalose.
Reconstitution Reconstitute at 500 μg/mL in PBS.
Shipping The product is shipped at ambient temperature. Upon receipt, store it immediately at the temperature recommended below.
Stability & Storage Use a manual defrost freezer and avoid repeated freeze-thaw cycles.
  • 12 months from date of receipt, -20 to -70 °C as supplied.
  • 1 month, 2 to 8 °C under sterile conditions after reconstitution.
  • 3 months, -20 to -70 °C under sterile conditions after reconstitution.

Background: Spike RBD

SARS-CoV-2, which causes the global pandemic coronavirus disease 2019 (Covid-19), belongs to a family of viruses known as coronaviruses that also include MERS-CoV and SARS-CoV-1. Coronaviruses are commonly comprised of four structural proteins: Spike protein (S), Envelope protein (E), Membrane protein (M) and Nucleocapsid protein (N) (1). The SARS-CoV-2 S protein is a glycoprotein that mediates membrane fusion and viral entry. The S protein is homotrimeric, with each ~180-kDa monomer consisting of two subunits, S1 and S2 (2). In SARS-CoV-2, as with most coronaviruses, proteolytic cleavage of the S protein into S1 and S2 subunits is required for activation. The S1 subunit is focused on attachment of the protein to the host receptor while the S2 subunit is involved with cell fusion (3-5). A receptor binding domain (RBD) in the C-terminus of the S1 subunit has been identified and the RBD of SARS-CoV-2 shares 73% amino acid (aa) identity with the RBD of the SARS-CoV-1, but only 22% aa identity with the RBD of MERS-CoV (6,7). The low aa sequence homology is consistent with the finding that SARS and MERS-CoV bind different cellular receptors (8). The RBD of SARS-CoV-2 binds a metallopeptidase, angiotensin-converting enzyme 2 (ACE-2), similar to SARS-CoV-1, but with much higher affinity and faster binding kinetics (9). Before binding to the ACE-2 receptor, structural analysis of the S1 trimer shows that only one of the three RBD domains is in the "up" conformation. This is an unstable and transient state that passes between trimeric subunits but is nevertheless an exposed state to be targeted for neutralizing antibody therapy (10). Polyclonal antibodies to the RBD of the SARS-CoV-2 protein have been shown to inhibit interaction with the ACE-2 receptor, confirming RBD as an attractive target for vaccinations or antiviral therapy (11). There is also promising work showing that the RBD may be used to detect presence of neutralizing antibodies present in a patient's bloodstream, consistent with developed immunity after exposure to the SARS-CoV-2 (12). Several emerging SARS-CoV-2 genomes have been identified with mutations in the RBD compared to the Wuhan-Hu-1 SARS-CoV-2 reference sequence. First identified in South America in late 2020, the C.37 variant is considered a Variant of Interest (VOI) as it contains several mutations in the RBD domain that potentially affect viral fitness and transmissibility: L452Q and F490S (13). The F490S mutation, along with several mutations at position L452, has been associated with resistance to neutralization by multiple monoclonal antibodies (14).

References

  1. Wu, F. et al. (2020) Nature 579:265.
  2. Tortorici, M.A. and D. Veesler (2019) Adv. Virus Res. 105:93.
  3. Bosch, B.J. et al. (2003) J. Virol. 77:8801.
  4. Belouzard, S. et al. (2009) Proc. Natl. Acad. Sci. 106:5871.
  5. Millet, J.K. and G.R. Whittaker (2015) Virus Res. 202:120.
  6. Li, W. et al. (2003) Nature 426:450.
  7. Wong, S.K. et al. (2004) J. Biol. Chem. 279:3197.
  8. Jiang, S. et al. (2020) Trends. Immunol. https://doi.org/10.1016/j.it.2020.03.007.
  9. Ortega, J.T. et al. (2020) EXCLI J. 19:410.
  10. Wrapp, D. et al. (2020) Science 367:1260.
  11. Tai, W. et al. (2020) Cell. Mol. Immunol. https://doi.org/10.1016/j.it.2020.03.007.1.
  12. Okba, N.M.A. et al. (2020). Emerg. Infect. Dis. https://doi.org/10.3201/eid2607.200841.
  13. Romero, P.E. et al. (2021) medRxiv https://doi.org/10.1101/2021.06.26.21259487.
  14. Liu, Z. et al. (2021) Cell Host Microbe. 29:477.

Long Name

Spike Receptor Binding Domain

Entrez Gene IDs

3200426 (HCoV-HKU1); 14254594 (MERS-CoV); 1489668 (SARS-CoV); 43740568 (SARS-CoV-2)

Gene Symbol

S

UniProt

YP_009724390.1
