Simple Plex Human CD40/TNFRSF5 Cartridge

Name: Simple Plex Human CD40/TNFRSF5 Cartridge
Brand: ProteinSimple
SKU: SPCKB-PS-000196

ProteinSimple, part of Bio-Techne | Catalog # SPCKB-PS-000196

Simple Plex Human CD40/TNFRSF5 assay kit for use on Ella instrument. Contains cartridge, sample diluent SD13, and wash buffer.

Customize Your Simple Plex Cartridge

Create your custom Simple Plex cartridge for up to 8 targets. Choose from more than 250 targets across multiple species.

Build My Cartridge

Key Product Details

Assay Length:	90 minutes
Sample Type & Volume Required Per Well:	Serum (25 uL), EDTA Plasma (25 uL), Heparin Plasma (25 uL)
Sensitivity:	0.664 pg/mL
Assay Range:	4.28 - 16,324 pg/mL (Serum, EDTA Plasma, Heparin Plasma)
Simple Plex Human CD40/TNFRSF5 Cartridge Summary:	Simple Plex assay for the detection of human CD40 in serum and plasma (EDTA/Heparin)

*The Sample Volume represented is based on the amount of sample incorporated into the reaction after taking into account the assay’s minimum required dilution for a given matrix. Serial dilution may be necessary to achieve some of the final sample volumes represented.

View Full Technical Details for Simple Plex Human CD40/TNFRSF5 Cartridge

Technical Data
Citations

Product Specifications for Simple Plex Human CD40/TNFRSF5 Cartridge

Assay Type	Automated sandwich ELISA
Format	Microfluidic cartridge containing three Glass Nano Reactors (GNR)
Reactivity	Human
Specificity	Natural and recombinant human CD40.
Cross-reactivity	< 0.5% cross-reactivity observed with available related molecules. < 50% cross-species reactivity observed with species tested.
Interference	No significant interference observed with available related molecules.

Precision

Intra-Assay Precision (Precision within an assay) Each control was tested 16 times in one assay

Inter-Assay Precision (Precision between assays) Replicates of each control were tested in multiple assays performed by at least three technicians using two lots of reagents

Serum, EDTA Plasma, Heparin Plasma

	Intra-Assay Precision		Inter-Assay Precision
Sample	1	2	1	2
n	16	16	17	16
Mean (pg/mL)	226	11174	230	11840
Standard Deviation	6.9	526	9.92	973
CV%	3	4.7	4.3	8.2

Linearity

Samples containing and/or spiked with high concentrations of human CD40 were serially diluted with Sample Diluent to produce samples within the dynamic range of the assay

Scientific Data Examples for Simple Plex Human CD40/TNFRSF5 Cartridge

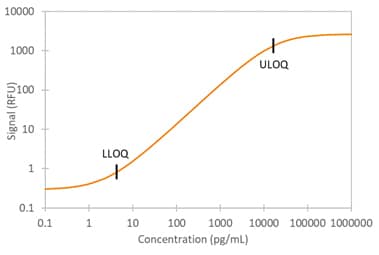

	Human CD40 Simple Plex Assay Standard Curve

Preparation and Storage

Shipping	The product is shipped at ambient temperature. Upon receipt, store it immediately at the temperature recommended below.
Stability & Storage	Store the unopened product at 2 - 8 °C. Do not use past expiration date.

Background: CD40/TNFRSF5

CD40, also known as TNFRSF5, is a transmembrane TNF superfamily receptor that is expressed on the surface of B cells, dendritic cells, macrophages, monocytes and platelets, as well as endothelial and epithelial cells. Interaction of CD40 with CD40 Ligand leads to the aggregation of CD40 molecules resulting in the initiation of bidirectional intracellular signaling in both CD40 and CD40 Ligand expressing cells. This interaction promotes B cell activation and T cell-dependent humoral responses. CD40 serves multiple functions in both hematopoietic and epithelial cancers and is a target for tumor immunotherapy. Dysregulation of CD40/CD40 Ligand expression and interactions contributes to disease severity in AIDS, atherosclerosis, atherothrombosis, and restenosis.

Entrez Gene IDs

958 (Human); 21939 (Mouse); 171369 (Rat); 102118696 (Cynomolgus Monkey)

Alternate Names

B cell surface antigen CD40, B-cell surface antigen CD40, Bp50B cell-associated molecule, CD40, CD40 antigen, CD40 molecule, TNF receptor superfamily member 5, CD40 type II isoform, CD40L receptor, CDw40, MGC9013, TNFRSF5, TNFRSF5CD40 antigen (TNF receptor superfamily member 5), nerve growth factor receptor-related B-lymphocyte activation molecule, p50, tumor necrosis factor receptor superfamily member 5, tumor necrosis factor receptor superfamily, member 5

Compatible Instruments

Ella - Automated Immunoassay Platform | ProteinSimple

Ella from ProteinSimple, a Bio-Techne brand. Get single or multiplex immunoassay results in less than 90 minutes that are consistent and highly reproducible.

Learn More

Product Documents for Simple Plex Human CD40/TNFRSF5 Cartridge

Product Datasheets

Download Product Insert

COA

Protocols & Manuals

Download Protocol
