Simple Plex Human Galectin-3 Cartridge

Name: Simple Plex Human Galectin-3 Cartridge
Brand: ProteinSimple
SKU: SPCKB-PS-000490

ProteinSimple, part of Bio-Techne | Catalog # SPCKB-PS-000490

Simple Plex Human Galectin-3 assay kit for use on Ella instrument. Contains cartridge, sample diluent SD13, and wash buffer.

Customize Your Simple Plex Cartridge

Create your custom Simple Plex cartridge for up to 8 targets. Choose from more than 250 targets across multiple species.

Build My Cartridge

Key Product Details

Assay Length:	90 minutes
Sample Type & Volume Required Per Well:	Cell Culture Supernates (10 uL), Serum (10 uL), EDTA Plasma (10 uL), Heparin Plasma (10 uL), Cerebrospinal Fluid (25 uL)
Sensitivity:	1 pg/mL
Assay Range:	3.11 - 4,740 pg/mL (Cell Culture Supernates, Serum, EDTA Plasma, Heparin Plasma, Cerebrospinal Fluid)
Simple Plex Human Galectin-3 Cartridge Summary:	Simple Plex assay for the detection of human Galectin-3 in cell culture supernates (CCS), serum, plasma (EDTA/Heparin), and cerebrospinal fluid (CSF).

*The Sample Volume represented is based on the amount of sample incorporated into the reaction after taking into account the assay’s minimum required dilution for a given matrix. Serial dilution may be necessary to achieve some of the final sample volumes represented.

View Full Technical Details for Simple Plex Human Galectin-3 Cartridge

Technical Data
Citations

Product Specifications for Simple Plex Human Galectin-3 Cartridge

Assay Type	Automated sandwich ELISA
Format	Microfluidic cartridge containing three Glass Nano Reactors (GNR)
Reactivity	Human
Specificity	Natural and recombinant human Galectin-3.
Cross-reactivity	< 0.5% cross-reactivity observed with available related molecules. < 50% cross-species reactivity observed with species tested.
Interference	No significant interference observed with available related molecules.

Linearity

Samples containing and/or spiked with high concentrations of human Galectin-3 were serially diluted with Sample Diluent to produce samples within the dynamic range of the assay

Scientific Data Examples for Simple Plex Human Galectin-3 Cartridge

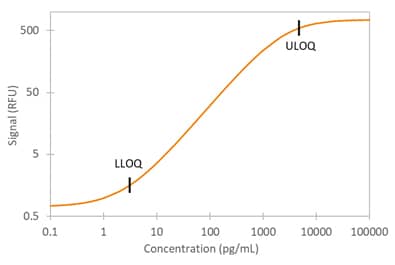

	Human Galectin-3 Ella Assay Standard Curve

Preparation and Storage

Shipping	The product is shipped at ambient temperature. Upon receipt, store it immediately at the temperature recommended below.
Stability & Storage	Store the unopened product at 2 - 8 °C. Do not use past expiration date.

Background: Galectin-3

The galectins constitute a large family of carbohydrate-binding proteins that function in many systems both intracellularly and following secretion. Galectins contain either one or two carbohydrate recognition domains (CRR) which mediate recognition of N-acetyl-lactosamine-containing glycoproteins. Some galectins exist in multiple isoforms due to alternative splicing. Individual galectins differ in their tissue distribution and in their carbohydrate-binding specificities.

Item	Value
Entrez Gene IDs	3958 (Human); 16854 (Mouse)
Alternate Names	AGE-R3, CBP 35,35 kDa lectin, CBP35, Carbohydrate-binding protein 35, GAL3, GALBPCBP35, GALIG, Gal-3, Galactose-specific lectin 3, Galactoside-binding protein, Galectin-3, Galectin3, IgE-binding protein, L-31, L29, L31, LGALS2, LGALS3, Laminin-binding protein, Lectin L-29, MAC2GAL3, Mac-2, Mac-2 antigen, galactin-3, lectin, galactoside-binding, soluble, 3

Compatible Instruments

Ella - Automated Immunoassay Platform | ProteinSimple

Ella from ProteinSimple, a Bio-Techne brand. Get single or multiplex immunoassay results in less than 90 minutes that are consistent and highly reproducible.

Learn More

Product Documents for Simple Plex Human Galectin-3 Cartridge

Product Datasheets

Download Product Insert

COA

Protocols & Manuals

Download Protocol
