ATM Antibody (5C2) - Azide and BSA Free
Novus Biologicals, part of Bio-Techne | Catalog # NB100-220
Key Product Details
Species Reactivity
Validated:
Human, Mouse, Rat, Monkey
Cited:
Human, Mouse, Avian - Chicken
Applications
Validated:
Immunocytochemistry/ Immunofluorescence, Immunohistochemistry, Immunoprecipitation, Western Blot
Cited:
Immunocytochemistry/ Immunofluorescence, Western Blot
Label
Unconjugated
Antibody Source
Monoclonal Mouse IgG1 Clone # 5C2
Format
Azide and BSA Free
Concentration
Concentrations vary lot to lot. See vial label for concentration. If unlisted please contact technical services.
Product Specifications
Immunogen
Recombinant protein expressed in E. coli corresponding to amino acids 980-1512.
Reactivity Notes
Human and Mouse reactivity reported in multiple pieces of scientific literature. Please note that this antibody is reactive to Mouse and derived from the same host, Mouse. Mouse-On-Mouse blocking reagent may be needed for IHC and ICC experiments to reduce high background signal. You can find these reagents under catalog numbers PK-2200-NB and MP-2400-NB. Please contact Technical Support if you have any questions.
Localization
Nuclear
Clonality
Monoclonal
Host
Mouse
Isotype
IgG1
Theoretical MW
351 kDa.
Disclaimer note: The observed molecular weight of the protein may vary from the listed predicted molecular weight due to post translational modifications, post translation cleavages, relative charges, and other experimental factors.
Disclaimer note: The observed molecular weight of the protein may vary from the listed predicted molecular weight due to post translational modifications, post translation cleavages, relative charges, and other experimental factors.
Scientific Data Images for ATM Antibody (5C2) - Azide and BSA Free
Western Blot: ATM Antibody (5C2) [NB100-220]
Western Blot: ATM Antibody (5C2) [NB100-220] - HeLa whole cell and nuclear extracts (30 ug) were separated by 5% SDS-PAGE, and the membrane was blotted with ATM antibody (5C2) [NB100-220] diluted at 1:1000. The HRP-conjugated anti-mouse IgG antibody [NBP2-19382] was used to detect the primary antibody, and the signal was developed with Trident ECL plus-Enhanced. Observed molecular weight ~320 kDa. Theoretical molecular weight 351 kDa.Immunocytochemistry/ Immunofluorescence: ATM Antibody (5C2) [NB100-220]

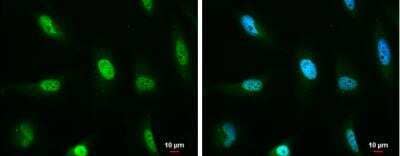

Immunocytochemistry/Immunofluorescence: ATM Antibody (5C2) [NB100-220] - HeLa cells were fixed in 4% paraformaldehyde at RT for 15 min. Green: ATM protein stained by ATM antibody (5C2) [NB100-220] diluted at 1:200. Blue: Hoechst 33342 staining. Scale bar = 10 um.Western Blot: ATM Antibody (5C2) [NB100-220]
ATM-Antibody-5C2-Western-Blot-NB100-220-img0008.jpgApplications for ATM Antibody (5C2) - Azide and BSA Free
Application
Recommended Usage
Immunocytochemistry/ Immunofluorescence
1:100-1:1000
Western Blot
1:500-1:3000
Application Notes
Use in ICC/IF reported in (PMID: 26447695). Use in WB reported in (PMID: 22869595). IHC, IP-Assay dependent.
Formulation, Preparation, and Storage
Purification
Protein G purified
Formulation
PBS
Format
Azide and BSA Free
Preservative
No Preservative
Concentration
Concentrations vary lot to lot. See vial label for concentration. If unlisted please contact technical services.
Shipping
The product is shipped with polar packs. Upon receipt, store it immediately at the temperature recommended below.
Stability & Storage
Store at 4C short term. Aliquot and store at -20C long term. Avoid freeze-thaw cycles.
Background: ATM
The theoretical molecular weight of ATM is 350 kDa and it has 3 main domains: a FAT (focal adhesion targeting) domain (aa 1960-2566), a PI-3/PI-4 kinase catalytic domain (aa 2712-2962), and a C-terminal FAT domain (aa 3024-3056). ATM exists as a dimer or tetramer in its inactive state. Upon sensing DNA damage, the MRE11-RAD50-NBS1 (MRN) complex recruits ATM. The intricate process of ATM activation involves acetylation by KAT5/TIP60, autophosphorylation at Ser-1981, and dissociation into catalytically active monomers (5). Following activation, ATM phosphorylates multiple substrates such as p53/TP53 and Chk2 involved in DNA repair, checkpoint signaling, and the apoptosis pathway.
References
1. Paull TT. (2015) Mechanisms of ATM Activation. Annu Rev Biochem. 84:711-38. PMID: 25580527
2. Chaudhary MW and Al-Baradie RS. (2014) Ataxia-telangiectasia: future prospects. Appl Clin Genet. 7:159-167. PMID: 25258552
3. Stagni V, Cirotti C, and Barila D. (2018) Ataxia-Telangiectasia Mutated Kinase in the Control of Oxidative Stress, Mitochondria, and Autophagy in Cancer: A Maestro With a Large Orchestra. Front Oncol. 8:73. PMID: 29616191
4. Gumy-Pause F, Wacker P, and Sappino AP. (2004) ATM gene and lymphoid malignancies. Leukemia. 18(2):238-42. PMID: 14628072
5. Adamowicz M. (2018) Breaking up with ATM. J Immunol Sci. 2(1):26-31. PMID: 29652413
Long Name
Ataxia Telangiectasia-mutated
Alternate Names
TEL1, TELO1, TPLL
Gene Symbol
ATM
Additional ATM Products
Product Documents for ATM Antibody (5C2) - Azide and BSA Free
Product Specific Notices for ATM Antibody (5C2) - Azide and BSA Free
This product is for research use only and is not approved for use in humans or in clinical diagnosis. Primary Antibodies are guaranteed for 1 year from date of receipt.
