CD3 Antibody (CA17.2A12)

Novus Biologicals, part of Bio-Techne | Catalog # NBP2-49891

Novus Biologicals, part of Bio-Techne

Key Product Details

Species Reactivity

Validated:

Canine

Cited:

Canine

Applications

Validated:

Flow Cytometry, Immunofluorescence, Immunohistochemistry, Immunohistochemistry-Frozen, Immunoprecipitation

Cited:

Flow Cytometry

Label

Unconjugated

Antibody Source

Monoclonal Mouse IgG1 Clone # CA17.2A12

Concentration

Please see the vial label for concentration. If unlisted please contact technical services.

View all CD3 Antibodies »

Product Specifications

Immunogen

Affinity enriched TCR/CD3 membrane proteins isolated from thymocytes and the T cell line CLGL-90

Clonality

Monoclonal

Host

Mouse

Isotype

IgG1

Scientific Data Images for CD3 Antibody (CA17.2A12)

Flow Cytometry: CD3 Antibody (CA17.2A12) [NBP2-49891]

Flow Cytometry: CD3 Antibody (CA17.2A12) [NBP2-49891]

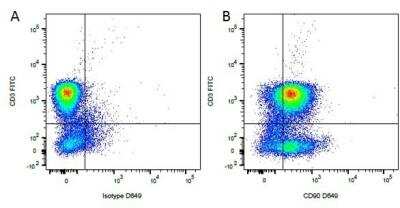

Flow Cytometry: CD3 Antibody (CA17.2A12) [NBP2-49891] - Figure A. Purified Rat anti Canine CD90 detected with Goat anti Rat IgG2a DyLight 649 and Mouse IgG1 FITC isotype control. Figure B. Purified Rat anti Canine CD90 detected with Goat anti Rat IgG2a PE and Mouse anti Canine CD3 FITC.
Flow Cytometry: CD3 Antibody (CA17.2A12) [NBP2-49891]

Flow Cytometry: CD3 Antibody (CA17.2A12) [NBP2-49891]

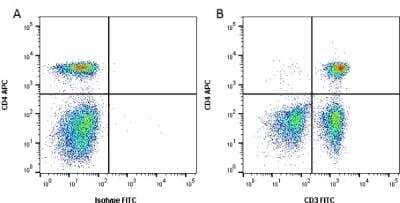

Flow Cytometry: CD3 Antibody (CA17.2A12) [NBP2-49891] - Figure A: APC conjugated rat anti-Canine CD4 and FITC conjugated mouse IgG1 isotype control. Figure B: APC conjugated rat anti-Canine CD4 and FITC conjugated mouse anti-Canine CD3.
Flow Cytometry: CD3 Antibody (CA17.2A12) [NBP2-49891]

Flow Cytometry: CD3 Antibody (CA17.2A12) [NBP2-49891]

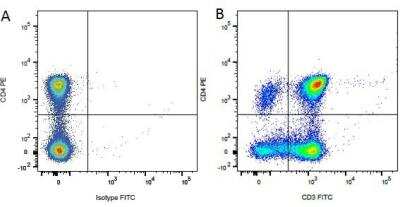

Flow Cytometry: CD3 Antibody (CA17.2A12) [NBP2-49891] - Figure A: RPE conjugated Rat anti-Dog CD4 and Mouse IgG1 isotype control labeled with Goat anti-Mouse FITC. Figure B: RPE conjugated Rat anti-Dog CD4 and Mouse anti-Dog CD3 labeled with Goat anti Mouse DyLight FITC.
View 6 more images

Applications for CD3 Antibody (CA17.2A12)

Application
Recommended Usage

Flow Cytometry

1:25 - 1:50

Formulation, Preparation, and Storage

Purification

Protein G purified

Formulation

PBS

Preservative

0.09% Sodium Azide

Concentration

Please see the vial label for concentration. If unlisted please contact technical services.

Shipping

The product is shipped with polar packs. Upon receipt, store it immediately at the temperature recommended below.

Stability & Storage

Store at 4C short term. Aliquot and store at -20C long term. Avoid freeze-thaw cycles.

Background: CD3

CD3 (cluster of differentiation marker 3) is a multi-subunit transmembrane protein that is expressed on the surface of T-cells and forms a complex with the T-cell receptor (TCR) (1-3). CD3 consists of four distinct membrane protein isoforms: CD3-delta (delta), CD3-epsilon (epsilon), CD3-gamma, and CD3-zeta (1-3). The CD3 subunits organize into a complex containing three sets of dimers: CD3-epsilondelta, CD3-epsilongamma, CD3-zetazeta. The CD3 complex binds to the TCR heterodimer (alphabeta or gammadelta) to form the transmembrane TCR-CD3 complex (2-3). Structurally, the CD3 protein chains have an extracellular region, a transmembrane domain, and a cytoplasmic trail region (2-3). The CD3-epsilondelta and CD3-epsilongamma heterodimers also contain an extracellular immunoglobulin (Ig)-like domain, classifying them as part of the immunoglobulin superfamily (2-3). The cytoplasmic tail of each CD3 chain also contains one (delta, epsilon, gamma) or three (zeta) immunoreceptor tyrosine-based activation motifs (ITAMs), for a total of 10 ITAMs in the whole CD3 complex (2-3). Following, TCR binding to peptide major histocompatibility complex (p-MHC), the CD3 ITAMs are phosphorylated by the Src kinase Lck and are important for recruiting ZAP70 and initiating TCR signaling cascade activation (2). While similar in structure, the CD3 chains vary in length and molecular weight (4). The CD3-delta is 171 amino acids (aa) in length with a theoretical molecular weight of 18.9 kDa (4, 5). The CD3-epsilon is 204 aa long and has a theoretical molecular weight of 23 kDa (4, 5). CD3-gamma is 182 aa long with a theoretical molecular weight of 20.4 kDa (4, 5). Finally, CD3-zeta is 164 aa in length with a theoretical molecular weight of 18.6 kDa (4, 5).

CD3 proteins are expressed on the surface of thymocytes during thymocyte development, proliferation, and maturation to T-cells (4, 6, 7). During T-cell development CD4-CD8- double negative (DN) cells differentiate to CD4+CD8+ double positive (DP) cells before progressing to single positive (SP) CD4+ helper T-cells or CD8+ cytotoxic T-cells (4, 6, 7). As CD3 plays an important role in thymocyte development, it is understandable that CD3 defects and mutations in CD3 protein chains cause severe combined immunodeficiencies (SCIDs) (8). Additionally, a subset of CD3+ T-cells that co-express CD20 are described in a variety of diseases including rheumatoid arthritis, multiple sclerosis, CD20+ T-cell leukemia/lymphoma, and HIV (9). Clinical trials and animal models have shown that anti-CD3 monoclonal antibodies are a promising treatment modality for inflammatory disorders and autoimmune diseases, such as type I diabetes (10).

References

1. Chetty, R., & Gatter, K. (1994). CD3: structure, function, and role of immunostaining in clinical practice. The Journal of pathology. https://doi.org/10.1002/path.1711730404

2. Mariuzza, R. A., Agnihotri, P., & Orban, J. (2020). The structural basis of T-cell receptor (TCR) activation: An enduring enigma. The Journal of biological chemistry. https://doi.org/10.1074/jbc.REV119.009411

3. Kuhns, M. S., Davis, M. M., & Garcia, K. C. (2006). Deconstructing the form and function of the TCR/CD3 complex. Immunity. https://doi.org/10.1016/j.immuni.2006.01.006

4. Clevers, H., Alarcon, B., Wileman, T., & Terhorst, C. (1988). The T cell receptor/CD3 complex: a dynamic protein ensemble. Annual review of immunology. https://doi.org/10.1146/annurev.iy.06.040188.003213

5. Uniprot: CD3-delta (P04234), CD3-epsilon (P07766), CD3-gamma (P09693), CD3-zeta (P20963)

6. D'Acquisto, F., & Crompton, T. (2011). CD3+CD4-CD8- (double negative) T cells: saviours or villains of the immune response?. Biochemical pharmacology. https://doi.org/10.1016/j.bcp.2011.05.019

7. Dave V. P. (2009). Hierarchical role of CD3 chains in thymocyte development. Immunological reviews. https://doi.org/10.1111/j.1600-065X.2009.00835.x

8. Fischer, A., de Saint Basile, G., & Le Deist, F. (2005). CD3 deficiencies. Current opinion in allergy and clinical immunology. https://doi.org/10.1097/01.all.0000191886.12645.79

9. Chen, Q., Yuan, S., Sun, H., & Peng, L. (2019). CD3+CD20+ T cells and their roles in human diseases. Human immunology. https://doi.org/10.1016/j.humimm.2019.01.001

10. Kuhn, C., & Weiner, H. L. (2016). Therapeutic anti-CD3 monoclonal antibodies: from bench to bedside. Immunotherapy. https://doi.org/10.2217/imt-2016-0049

Alternate Names

CD_antigen: CD3e, CD3 antigen, delta subunit, CD3d antigen, CD3d antigen, delta polypeptide (TiT3 complex), CD3d molecule, delta (CD3-TCR complex), CD3-DELTA, CD3e, CD3e antigen, CD3e antigen, epsilon polypeptide (TiT3 complex), CD3e molecule, epsilon (CD3-TCR complex), CD3-epsilon, CD3G, CD3g antigen, CD3g antigen, gamma polypeptide (TiT3 complex), CD3g molecule, epsilon (CD3-TCR complex), CD3g molecule, gamma (CD3-TCR complex), CD3-GAMMA, FLJ17620, FLJ17664, FLJ18683, FLJ79544, FLJ94613, IMD18, MGC138597, T3DOKT3, delta chain, T3E, T-cell antigen receptor complex, epsilon subunit of T3, T-cell receptor T3 delta chain, T-cell surface antigen T3/Leu-4 epsilon chain, T-cell surface glycoprotein CD3 delta chain, T-cell surface glycoprotein CD3 epsilon chain, TCRE

Gene Symbol

CD3E

UniProt

P27597 (Canine)

Additional CD3 Products

Product Documents for CD3 Antibody (CA17.2A12)

Product Datasheets

Certificate of Analysis

To download a Certificate of Analysis, please enter a lot number in the search box below.

Download SDS

Product Specific Notices for CD3 Antibody (CA17.2A12)

This product is for research use only and is not approved for use in humans or in clinical diagnosis. Primary Antibodies are guaranteed for 1 year from date of receipt.
