CD31/PECAM-1 Antibody - BSA Free

Novus Biologicals, part of Bio-Techne | Catalog # NBP1-71663

Novus Biologicals, part of Bio-Techne
Catalog #
Availability
Size / Price
Qty
NBP1-71663
NBP1-71663SS
Print Quote
Bulk Order
100% Guarantee

Key Product Details

Validated by

Biological Validation

Species Reactivity

Validated:

Human, Mouse

Cited:

Human, Mouse

Applications

Validated:

Flow Cytometry, Immunocytochemistry/ Immunofluorescence, Immunohistochemistry, Immunohistochemistry-Frozen, Immunohistochemistry-Paraffin, Simple Western, Western Blot

Cited:

Flow Cytometry, IF/IHC, Immunocytochemistry/ Immunofluorescence, Immunohistochemistry-Frozen, Immunohistochemistry-Paraffin, In vivo assay, Western Blot

Label

Unconjugated

Antibody Source

Polyclonal Rabbit IgG

Format

BSA Free

Concentration

1.0 mg/ml

View all CD31/PECAM-1 Antibodies »

Product Specifications

Immunogen

This CD31/PECAM-1 Antibody was developed against a genomic peptide made to an internal region of human CD31/PECAM1 (within residues 100-300) [Swiss-Prot P16284].

Localization

Membrane; Single-pass type I membrane protein. Cell junction. Note: Localizes to the lateral border recycling compartment (LBRC) and recycles from the LBRC to the junction in resting endothelial cells.

Clonality

Polyclonal

Host

Rabbit

Isotype

IgG

Theoretical MW

82.5 kDa.
Disclaimer note: The observed molecular weight of the protein may vary from the listed predicted molecular weight due to post translational modifications, post translation cleavages, relative charges, and other experimental factors.

Scientific Data Images for CD31/PECAM-1 Antibody - BSA Free

Immunocytochemistry/ Immunofluorescence: CD31/PECAM-1 Antibody - BSA Free [NBP1-71663]

Immunocytochemistry/ Immunofluorescence: CD31/PECAM-1 Antibody - BSA Free [NBP1-71663]

Immunocytochemistry/Immunofluorescence: CD31/PECAM-1 Antibody [NBP1-71663] - Staining of mouse glioma tissue using CD31/PECAM-1 Antibody (NBP1-71663) at a dilution of 1:2500. Image provided by Dr. Eric Woolf of Dignity Health.
Simple Western: CD31/PECAM-1 AntibodyBSA Free [NBP1-71663]

Simple Western: CD31/PECAM-1 AntibodyBSA Free [NBP1-71663]

Simple Western: CD31/PECAM-1 Antibody [NBP1-71663] - Image shows a specific band for CD31/PECAM 1 in 0.5 mg/mL of HUVEC lysate. This experiment was performed under reducing conditions using the 12-230 kDa separation system.
Immunohistochemistry: CD31/PECAM-1 Antibody - BSA Free [NBP1-71663]

Immunohistochemistry: CD31/PECAM-1 Antibody - BSA Free [NBP1-71663]

Immunohistochemistry: CD31/PECAM-1 Antibody [NBP1-71663] - 5-HTR1A agonist enhances neovascularization during skin wound healing (excisional punch biopsy model). CD31/PECAM-1 endothelial cell immunohistochemical staining at day 5 (A,B) and day 7 (E,F), image scale bars represented at 50 um. Results were presented as mean +/- SEM (n = 5 images per wound). Two-way ANOVA was performed and significance levels were set at *P < 0.05, **P < 0.01. Image collected and cropped by CiteAb from the following publication (https://www.frontiersin.org/article/10.3389/fphar.2018.01406/full), licensed under a CC-BY license.
View 4 more images

Applications for CD31/PECAM-1 Antibody - BSA Free

Application
Recommended Usage

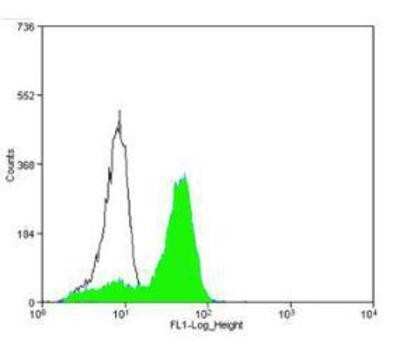

Flow Cytometry

1:1000

Immunocytochemistry/ Immunofluorescence

1:10-1:500

Immunohistochemistry

1:50

Immunohistochemistry-Frozen

reported in scientific literature (PMID 35879332)

Immunohistochemistry-Paraffin

1:50

Simple Western

1:1000

Western Blot

1:10000
Application Notes

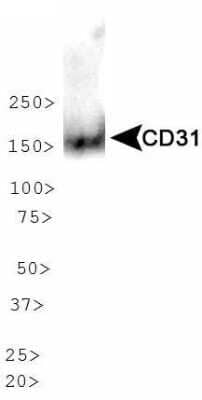

In Western Blot a band is seen ~150 kDa. Prior to immunostaining paraffin tissues, antigen retrieval with sodium citrate buffer (pH 6.0) is recommended. Customer feedback has been negative on cryosections.

In Simple Western only 10 - 15 uL of the recommended dilution is used per data point. Separated by Size-Wes, Sally Sue/Peggy Sue.
Please Note: Optimal dilutions of this antibody should be experimentally determined.

Reviewed Applications

Read 2 reviews rated 5 using NBP1-71663 in the following applications:

Formulation, Preparation, and Storage

Purification

Immunogen affinity purified

Formulation

PBS, 30% Glycerol

Format

BSA Free

Preservative

0.02% Sodium Azide

Concentration

1.0 mg/ml

Shipping

The product is shipped with polar packs. Upon receipt, store it immediately at the temperature recommended below.

Stability & Storage

Store at 4C short term. Aliquot and store at -20C long term. Avoid freeze-thaw cycles.

Background: CD31/PECAM-1

Cluster of differentiation (CD31), Platelet Endothelial Cell Adhesion Molecule 1 (PECAM-1), is a 30kDa type I transmembrane glycoprotein expressed by endothelial cells, platelets, leukocytes and some lymphocytes (e.g., B and T-cell subsets). Structurally, PECAM-1 consists of six extracellular immunoglobulin-like domains which serve to support various functions including homophilic binding, maintaining high expression of PECAM-1 within endothelial intercellular junctions, and supporting endothelial cell migration (1,2). PECAM's homophilic binding underscores its role in vascular barrier integrity and leukocyte trans-endothelial movement. However, PECAM may also engage in heterophilic interactions with molecules such as glycosaminoglycans (GAG), integrin alpha 5 beta 3, CD38 in lymphocytes and CD177/PR3 in neutrophils (2).

PECAM's intracellular cytoplasmic domain consists of a sequence of 118 amino acids and contains serine and tyrosine (also referred to as immunoreceptor tyrosine-based inhibitory motifs-ITIMs) residues, which may be phosphorylated upon cellular stimulation (3). ITIMs are phosphorylated by Src-family kinases and non-Src family kinases (e.g., Csk), leading to a conformational change which supports interactions with Src homology 2 (SH2) domain containing proteins such as protein-tyrosine phosphatase, SHP-2 (1,2). Formation of SHP-2/PECAM-1 complexes induces endothelial cell migration through the dephosphorylation of focal adhesion kinase and regulation of RhoA activity (1). Signaling downstream of ITIM tyrosine phosphorylations also plays a role in PECAM's anti-apoptotic activity, a function which is independent of its interaction with SHP-2. In platelets and leukocytes, phosphorylation of PECAM's cytosolic domain is inhibitory, preventing their activation.

References

1. Lertkiatmongkol, P., Liao, D., Mei, H., Hu, Y., & Newman, P. J. (2016). Endothelial functions of PECAM-1 (CD31). Current Opinion in Hematology. https://doi.org/10.1097/MOH.0000000000000239.Endothelial

2. Privratsky, J. R., & Newman, P. J. (2014). PECAM-1: Regulator of endothelial junctional integrity. Cell and Tissue Research. https://doi.org/10.1007/s00441-013-1779-3

3. Newman, P. J., & Newman, D. K. (2003). Signal transduction pathways mediated by PECAM-1: New roles for an old molecule in platelet and vascular cell biology. Arteriosclerosis, Thrombosis, and Vascular Biology. https://doi.org/10.1161/01.ATV.0000071347.69358.D9

Long Name

Platelet Endothelial Cell Adhesion Molecule 1

Alternate Names

CD31, EndoCAM, PECA1, PECAM-1, PECAM1

Entrez Gene IDs

5175 (Human); 18316 (Mouse)

Gene Symbol

PECAM1

UniProt

Q08481, P16284

Additional CD31/PECAM-1 Products

Product Documents for CD31/PECAM-1 Antibody - BSA Free

Product Datasheets

Certificate of Analysis

To download a Certificate of Analysis, please enter a lot number in the search box below.

Download SDS

Product Specific Notices for CD31/PECAM-1 Antibody - BSA Free

Manufactured by Genomic Antibody Technology™. GAT FAQs

This product is for research use only and is not approved for use in humans or in clinical diagnosis. Primary Antibodies are guaranteed for 1 year from date of receipt.
