Key Product Details

Species Reactivity

Validated:

Rat

Cited:

Human, Rat, Nematode - Caenorhabditis elegans

Applications

Validated:

CyTOF-ready, Flow Cytometry, Immunocytochemistry/ Immunofluorescence, Immunohistochemistry, Immunohistochemistry-Frozen

Cited:

Flow Cytometry, IF/IHC, Immunohistochemistry-Frozen, Immunohistochemistry-Paraffin, Western Blot

Label

Unconjugated

Antibody Source

Monoclonal Mouse IgG1 Clone # OX-1

Format

BSA Free

Concentration

1.0 mg/ml

View all CD45 Antibodies »

Product Specifications

Immunogen

This CD45 Antibody (OX-1) was prepared from A 100kD thymocyte glycoprotein fraction enriched for the rat leukocyte common antigen (L-CA).

Localization

Type I membrane protein.

Clonality

Monoclonal

Host

Mouse

Isotype

IgG1

Theoretical MW

143 kDa.
Disclaimer note: The observed molecular weight of the protein may vary from the listed predicted molecular weight due to post translational modifications, post translation cleavages, relative charges, and other experimental factors.

Scientific Data Images for CD45 Antibody (OX-1) - BSA Free

Flow Cytometry: CD45 Antibody (OX-1) - BSA Free [NB100-64895]

Flow Cytometry: CD45 Antibody (OX-1) - BSA Free [NB100-64895]

Flow Cytometry: CD45 Antibody (OX-1) [NB100-64895] - Analysis using Alexa Fluor (R) 488 conjugate of CD45 antibody (OX-1). Rat Splenocytes were stained with CD45 antibody (OX-1) [NB100-64895] (blue) and a matched isotype control [NBP2-27287] (orange). Cells were incubated in an antibody dilution of 1 ug/mL for 20 minutes at room temperature. Both antibodies were conjugated to Alexa Fluor 488.
Flow Cytometry: CD45 Antibody (OX-1) - BSA Free [NB100-64895]

Flow Cytometry: CD45 Antibody (OX-1) - BSA Free [NB100-64895]

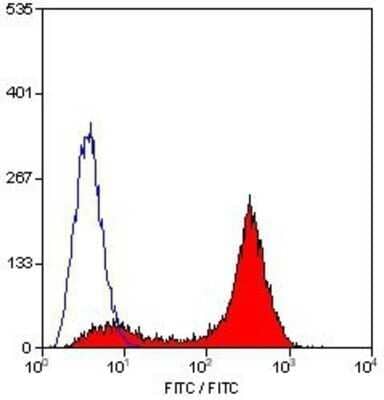

Flow Cytometry: CD45 Antibody (OX-1) [NB100-64895] - Analysis using the FITC conjugate of CD45 antibody (OX-1). Staining of rat spleen cells.
Flow Cytometry: CD45 Antibody (OX-1) - BSA Free [NB100-64895]

Flow Cytometry: CD45 Antibody (OX-1) - BSA Free [NB100-64895]

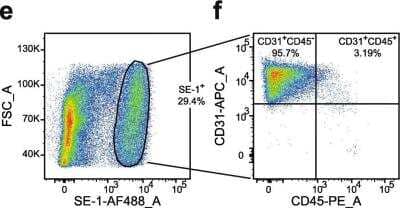

Flow Cytometry: CD45 Antibody (OX-1) - BSA Free [NB100-64895] - Representative sequential gating during flow cytometry analysis of rat non-parenchymal liver cells (n = 4). Cells were labeled with antibodies to SE-1 (NB110-68095AF488), CD31, and CD45 (NB100-64895PE). LSECs were then identified as SE-1-Alexa488+ cells (e), and the biexponential CD45-PE/CD31-APC of events (f) were used to display and select the CD45+ CD31+ subsets of LSECs. FMOs (used for gating), and single antibody staining controls are shown in Additional file. Image collected and cropped by CiteAb from the following publication (//pubmed.ncbi.nlm.nih.gov/33246411/) licensed under a CC-BY license.
View 1 more images

Applications for CD45 Antibody (OX-1) - BSA Free

Application
Recommended Usage

Flow Cytometry

1:100

Immunocytochemistry/ Immunofluorescence

1:10-1:500

Immunohistochemistry

1:10-1:500

Immunohistochemistry-Frozen

1:10-1:500
Application Notes
The antibody is directed against L-CA (leukocyte common antigen), the rat equivalent of CD45 which has a molecular weight 180-240kDa, and is present on all rat leukocytes, but not erythroid cells or cells of other tissues. This antibody is CyTOF ready.
Please Note: Optimal dilutions of this antibody should be experimentally determined.

Formulation, Preparation, and Storage

Purification

Protein G purified

Formulation

PBS

Format

BSA Free

Preservative

0.02% Sodium Azide

Concentration

1.0 mg/ml

Shipping

The product is shipped with polar packs. Upon receipt, store it immediately at the temperature recommended below.

Stability & Storage

Store at 4C short term. Aliquot and store at -20C long term. Avoid freeze-thaw cycles.

Background: CD45

CD45, also known as leukocyte common antigen (LCA), T200, or Ly5, is a member C of the class 1 receptor-like protein tyrosine phosphatase (PTPRC) family (1, 2). It is a transmembrane glycoprotein which, due to alternative splicing, has a multiple isoforms with a theoretical molecular weight ranging from 180 - 220 kDa (1, 3-5). Human CD45 is synthesized as a 1281 amino acid sequence consisting of an alternatively spliced extracellular receptor-like region, a cysteine-rich domain, fibronectin-like III repeats, a transmembrane segment, and a cytoplasmic region with tandem protein tyrosine phosphatase (PTP) domains: the membrane proximal domain (D1) and the membrane distal domain (D2) (3, 5). CD45 is expressed on all nucleated hematopoietic cells and their precursors, except mature red blood cells, and is one of the most abundantly-expressed cell-surface glycoproteins, comprising approximately 10% of surface proteins in lymphocytes (3). Functionally, CD45 is essential for development and activation of T-cells and B-cells (1-5). More specifically, CD45 positively regulates antigen receptor signaling and Src-family member kinase activity (1, 3). There are many ways to regulate CD45 phosphatase activity including ligand binding, dimerization, protein interactions, cellular localization, and covalent modifications (3, 6). Ligands for CD45 include pUL11, a transmembrane protein of the cytomegalovirus RL11 (CMV RL11) family, and placental protein 14 (PP14), both of which exclusively bind CD45, and various lectins including CD22, galectin-1, galectin-3, macrophage mannose receptor (MR), and macrophage galactose-type lectin (MGL) (6).

Given its role in immune cell development and activation, CD45 has also been linked to a variety of diseases. The importance of CD45 in immunity has been revealed in human and mouse studies where CD45-deficiency leads to a severe-combined immunodeficiency (SCID) phenotype (2, 3, 6). A CD45-knockout mice study revealed inhibited thymocyte production and poor B-cell response, whereas CD45 activation in mice causes lymphoproliferation and autoantibody production (3). CD45 variants have been associated with altered immune function and autoimmune disorders including multiple sclerosis, systemic lupus erythematosus (SLE), and rheumatoid arthritis (6). Furthermore, altered CD45 expression has been implicated in oncological conditions including chronic lymphatic leukemia, acute lymphatic leukemia, Hodgkin lymphoma, multiple myeloma, and diffuse large B-cell lymphoma (6). Considering its role in autoimmune disorders, immunodeficiency and cancer, CD45 is an ideal therapeutic target (3, 6). The main approaches to control CD45 function is through either selective inhibitors or anti-CD45 antibodies (3).

Alternative names for CD45 includes B220, CD antigen: CD45, CD45 antigen, CD45R, EC 3.1.3.48, GP180, LCA, Leukocyte common antigen, LY5, protein tyrosine phosphatase receptor type c polypeptide, PTPRC, receptor-type tyrosine-protein phosphatase C, T200 Glycoprotein, and T200.

References

1. Trowbridge, I. S., & Thomas, M. L. (1994). CD45: an emerging role as a protein tyrosine phosphatase required for lymphocyte activation and development. Annual review of immunology. https://doi.org/10.1146/annurev.iy.12.040194.000505

2. Andersen, J. N., Jansen, P. G., Echwald, S. M., Mortensen, O. H., Fukada, T., Del Vecchio, R., Tonks, N. K., & Moller, N. P. (2004). A genomic perspective on protein tyrosine phosphatases: gene structure, pseudogenes, and genetic disease linkage. FASEB journal : official publication of the Federation of American Societies for Experimental Biology.

3. Hermiston, M. L., Xu, Z., & Weiss, A. (2003). CD45: a critical regulator of signaling thresholds in immune cells. Annual review of immunology. https://doi.org/10.1146/annurev.immunol.21.120601.140946

4. Tonks, N. K., Diltz, C. D., & Fischer, E. H. (1990). CD45, an integral membrane protein tyrosine phosphatase. Characterization of enzyme activity. The Journal of biological chemistry.

5. Nam, H. J., Poy, F., Saito, H., & Frederick, C. A. (2005). Structural basis for the function and regulation of the receptor protein tyrosine phosphatase CD45. The Journal of experimental medicine. https://doi.org/10.1084/jem.20041890

6. Rheinlander, A., Schraven, B., & Bommhardt, U. (2018). CD45 in human physiology and clinical medicine. Immunology letters. https://doi.org/10.1016/j.imlet.2018.01.009

Long Name

Cluster of Differentiation 45

Alternate Names

CD45, LCA, PTPRC, T200 Glycoprotein

Entrez Gene IDs

24699 (Rat)

Gene Symbol

PTPRC

UniProt

P04157 (Rat)

Additional CD45 Products

Product Documents for CD45 Antibody (OX-1) - BSA Free

Product Datasheets

Certificate of Analysis

To download a Certificate of Analysis, please enter a lot number in the search box below.

Download SDS

Product Specific Notices for CD45 Antibody (OX-1) - BSA Free

This product is for research use only and is not approved for use in humans or in clinical diagnosis. Primary Antibodies are guaranteed for 1 year from date of receipt.
