COX4 Antibody - BSA Free

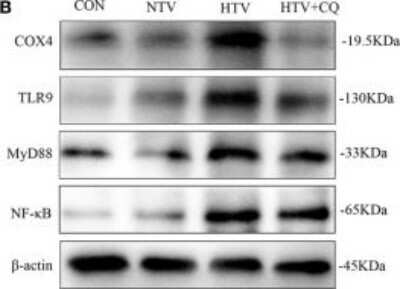

Western Blot: COX4 Antibody - BSA Free [NB110-39115] - The mRNA and protein expression of cytochrome c oxidase 4 (COX4), toll-like receptor (TLR) 9, myeloid differentiation factor 88 (MyD88), and nuclear factor (NF)-kB in lung tissues from spontaneous breathing group (CON group), normal tidal volume (NTV) group, high tidal volume (HTV) group, chloroquine (CQ) pretreatment upon HTV stimulation group (HTV + CQ). Levels of COX4, TLR9, MyD88, and NF-kB protein by Western blot. Fold expression for target genes was normalized to that measured for the beta-actin gene. Both of these experiments were in triplicate. Image collected and cropped by CiteAb from the following publication (//pubmed.ncbi.nlm.nih.gov/30018615/) licensed under a CC-BY license.

Western Blot: COX4 AntibodyBSA Free [NB110-39115]

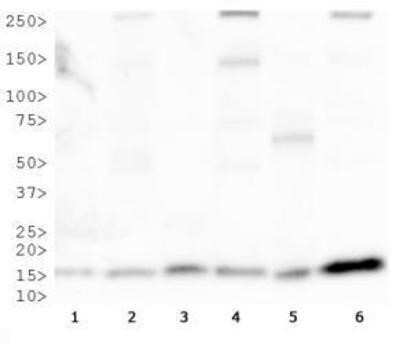

Western Blot: COX4 Antibody - BSA Free [NB110-39115] - Analysis of COX4 in the following cell lysates: 1. HeLa, 2. Ntera, 3. A431, 4. HepG2, 5. MCF7 and 6. 3T3.

Western Blot: COX4 AntibodyBSA Free [NB110-39115]

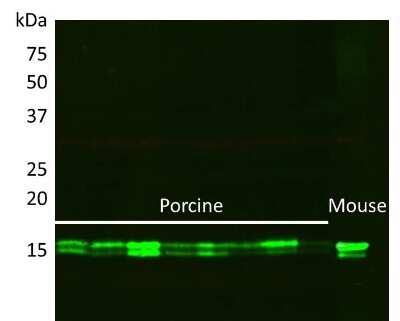

Western Blot: COX4 Antibody - BSA Free [NB110-39115] - Analysis of COX4 in porcine whole skeletal muscle lysate using anti-COX4 antibody. Image from verified customer review.

Western Blot: COX4 AntibodyBSA Free [NB110-39115]

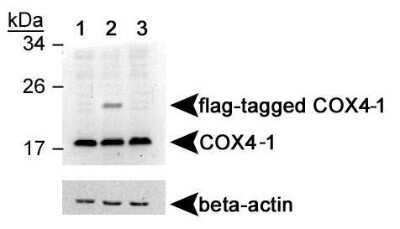

Western Blot: COX4 Antibody - BSA Free [NB110-39115] - Detection of COX4-1 isoform using COX4 antibody NB110-39115. Lane 1: HEK 293 with empty vector, Lane 2: HEK 293 with flag-tagged human COX4-1, Lane 3: HEK 293 with flag-tagged human COX4-2. Photo courtesy of Ryo Fukuda, G. Semenza lab. Johns Hopkins, SOM

Western Blot: COX4 AntibodyBSA Free [NB110-39115]

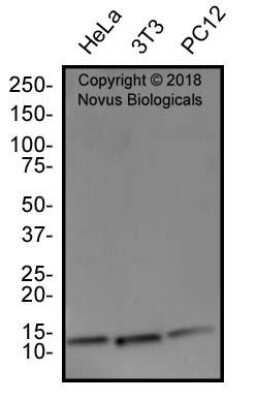

Western Blot: COX4 Antibody - BSA Free [NB110-39115] - Total protein from HeLa, 3T3 and PC12 was separated on a 4-20% gel by SDS-PAGE, transferred to PVDF membrane and blocked in 5% non-fat milk in TBST. The membrane was probed with 0.5 ug/mL anti-COX4 in 5% block buffer and detected with an anti-rabbit HRP secondary antibody using chemiluminescence.

Immunocytochemistry/ Immunofluorescence: COX4 Antibody - BSA Free [NB110-39115]

Immunocytochemistry/Immunofluorescence: COX4 Antibody - BSA Free [NB110-39115] - COX4 antibody was tested in HeLa cells with Dylight 488 (green). Nuclei and alpha-tubulin were counterstained with DAPI (blue) and Dylight 550 (red).

Immunocytochemistry/ Immunofluorescence: COX4 Antibody - BSA Free [NB110-39115]

Immunocytochemistry/Immunofluorescence: COX4 Antibody - BSA Free [NB110-39115] - Analysis of HeLa cells using COX4 antibody (NB110-39115, 1:5). An Alexa Fluor 488-conjugated Goat to rabbit IgG was used as secondary antibody (green). Actin filaments were labeled with Alexa Fluor 568 phalloidin (red). DAPI was used to stain the cell nuclei (blue).

Immunocytochemistry: COX4 Antibody - BSA Free [NB110-39115]

Immunocytochemistry: COX4 Antibody - BSA Free [NB110-39115] - Analysis of methanol fixed drosophila embryo using 1:200 dilution of COX4 antibody. The signal was developed using AF488 conjugated Donkey anti-Rabbit IgG (H+L) secondary antibody and the sections were further counterstained for tubulin and DAPI. The antibody generated a specific staining of COX4 in mitochondria near mitotic spindles at early stage of embryo development. Image from verified customer review.

Simple Western: COX4 AntibodyBSA Free [NB110-39115]

Simple Western: COX4 Antibody - BSA Free [NB110-39115] - Image shows a specific band for COX4 in 1.0 mg/mL of HeLa lysate. This experiment was performed under reducing conditions using the 12-230 kDa separation system.

Western Blot: COX4 Antibody - BSA Free [NB110-39115] -

Western Blot: COX4 Antibody - BSA Free [NB110-39115] - The expression levels of microtubule protein light chain 3 (LC3B), PTEN inducing putative kinase 1 (PINK1), Parkin, mitofusin 1 (Mfn1), toll-like receptor (TLR) 9, cytochrome c oxidase 4 (COX4), myeloid differentiation factor 88 (MyD88), & nuclear factor (NF)-kappa B in lung tissues from animals with spontaneous breathing (CON) or mechanical ventilation at high tidal volume (HTV) with saline, antimycin A (AmA) or cyclosporine A (CsA). (A) Levels of PINK1, Parkin, & Mfn1 mRNA. (B) Levels of LC3B, PINK1, Parkin, & Mfn1 protein by Western blot. (C) Relative expression of LC3B-II/LC3B-I & PINK1 protein. (D) Relative expression of Parkin & Mfn1 protein. (E) Levels of TLR9 & COX4 mRNA. (F) Levels of MyD88 & nuclear factor-kappa B (NF-kappa B) mRNA. (G) Levels of TLR9, COX4, MyD88, & NF-kappa B protein by Western blot. (H) Relative expression of TLR9 & COX4 protein. (I) Relative expression of MyD88 & NF-kappa B protein. Fold expression for target genes was normalized to that measured for the beta-actin gene. Both of these experiments were in triplicate. aP < 0.05 vs. CON group;bP < 0.05 vs. HTV group; & cP < 0.05 vs. AmA group. Image collected & cropped by CiteAb from the following publication (https://www.frontiersin.org/article/10.3389/fimmu.2018.01477/full), licensed under a CC-BY license. Not internally tested by Novus Biologicals.
