F4/80 Antibody (BM8)

Novus Biologicals, part of Bio-Techne | Catalog # NBP1-60140

Novus Biologicals, part of Bio-Techne
Catalog #
Availability
Size / Price
Qty
NBP1-60140
Print Quote
Bulk Order
100% Guarantee

Key Product Details

Validated by

Knockout/Knockdown

Species Reactivity

Validated:

Mouse

Cited:

Human, Mouse

Applications

Validated:

Flow Cytometry, Immunocytochemistry/ Immunofluorescence, Immunohistochemistry, Immunohistochemistry-Frozen, Immunohistochemistry-Paraffin, Knockout Validated, Western Blot

Cited:

Flow Cytometry, IF/IHC, Immunocytochemistry/ Immunofluorescence, Immunohistochemistry

Label

Unconjugated

Antibody Source

Monoclonal Rat IgG2A Clone # BM8

Concentration

0.1 mg/ml

View all F4/80 Antibodies »

Product Specifications

Immunogen

This F4/80 Antibody (BM8) was developed against BALB/c macrophages obtained from 14-day-old bone marrow cell cultures.

Specificity

Marker

Macrophage Marker

Clonality

Monoclonal

Host

Rat

Isotype

IgG2A

Theoretical MW

160 kDa.
Disclaimer note: The observed molecular weight of the protein may vary from the listed predicted molecular weight due to post translational modifications, post translation cleavages, relative charges, and other experimental factors.

Description

Positive Control: Mouse macrophages Negative control: Mouse fibroblasts or granulocytes

Scientific Data Images for F4/80 Antibody (BM8)

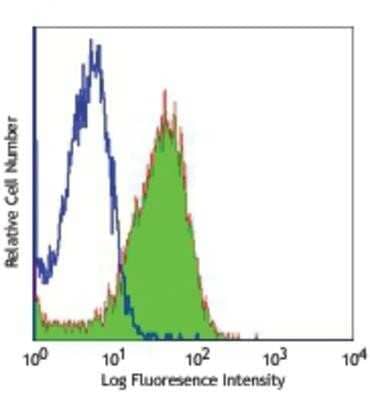

Flow Cytometry: F4/80 Antibody (BM8) [NBP1-60140]

Flow Cytometry: F4/80 Antibody (BM8) [NBP1-60140]

Flow Cytometry: F4/80 Antibody (BM8) [NBP1-60140] - Splenocytes isolated from a IL1R-/- mouse (IL1b receptor KO) were stained with and CD45-e450 (1:100 in FACS buffer) for 30 minutes. Cells were then washed and analyzed by flow cytometry. Left panel shows the isotype control. This image was submitted via a customer review. Image from the PE version of this antibody.
Immunohistochemistry-Frozen: F4/80 Antibody (BM8) [NBP1-60140]

Immunohistochemistry-Frozen: F4/80 Antibody (BM8) [NBP1-60140]

Immunohistochemistry-Frozen: F4/80 Antibody (BM8) [NBP1-60140] - Red: F4/80, Green: CD31/PECAM-1, Blue: DAPI+ nuclei. Frozen mouse lung tissues of WT B6 and IL1R--/- (knockout) mice were blocked with 1% BSA in PBS and were double stained with PE-conjugated F4/80 and Alex647-conjugated CD31/PECAM-1 antibody (MEC 7.46) for 2 hours at the room temperature. This image was submitted via a customer review. Image from the PE version of this antibody.
Immunohistochemistry: F4/80 Antibody (BM8) [NBP1-60140]

Immunohistochemistry: F4/80 Antibody (BM8) [NBP1-60140]

Immunohistochemistry: F4/80 Antibody (BM8) [NBP1-60140] - Expression on macrophages in mouse liver. Staining of frozen tissue section with antibody BM8.
View 1 more images

Applications for F4/80 Antibody (BM8)

Application
Recommended Usage

Flow Cytometry

1:10-1:1000

Immunohistochemistry

1:10-1:500

Immunohistochemistry-Frozen

1:10-1:500

Immunohistochemistry-Paraffin

1:10-1:500

Western Blot

1:100-1:2000
Application Notes
This antibody works in Flow Cytometry, Immunohistochemistry-Frozen, Immunohistochemistry-Paraffin, Western Blot. The typical starting working dilution is 1:50. F4/80 is sensitive to 2-mercaptoethanol. The antibody requires proteinase K treatment of paraffin sections. Use in Immunocytochemistry/immunofluorescence reported in scientific literature (PMID : 28937879).

Formulation, Preparation, and Storage

Purification

Protein G purified

Formulation

0.2 um filtered solution in PBS and 0.1% BSA

Preservative

0.02% Sodium Azide

Concentration

0.1 mg/ml

Shipping

The product is shipped with polar packs. Upon receipt, store it immediately at the temperature recommended below.

Stability & Storage

Store at 4C.

Background: F4/80

F4/80 antigen is a cell surface glycoprotein that is the murine homolog of human EGF-like module-containing mucin-like hormone receptor-like 1 (EMR1) (1,2). Specifically, F4/80 (EMR1) is one of five members belonging to the adhesion G-coupled receptor (ADGRE) subfamily, also known as the epidermal growth factor seven transmembrane (EGF-TM7) receptors (1,2). F4/80 is expressed by the myeloid lineage including in eosinophils, monocytes, macrophages, and myeloid dendritic cells (1,2). The molecular structure of F4/80 contains an EGF-like extracellular domain and a seven transmembrane motif, with a theoretical molecular weight of 160 kDa (1).

Depending on factors such as differentiation, activation, and location, the level of F4/80 expression can vary between cell-types (1,2). For example, peritoneal macrophages are subdivided based on morphology and expression with large peritoneal macrophages having high levels of F4/80 and small peritoneal macrophages having low F4/80 expression (1). Furthermore, splenic macrophages are classified based on location (red pulp, marginal zone, and white pulp) and F4/80 expression level varies within these populations as well; the red pulp macrophages have high levels of F4/80 and CD68 by comparison (1). Originally, the F4/80 monoclonal antibody was generated for a macrophage-specific surface antigen, however F4/80 staining is also observed in other hematopoietic cell populations, thus other immune cell markers should be used in conjunction with F4/80 to distinguish between different populations (1). Though the full extent of F4/80 ligands and biological functions remains elusive, studies have suggested that F4/80 is critical for macrophage-natural killer cell interaction and cytokine release (1,2). Additionally, a study of anterior chamber-associated immune deviation (ACAID) indicated a possible role for F4/80 in the generation of regulatory T cells (1,2).

References

1. Dos Anjos Cassado A. (2017). F4/80 as a Major Macrophage Marker: The Case of the Peritoneum and Spleen. Results and Problems in Cell Differentiation. https://doi.org/10.1007/978-3-319-54090-0_7

2. Hamann, J., Hsiao, C. C., Lee, C. S., Ravichandran, K. S., & Lin, H. H. (2016). Adhesion GPCRs as Modulators of Immune Cell Function. Handbook of Experimental Pharmacology. https://doi.org/10.1007/978-3-319-41523-9_15

Alternate Names

DD7A5-7, Gpf480, Ly71

Gene Symbol

Adgre1

Additional F4/80 Products

Product Documents for F4/80 Antibody (BM8)

Product Datasheets

Certificate of Analysis

To download a Certificate of Analysis, please enter a lot number in the search box below.

Download SDS

Product Specific Notices for F4/80 Antibody (BM8)

This product is for research use only and is not approved for use in humans or in clinical diagnosis. Primary Antibodies are guaranteed for 1 year from date of receipt.
