Fatty Acid Synthase/FASN Antibody

Western Blot: Fatty Acid Synthase/FASN Antibody [NB400-114]

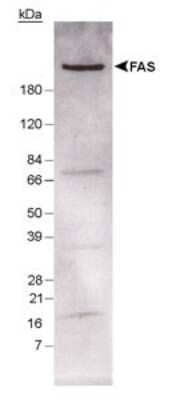

Western Blot: Fatty Acid Synthase/FASN Antibody [NB400-114] - Analysis of Fatty Acid Synthase, using NB400-114. Samples: 50 ug of total mouse liver lysate.

Immunocytochemistry/ Immunofluorescence: Fatty Acid Synthase/FASN Antibody [NB400-114]

Immunocytochemistry/Immunofluorescence: Fatty Acid Synthase/FASN Antibody [NB400-114] - Fatty acid synthesis requirement for CHIKV life cycle. Confocal section of CHIKV replicon-infected HeLa cells labelled for FASN, dsRNA and 4,6-diamidino-2-phenylindole (DAPI; blue). Scale bar, 10 um. Image collected and cropped by CiteAb from the following publication (https://www.nature.com/doifinder/10.1038/ncomms11320), licensed under a CC-BY license.

Knockdown Validated: Fatty Acid Synthase/FASN Antibody [NB400-114]

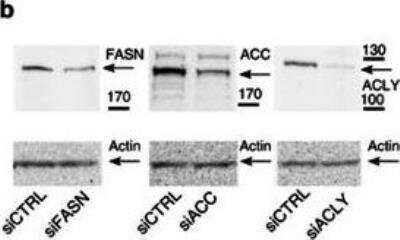

Knockdown Validated: Fatty Acid Synthase/FASN Antibody [NB400-114] - Fatty acid synthesis requirement for CHIKV life cycle. Western blot showing silencing efficiency of FASN-, ACC- and ACLY-specific siRNAs on CHIKV replication (n=10 for each data set).

Western Blot: Fatty Acid Synthase/FASN Antibody [NB400-114] -

Western Blot: Fatty Acid Synthase/FASN Antibody [NB400-114] - Fatty acid synthesis requirement for CHIKV life cycle.(a) Impact of FASN or ACLY knockdown on CHIKV replication. Closed & open symbols indicate replicates from the primary screen & during validation, respectively. (b) Western blot showing silencing efficiency of siRNAs used in c. (c) Impact of FASN-, ACC- & ACLY-specific siRNAs on CHIKV replication (n=10 for each data set). (d) Confocal section of CHIKV replicon-infected HeLa cells labelled for FASN, dsRNA & 4,6-diamidino-2-phenylindole (DAPI; blue). Scale bar, 10 μm. (e) Co-localization analysis of cells labelled as in d & in Supplementary Fig. 3b, plotted as Pearson's coefficient per cell. Each symbol corresponds to a cell stack from three independent experiments (n=29 cells for FASN, 30 cells for ACC & 31 cells for ACLY); median values shown in red. (f) Effect of FASN (cerulenin, n=12 for each data set), ACC (TOFA, n=11 for each data set) & ACLY (BMS-303141 n=11 for each data set) inhibitors on CHIKV replication. (g) Real-time cell toxicity assay performed on HeLa cells (n=3 for each point). Excepted for b & d where representative images are shown & for g where the mean±s.d. is shown for each point of a representative experiment, all data represent the means±s.e.m. of three independent experiments analysed using one-way analysis of variance with Tukey's post test (*P<0.05; **P<0.01; ***P<0.001; NSP≥0.05). NS, not significant. Image collected & cropped by CiteAb from the following publication (https://pubmed.ncbi.nlm.nih.gov/27177310), licensed under a CC-BY license. Not internally tested by Novus Biologicals.
