FoxP2 Antibody

Immunohistochemistry-Paraffin: FoxP2 Antibody [NBP1-86671]

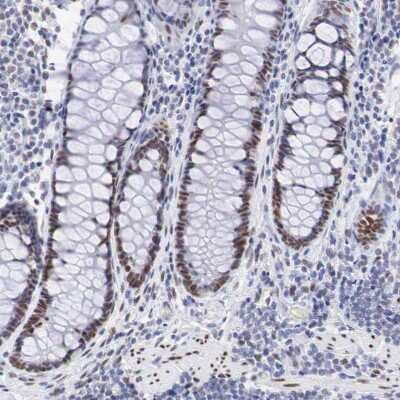

Immunohistochemistry-Paraffin: FoxP2 Antibody [NBP1-86671] - Staining of human rectum shows moderate nuclear positivity in glandular cells.

Immunohistochemistry-Paraffin: FoxP2 Antibody [NBP1-86671]

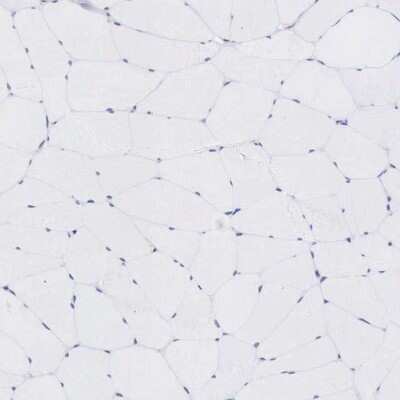

Immunohistochemistry-Paraffin: FoxP2 Antibody [NBP1-86671] - Staining of human skeletal muscle shows no positivity in striated muscle fibers as expected.

Immunohistochemistry-Paraffin: FoxP2 Antibody [NBP1-86671]

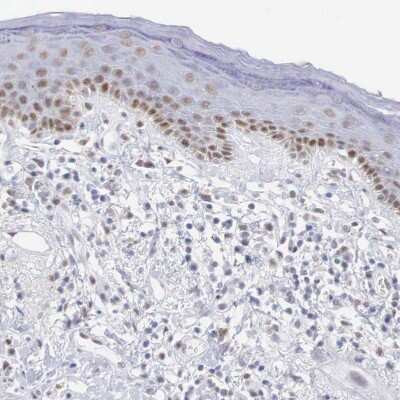

Immunohistochemistry-Paraffin: FoxP2 Antibody [NBP1-86671] - Staining of human skin shows moderate nuclear positivity in deep epidermal cells.

Immunocytochemistry/ Immunofluorescence: FoxP2 Antibody [NBP1-86671] -

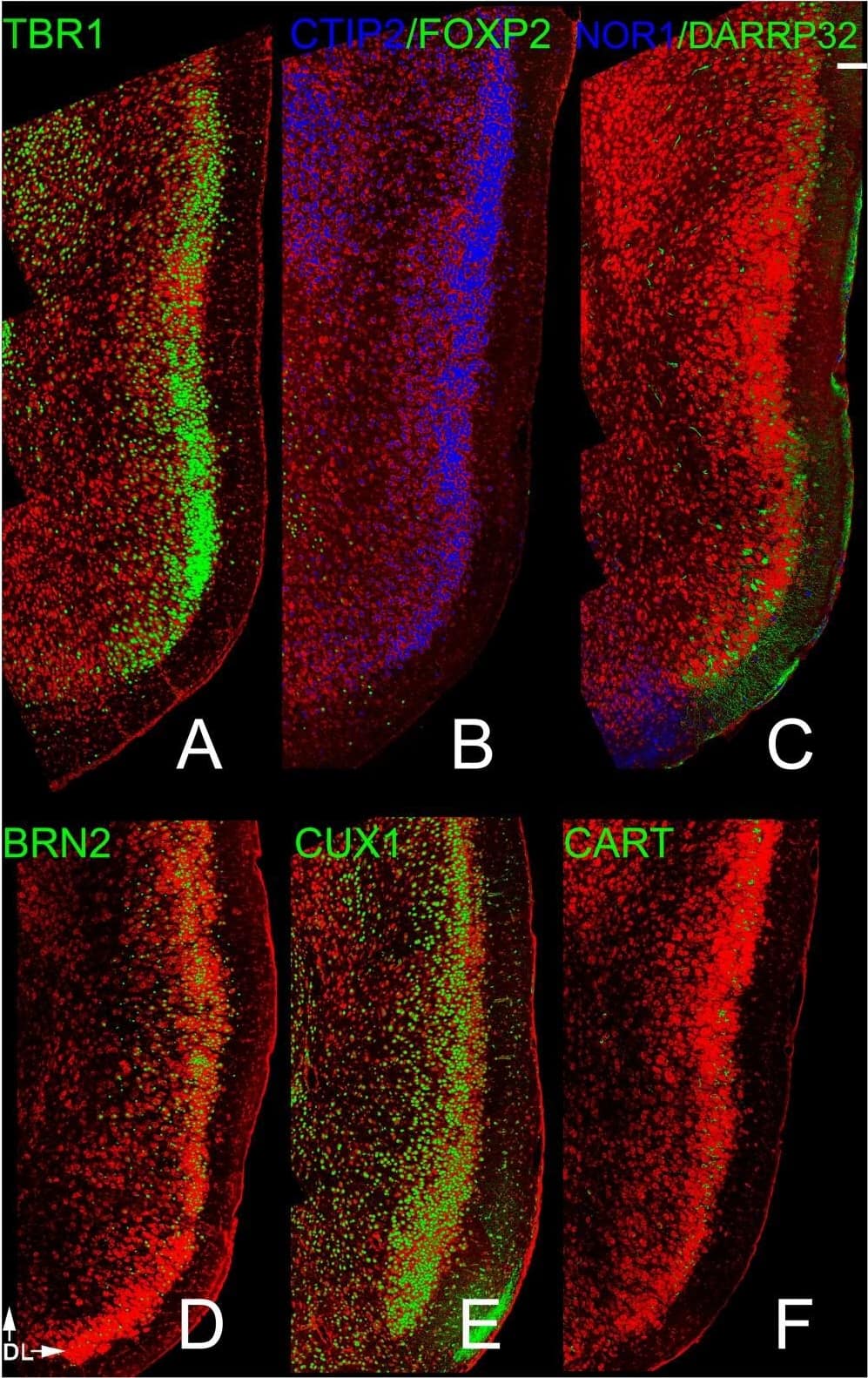

Immunocytochemistry/ Immunofluorescence: FoxP2 Antibody [NBP1-86671] - Patterns of neocortical layer markers in the PPC.A) TBR-1 heavily labeled cells in Layer 2 as well as scattered cells in Layer 3. As in the APC many cells in layers 2 & 3 exhibited the deep marker CTIP2 (B). Only widely scattered cells exhibited FOXP2 & DAARP 32 & NOR1 (B,C). The other three makers exhibited very different patterns: CUX 1 staining (E) was strong throughout layers 2 & 3, BRN2 staining much more modest in the same regions, CART was restricted to the middle of layer 2 (F). Scale bar = 200μm. Dorsal to top, lateral to right. Image collected & cropped by CiteAb from the following publication (https://dx.plos.org/10.1371/journal.pone.0138541), licensed under a CC-BY license. Not internally tested by Novus Biologicals.

Immunocytochemistry/ Immunofluorescence: FoxP2 Antibody [NBP1-86671] -

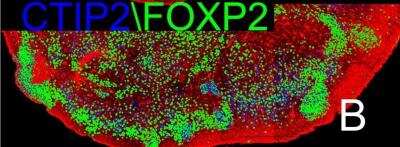

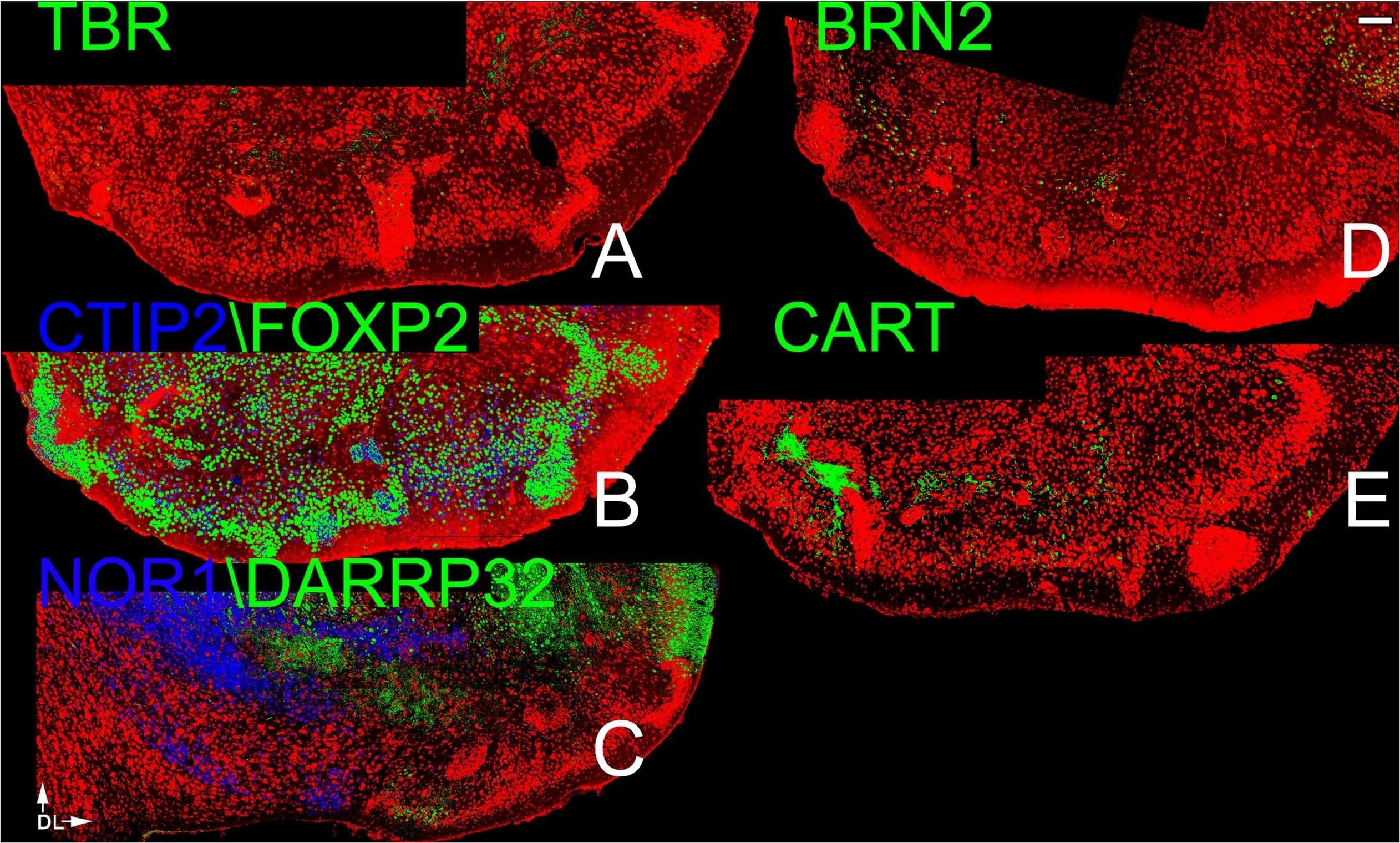

Immunocytochemistry/ Immunofluorescence: FoxP2 Antibody [NBP1-86671] - Patterns of neocortical layer markers in the OT.A) TBR-1 (A), BRN2 (D) & CART (E) were only found scattered in the very deepest regions of the OT. All four of the deep laminar markers heavily labeled the region. Both CTIP2 & FOXP2 cells were broadly present in Layer 2 & scattered in Layer 3 (Fig 6b). On the medial side most FOXP2 cells coexpressed CTIP2 but the percentage of cells with both markers was reduced laterally. DARRP-32 cells were dense on the lateral side near the APC & in deep regions of the OT, while NOR1 cells were found in Layer 2 in the medial OT (Fig 6c). Scale bar = 200μm. Dorsal to top, lateral to right. Image collected & cropped by CiteAb from the following publication (https://dx.plos.org/10.1371/journal.pone.0138541), licensed under a CC-BY license. Not internally tested by Novus Biologicals.

Immunocytochemistry/ Immunofluorescence: FoxP2 Antibody [NBP1-86671] -

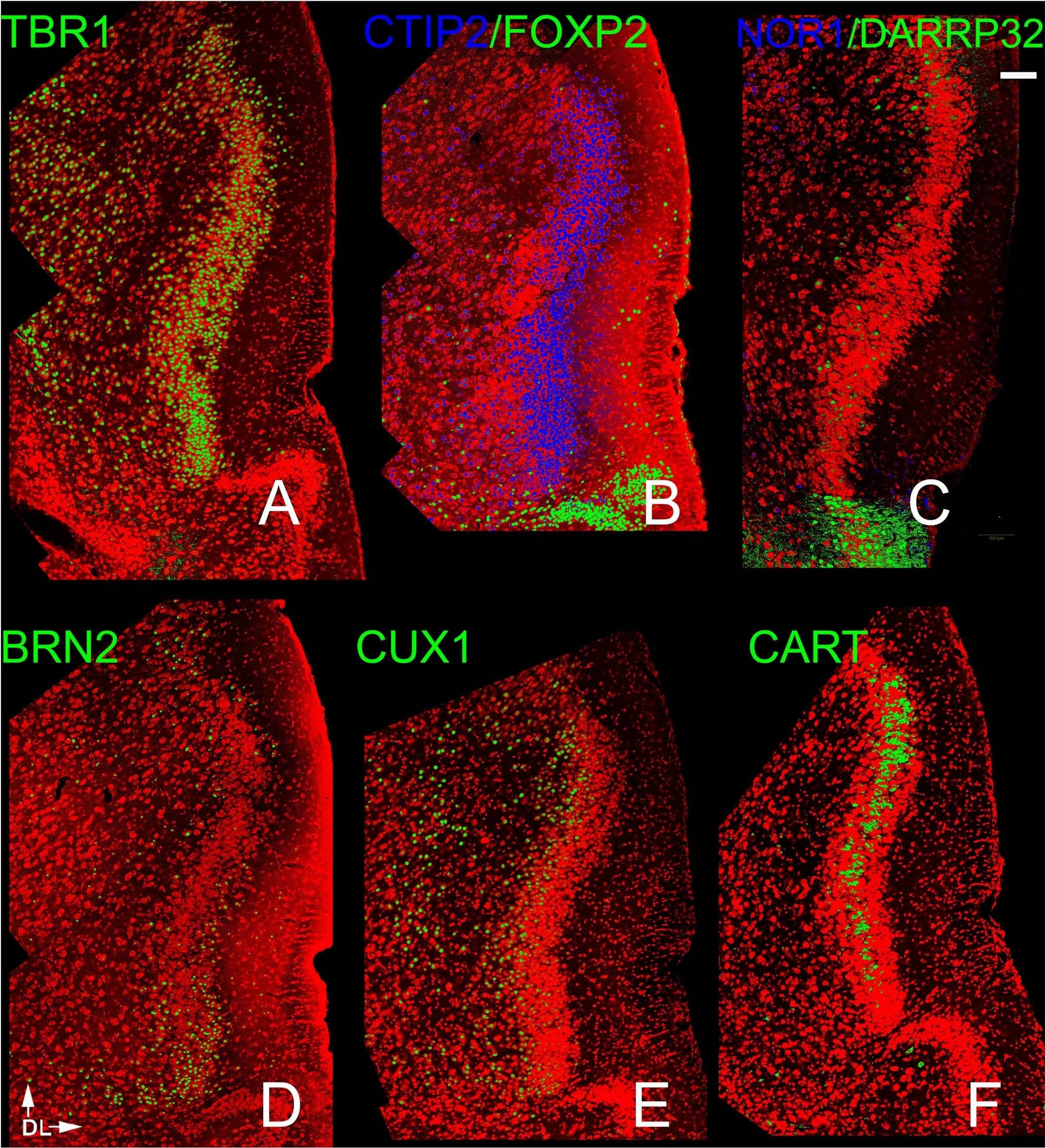

Immunocytochemistry/ Immunofluorescence: FoxP2 Antibody [NBP1-86671] - Patterns of neocortical layer markers in the APC.A) TBR-1 heavily labeled cells in Layer 2 as well as scattered cells in Layer 3. Of the 4 deep layer markers (B,C), only CTIP2 exhibited dense staining. The other three (FOXP2, NOR1 & DAARP32) labeled sparse number in Layers 1–3. The dense staining for FOXP2 & DAARP32 seen at the bottom of the figures sharply demarcates the APC from the more ventral OT. The other three makers exhibited very different patterns: BRN2 staining was found more in the ventral APC (D), CUX 1 in the deeper portions of both Layer 2 & 3 (E), & CART in the middle of Layer 2(F). Scale bar = 200μm. Dorsal to top, lateral to right. Image collected & cropped by CiteAb from the following publication (https://dx.plos.org/10.1371/journal.pone.0138541), licensed under a CC-BY license. Not internally tested by Novus Biologicals.

Immunocytochemistry/ Immunofluorescence: FoxP2 Antibody [NBP1-86671] -

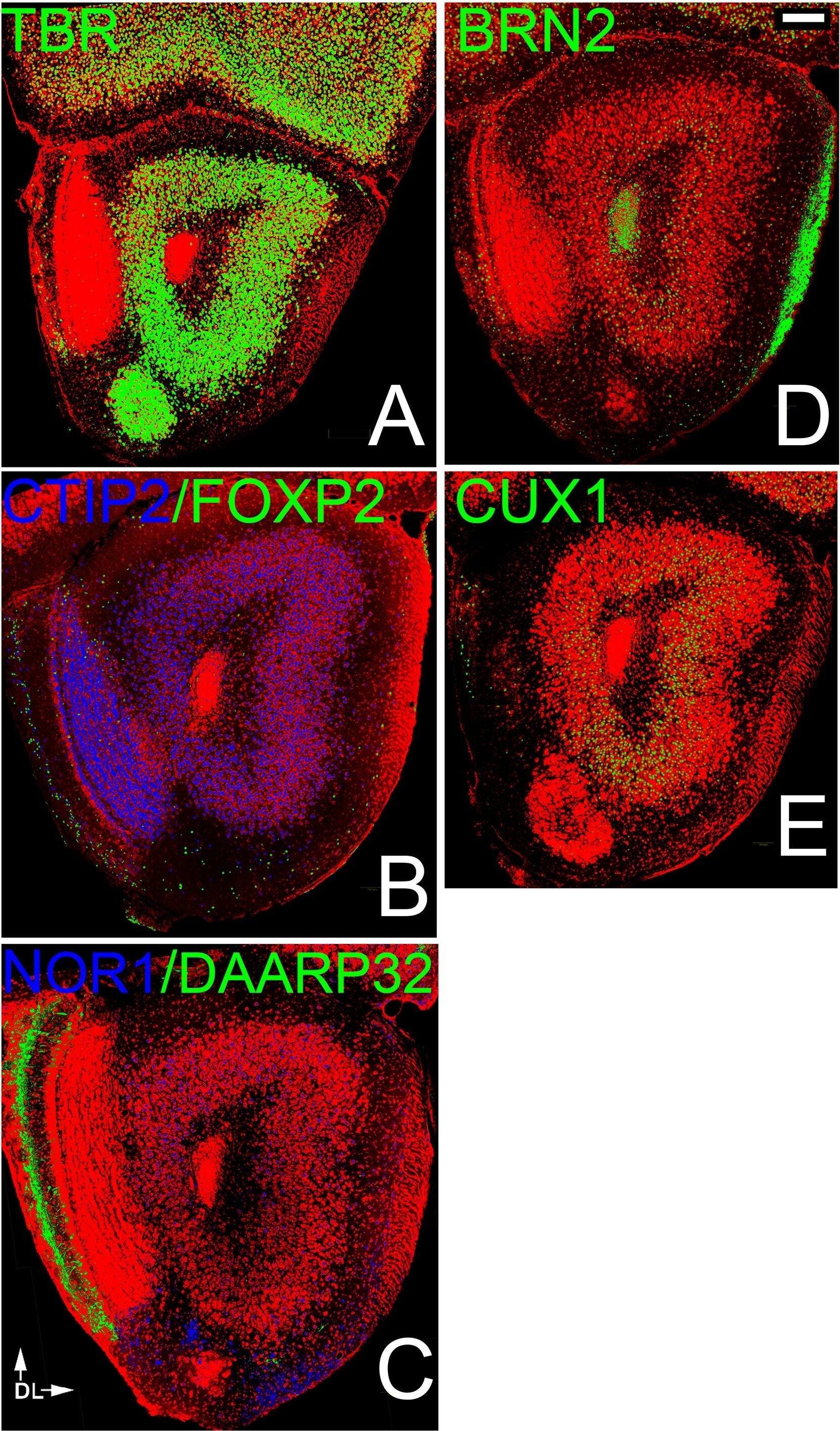

Immunocytochemistry/ Immunofluorescence: FoxP2 Antibody [NBP1-86671] - Patterns of neocortical layer markers in the AONpP.A). TBR1-labelled cells were found throughout Layer 2 of the AONpP as well as in the tenia tecta & mitral cell layer of the OB. B, C) Deep markers were differentially distributed in the region. Layer 2 exhibited dense & evenly-spread CTIP2-positive cells (Fig 3b), while NOR1 was found primarily in the dorsal portion of the structure (Fig 3c, top) Cells expressing the other two marker were rare & found primarily in layer 1: DARRP-32 (note dense staining in the glomerular layer of the OB at left, an area containing large numbers of dopaminergic interneurons, Fig 3c; Liu et al, 2013) & FOXP2 (most often found near the OB, Fig 3b). CTIP2 stained cells were also found in layer 1 but never in cells that expressed one of the other markers. The superficial markers were also differentially distributed. Both BRN2 (Fig 3d) & CUX1 (Fig 3e) were observed primarily in deep cells (except in pars medialis, where CUX1-labeled cells spanned the entire region) with highest densities in the region under the LOT (pars lateralis). All CUX1 cells also expressed BRN2, & over 90% of CUX1 & BRN2 cells also expressed CTIP2. The anti-BRN2 antibody also labeled the LOT (right) & RMS (core of the olfactory peduncle). Scale bar = 200μm. Dorsal to top, lateral to right. Image collected & cropped by CiteAb from the following publication (https://dx.plos.org/10.1371/journal.pone.0138541), licensed under a CC-BY license. Not internally tested by Novus Biologicals.
