Human Lyp Antibody

R&D Systems, part of Bio-Techne | Catalog # AF3428

R&D Systems, part of Bio-Techne
Catalog #
Availability
Size / Price
Qty
Loading...
AF3428
AF3428-SP

Key Product Details

Species Reactivity

Validated:

Human

Cited:

Human, Primate - Chlorocebus pygerythrus (Vervet Monkey)

Applications

Validated:

Immunocytochemistry, Simple Western, Western Blot

Cited:

Co-Immunoprecipitation, Immunoprecipitation, Western Blot

Label

Unconjugated

Antibody Source

Polyclonal Goat IgG

Product Specifications

Immunogen

E. coli-derived recombinant human Lyp
Ser306-Ser684
Accession # Q9Y2R2

Specificity

Detects human Lyp in Western blots.

Clonality

Polyclonal

Host

Goat

Isotype

IgG

Scientific Data Images for Human Lyp Antibody

Detection of Human Lyp antibody by Western Blot.

Detection of Human Lyp by Western Blot.

Western blot shows lysates of Daudi human Burkitt's lymphoma cell line and Ramos human Burkitt's lymphoma cell lines. PVDF membrane was probed with 0.3 µg/mL of Goat Anti-Human Lyp Antigen Affinity-purified Polyclonal Antibody (Catalog # AF3428) followed by HRP-conjugated Anti-Goat IgG Secondary Antibody (Catalog # HAF109). A specific band was detected for Lyp at approximately 108 kDa (as indicated). This experiment was conducted under reducing conditions and using Immunoblot Buffer Group 1.
Lyp antibody in Human PBMCs by Immunocytochemistry (ICC).

Lyp in Human PBMCs.

Lyp was detected in immersion fixed human peripheral blood mononuclear cells (PBMCs) using Goat Anti-Human Lyp Antigen Affinity-purified Polyclonal Antibody (Catalog # AF3428) at 15 µg/mL for 3 hours at room temperature. Cells were stained using the NorthernLights™ 557-conjugated Anti-Goat IgG Secondary Antibody (red; Catalog # NL001) and counterstained with DAPI (blue). Specific staining was localized to cytoplasmic. View our protocol for Fluorescent ICC Staining of Non-adherent Cells.

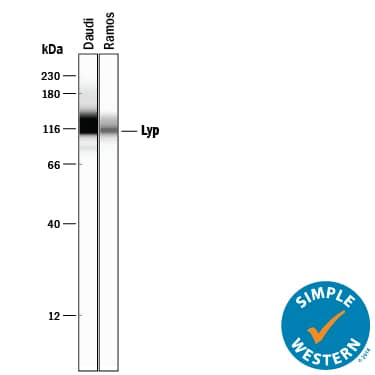

Detection of Human Lyp antibody by Simple WesternTM.

Detection of Human Lyp by Simple WesternTM.

Simple Western lane view shows lysates of Daudi human Burkitt's lymphoma cell line and Ramos human Burkitt's lymphoma cell line, loaded at 0.2 mg/mL. A specific band was detected for Lyp at approximately 116-118 kDa (as indicated) using 3 µg/mL of Goat Anti-Human Lyp Antigen Affinity-purified Polyclonal Antibody (Catalog # AF3428) followed by 1:50 dilution of HRP-conjugated Anti-Goat IgG Secondary Antibody (Catalog # HAF109). This experiment was conducted under reducing conditions and using the 12-230 kDa separation system.

Applications for Human Lyp Antibody

Application
Recommended Usage

Immunocytochemistry

5-15 µg/mL
Sample: Immersion fixed human peripheral blood mononuclear cells (PBMCs)

Simple Western

3 µg/mL
Sample: Daudi human Burkitt's lymphoma cell line and Ramos human Burkitt's lymphoma cell line

Western Blot

0.3 µg/mL
Sample: Daudi human Burkitt's lymphoma cell line and Ramos human Burkitt's lymphoma cell lines

Reviewed Applications

Read 2 reviews rated 4 using AF3428 in the following applications:

Formulation, Preparation, and Storage

Purification

Antigen Affinity-purified

Reconstitution

Reconstitute at 0.2 mg/mL in sterile PBS. For liquid material, refer to CoA for concentration.

Reconstitution Buffer Available:
Size / Price
Qty
Loading...

Formulation

Lyophilized from a 0.2 μm filtered solution in PBS with Trehalose. *Small pack size (SP) is supplied either lyophilized or as a 0.2 µm filtered solution in PBS.

Shipping

Lyophilized product is shipped at ambient temperature. Liquid small pack size (-SP) is shipped with polar packs. Upon receipt, store immediately at the temperature recommended below.

Stability & Storage

Use a manual defrost freezer and avoid repeated freeze-thaw cycles.
  • 12 months from date of receipt, -20 to -70 °C as supplied.
  • 1 month, 2 to 8 °C under sterile conditions after reconstitution.
  • 6 months, -20 to -70 °C under sterile conditions after reconstitution.

Background: Lyp

Lymphoid phosphatase (Lyp), also called LyPTP, Protein Tyrosine Phosphatase, Nonreceptor-type 22 (PTPN22), and PEST-domain Phosphatase (PEP), dephosphorylates tyrosine residues in proteins. Found primarily in bone marrow and lymphoid cell lines, an R620W gain-of-function mutation in Lyp has been associated with susceptibility to autoimmune diseases such as type I diabetes, rheumatoid arthritis, and lupus erythematosus. Mature PEP knockout mice have an excess of CD8 positive T-cells and an exaggerated antigen-induced proliferative response.

Long Name

Lymphoid Phosphatase

Alternate Names

LyPTP, PEP, PTPN22, PTPN8 (former)

Entrez Gene IDs

26191 (Human); 19260 (Mouse); 295338 (Rat)

Gene Symbol

PTPN22

UniProt

Additional Lyp Products

Product Documents for Human Lyp Antibody

Certificate of Analysis

To download a Certificate of Analysis, please enter a lot number in the search box below.

Note: Certificate of Analysis not available for kit components.
