Mouse Ryk Antibody
R&D Systems, part of Bio-Techne | Catalog # AF4649
Key Product Details
Species Reactivity
Validated:
Mouse
Cited:
Mouse
Applications
Validated:
CyTOF-ready, Flow Cytometry, Immunocytochemistry, Western Blot
Cited:
Flow Cytometry, Western Blot
Label
Unconjugated
Antibody Source
Polyclonal Sheep IgG
Product Specifications
Immunogen
Mouse myeloma cell line NS0-derived recombinant mouse Ryk
Arg35-Arg211
Accession # Q01887
Arg35-Arg211
Accession # Q01887
Specificity
Detects mouse and human Ryk in direct ELISAs and Western blots.
Clonality
Polyclonal
Host
Sheep
Isotype
IgG
Scientific Data Images for Mouse Ryk Antibody
Detection of Mouse Ryk by Western Blot.
Western blot shows lysates of RAW 264.7 mouse monocyte/macrophage cell line, NIH-3T3 mouse embryonic fibroblast cell line, and EL-4 mouse lymphoblast cell line. PVDF membrane was probed with 1 µg/mL of Sheep Anti-Mouse Ryk Antigen Affinity-purified Polyclonal Antibody (Catalog # AF4649) followed by HRP-conjugated Anti-Sheep IgG Secondary Antibody (Catalog # HAF016). A specific band was detected for Ryk at approximately 70 kDa (as indicated). This experiment was conducted under reducing conditions and using Immunoblot Buffer Group 8.

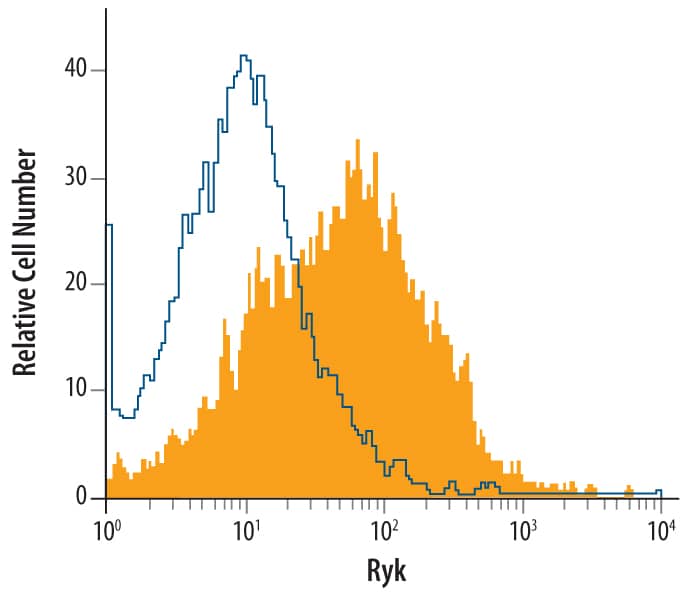

Detection of Ryk in RAW 264.7 Mouse Cell Line by Flow Cytometry.
RAW 264.7 mouse monocyte/macrophage cell line was stained with Sheep Anti-Mouse Ryk Affinity-purified Polyclonal Antibody (Catalog # AF4649, filled histogram) or isotype control antibody (Catalog # 5-001-A, open histogram), followed by Allophycocyanin-conjugated Anti-Sheep IgG Secondary Antibody (Catalog # F0127).
Ryk in RAW 264.7 Mouse Cell Line.
Ryk was detected in immersion fixed RAW 264.7 mouse monocyte/macrophage cell line using Sheep Anti-Mouse Ryk Antigen Affinity-purified Polyclonal Antibody (Catalog # AF4649) at 10 µg/mL for 3 hours at room temperature. Cells were stained using the NorthernLights™ 557-conjugated Anti-Sheep IgG Secondary Antibody (red; Catalog # NL010) and counterstained with DAPI (blue). Specific staining was localized to cell surfaces and cytoplasm. View our protocol for Fluorescent ICC Staining of Non-adherent Cells.Applications for Mouse Ryk Antibody
Application
Recommended Usage
CyTOF-ready
Ready to be labeled using established conjugation methods. No BSA or other carrier proteins that could interfere with conjugation.
Flow Cytometry
2.5 µg/106 cells
Sample: RAW 264.7 mouse monocyte/macrophage cell line
Sample: RAW 264.7 mouse monocyte/macrophage cell line
Immunocytochemistry
5-15 µg/mL
Sample: Immersion fixed RAW 264.7 mouse monocyte/macrophage cell line and NIH-3T3 mouse embryonic fibroblast cell line
Sample: Immersion fixed RAW 264.7 mouse monocyte/macrophage cell line and NIH-3T3 mouse embryonic fibroblast cell line
Western Blot
1 µg/mL
Sample: RAW 264.7 mouse monocyte/macrophage cell line, NIH-3T3 mouse embryonic fibroblast cell line, and EL-4 mouse lymphoblast cell line
Sample: RAW 264.7 mouse monocyte/macrophage cell line, NIH-3T3 mouse embryonic fibroblast cell line, and EL-4 mouse lymphoblast cell line
Please Note: Optimal dilutions of this antibody should be experimentally determined.
Formulation, Preparation, and Storage
Purification
Antigen Affinity-purified
Reconstitution
Reconstitute at 0.2 mg/mL in sterile PBS. For liquid material, refer to CoA for concentration.
Formulation
Lyophilized from a 0.2 μm filtered solution in PBS with Trehalose. *Small pack size (SP) is supplied either lyophilized or as a 0.2 µm filtered solution in PBS.
Shipping
Lyophilized product is shipped at ambient temperature. Liquid small pack size (-SP) is shipped with polar packs. Upon receipt, store immediately at the temperature recommended below.
Stability & Storage
Use a manual defrost freezer and avoid repeated freeze-thaw cycles.
- 12 months from date of receipt, -20 to -70 °C as supplied.
- 1 month, 2 to 8 °C under sterile conditions after reconstitution.
- 6 months, -20 to -70 °C under sterile conditions after reconstitution.
Background: Ryk
Ryk (related to tyrosine (Y) kinase; also VIK and MRK) is a member of the tyrosine protein kinase family. It is a type I transmembrane glycoprotein that binds Wnt and forms a Wnt receptor complex with frizzled. In this capacity, it serves as a link between Wnt and Dishevelled. Mouse Ryk is 594 amino acids (aa) in length. It contains a 177 aa extracellular region (aa 35‑211) that shows one WIF-1-like domain (aa 51‑180), and a cytoplasmic region that possesses a nonfunctional Ser/Thr protein kinase domain (aa 318‑581). There is one alternate start site at Met117. Over aa 35‑211, mouse Ryk is 94% aa identical to human Ryk, and shows absolute (100%) aa identity to rat Ryk.
Long Name
Receptor Type Tyrosine Protein Kinase RYK
Alternate Names
JTK5
Gene Symbol
RYK
UniProt
