NOD2 Antibody (2D9) - Azide and BSA Free

Novus Biologicals, part of Bio-Techne | Catalog # NBP2-80883

Novus Biologicals, part of Bio-Techne
Catalog #
Availability
Size / Price
Qty
NBP2-80883
Print Quote
Bulk Order
Forumulation
Catalog #
BSA Free
NB100-524
View Product
100% Guarantee

Key Product Details

Species Reactivity

Validated:

Human, Mouse

Applications

CyTOF-ready, Flow (Intracellular), Flow Cytometry, Immunocytochemistry/ Immunofluorescence, Immunohistochemistry, Immunohistochemistry-Frozen, Immunohistochemistry-Paraffin, Immunoprecipitation, Western Blot

Label

Unconjugated

Antibody Source

Monoclonal Mouse IgG1 Clone # 2D9

Format

Azide and BSA Free

Concentration

1 mg/ml

View all NOD2 Antibodies »

Product Summary for NOD2 Antibody (2D9) - Azide and BSA Free

Immunogen

Recombinant human NOD2 protein corresponding to residues 28-301. [UniProt# Q9HC29]

Localization

Cytoplasmic

Clonality

Monoclonal

Host

Mouse

Isotype

IgG1

Theoretical MW

110 kDa.
Disclaimer note: The observed molecular weight of the protein may vary from the listed predicted molecular weight due to post translational modifications, post translation cleavages, relative charges, and other experimental factors.

Scientific Data Images for NOD2 Antibody (2D9) - Azide and BSA Free

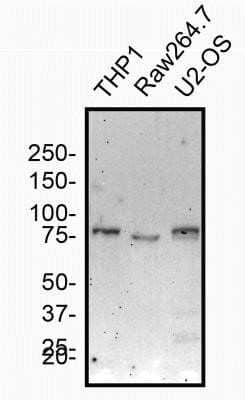

Western Blot: NOD2 Antibody (2D9)Azide and BSA Free [NBP2-80883]

Western Blot: NOD2 Antibody (2D9)Azide and BSA Free [NBP2-80883]

Western Blot: NOD2 Antibody (2D9) - Azide and BSA Free [NBP2-80883] - Whole cell protein from THP-1 cells was separated on a 7.5% gel by SDS-PAGE, transferred to PVDF membrane and blocked in 5% non-fat milk in TBST. The membrane was probed with 2 ug/ml anti-NOD2 in 1% milk, and detected with an anti-mouse HRP secondary antibody using chemiluminescence. Image from the standard format of this antibody.
Immunohistochemistry: NOD2 Antibody (2D9) - Azide and BSA Free [NBP2-80883]

Immunohistochemistry: NOD2 Antibody (2D9) - Azide and BSA Free [NBP2-80883]

Immunohistochemistry: NOD2 Antibody (2D9) - Azide and BSA Free [NBP2-80883] - Overlay of NOD2-DyLight 488 (green) with phase contrast of murine colon. Image from verified customer review. Image from the standard format of this antibody.

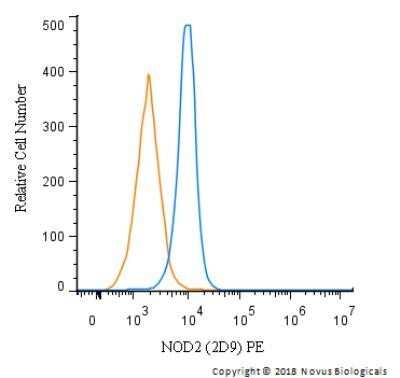

Flow Cytometry: NOD2 Antibody (2D9) - Azide and BSA Free [NBP2-80883]

Flow Cytometry: NOD2 Antibody (2D9) - Azide and BSA Free [NBP2-80883]

Flow Cytometry: NOD2 Antibody (2D9) - Azide and BSA Free [NBP2-80883] - An intracellular stain was performed on Jurkat cells with NOD2 (2D9) antibody NB100-524PE (blue) and a matched isotype control (orange). Cells were fixed with 4% PFA and then permeablized with 0.1% saponin. Cells were incubated in an antibody dilution of 2.5 ug/mL for 30 minutes. Both antibodies were directly conjugated to phycoerythrin.
View 3 more images

Applications for NOD2 Antibody (2D9) - Azide and BSA Free

Application
Recommended Usage

Flow Cytometry

reported in scientific literature (PMID 28241127)

Immunocytochemistry/ Immunofluorescence

1:50-1:500

Immunohistochemistry

1:10-1:500

Immunohistochemistry-Paraffin

1:10-1:500

Immunoprecipitation

1:10-1:500

Western Blot

1:100-1:2000
Application Notes
In WB, this antibody has been tested with NOD2 transfected 293T lysates and HT29 human colorectal adenocarcinoma lysates (endogenous detection has some background) where a band is seen at ~110 kDa. The observed molecular weight of the protein may vary from the listed predicted molecular weight due to post translational modifications, post translation cleavages, relative charges, and other experimental factors.
Please Note: Optimal dilutions of this antibody should be experimentally determined.

Formulation, Preparation, and Storage

Purification

Protein G purified

Formulation

PBS

Format

Azide and BSA Free

Preservative

No Preservative

Concentration

1 mg/ml

Shipping

The product is shipped with polar packs. Upon receipt, store it immediately at the temperature recommended below.

Stability & Storage

Store at 4C short term. Aliquot and store at -20C long term. Avoid freeze-thaw cycles.

Background: NOD2

The NOD2 (nucleotide-binding oligomerization domain containing 2) protein is expressed in the antigen-presenting cells (monocytes and macrophages) and in intestinal Paneth cells, keratinocytes, T cells, NK cells, and CD34+ stem cells. Alongwith Apaf-1 and CIITA, NOD2 belongs to NLR/NOD leucine-rich repeat containing protein family. NOD2 generally localizes to the cytoplasm from where it translocates to cell membranes, a mechanism suggested as important for its functionality. After interacting with CARD-CARD, NOD2 may bind/activate RIP2/RICK and this active NOD2:RIP2 complex then stimulates MAPK (JNK, ERK, p38), NF-kB, autophagy and antigen presentation. NOD2 has an ability to senses the presence of MDP (muramyl dipeptide), a breakdown product of peptidoglycan found in bacteria, and after recognition of intracellular bacteria, NOD2 pathway execute directing the secretion of antimicrobial peptides and cytokines/chemokines to induce innate immune clearance of the pathogen as well as to tailor the adaptive immune system to help fight the bacterial infection. Defects in NOD2 are the cause of Blau syndrome (BS), susceptibility to inflammatory bowel disease type 1 (IBD1) and sarcoidosis early-onset (EOS).

Alternate Names

BLAU, CARD15caspase recruitment domain protein 15, caspase recruitment domain family, member 15, Caspase recruitment domain-containing protein 15, CDACUG, CLR16.3, IBD1NLR family, CARD domain containing 2, Inflammatory bowel disease protein 1, NLRC2, NOD-like receptor C2, nucleotide-binding oligomerization domain 2, nucleotide-binding oligomerization domain containing 2, nucleotide-binding oligomerization domain, leucine rich repeat and CARD domaincontaining 2, nucleotide-binding oligomerization domain-containing protein 2, PSORAS1NOD2B

Gene Symbol

NOD2

Additional NOD2 Products

Product Documents for NOD2 Antibody (2D9) - Azide and BSA Free

Product Datasheets

Certificate of Analysis

To download a Certificate of Analysis, please enter a lot number in the search box below.

Download SDS

Product Specific Notices for NOD2 Antibody (2D9) - Azide and BSA Free

This product is for research use only and is not approved for use in humans or in clinical diagnosis. Primary Antibodies are guaranteed for 1 year from date of receipt.
