TGN46 Antibody [Alexa Fluor® 488]

Novus Biologicals, part of Bio-Techne | Catalog # NBP1-49643AF488

Novus Biologicals, part of Bio-Techne

Key Product Details

Species Reactivity

Human, Bovine, Monkey

Applications

Flow (Intracellular), Flow Cytometry, Immunoblotting, Immunocytochemistry/ Immunofluorescence, Immunohistochemistry, Immunohistochemistry-Paraffin, Knockout Validated, Western Blot

Label

Alexa Fluor 488 (Excitation = 488 nm, Emission = 515-545 nm)

Antibody Source

Polyclonal Rabbit IgG

Concentration

Please see the vial label for concentration. If unlisted please contact technical services.

Product Specifications

Immunogen

Partial recombinant protein made to an internal region of the human TGN46 protein (within residues 200-350).

Reactivity Notes

Monkey reactivity reported in scientific literature (PMID: 30135710). Bovine reactivity reported in scientific literature (PMID: 30135710).

Localization

Primarily in trans-Golgi network. Cycles between the trans-Golgi network and the cell surface returning via endosomes

Marker

TGN Marker

Clonality

Polyclonal

Host

Rabbit

Isotype

IgG

Scientific Data Images for TGN46 Antibody [Alexa Fluor® 488]

Immunocytochemistry/Immunofluorescence: TGN46 Antibody [Alexa Fluor® 488] [NBP1-49643AF488] - HeLa cells were fixed in 4% paraformaldehyde for 10 minutes and permeabilized in 0.05% Triton X-100 in PBS for 5 minutes. The cells were incubated with TGN46 Antibody conjugated to Alexa Fluor 488 (NBP1-49643AF488) at 2 ug/ml for 1 hour at room temperature. Nuclei were counterstained with DAPI (Blue). Cells were imaged using a 100X objective and digitally deconvolved.
Immunocytochemistry/Immunofluorescence: TGN46 Antibody [Alexa Fluor® 488] [NBP1-49643AF488] - HepG2 cells were fixed in 4% paraformaldehyde for 10 minutes and permeabilized in 0.05% Triton X-100 in PBS for 5 minutes. The cells were incubated with TGN46 Antibody conjugated to Alexa Fluor 488 (NBP1-49643AF488) at 5 ug/ml for 1 hour at room temperature. Nuclei were counterstained with DAPI (Blue). Cells were imaged using a 40X objective.

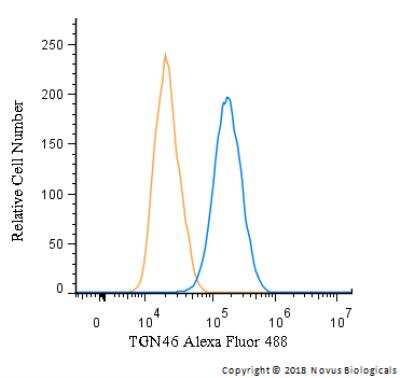

Flow (Intracellular): TGN46 Antibody [Alexa Fluor® 488] [NBP1-49643AF488] - TGN46 Antibody [Alexa Fluor 488] [NBP1-49643AF488] - An intracellular stain was performed on HepG2 cells with TGN46 Antibody NBP1-49643AF488 (Blue) and a matched isotype control (Orange). Cells were fixed with 4% PFA and then permeabilized with 0.1% saponin. Cells were incubated in an antibody dilution of 10 ug/mL for 30 minutes at room temperature. Both antibodies were conjugated to Alexa Fluor 488.

Applications for TGN46 Antibody [Alexa Fluor® 488]

Application
Recommended Usage

Flow (Intracellular)

Optimal dilutions of this antibody should be experimentally determined.

Flow Cytometry

Optimal dilutions of this antibody should be experimentally determined.

Immunoblotting

Optimal dilutions of this antibody should be experimentally determined.

Immunocytochemistry/ Immunofluorescence

Optimal dilutions of this antibody should be experimentally determined.

Immunohistochemistry

Optimal dilutions of this antibody should be experimentally determined.

Immunohistochemistry-Paraffin

Optimal dilutions of this antibody should be experimentally determined.

Knockout Validated

Optimal dilutions of this antibody should be experimentally determined.

Western Blot

Optimal dilutions of this antibody should be experimentally determined.
Application Notes
Optimal dilution of this antibody should be experimentally determined.

Reviewed Applications

Read 1 review rated 5 using NBP1-49643AF488 in the following applications:

Formulation, Preparation, and Storage

Purification

Immunogen affinity purified

Formulation

50mM Sodium Borate

Preservative

0.05% Sodium Azide

Concentration

Please see the vial label for concentration. If unlisted please contact technical services.

Shipping

The product is shipped with polar packs. Upon receipt, store it immediately at the temperature recommended below.

Stability & Storage

Store at 4C in the dark.

Background: TGN46

The Trans-Golgi network integral membrane protein 2 (TGOLN2) was designated TGN46 based on the predicted molecular mass (46kDa). However, TGN46 is a heavily glycosylated protein, so its molecular weight is often detected at a 110-120kDa. The TGN46 protein is widely expressed. It may be involved in regulating membrane traffic to and from trans-Golgi network, and has been reported as the best available marker for human trans-Golgi network. TGN46 contains a luminal domain, a membrane-spanning domain, and a cytoplasmic domain. The membrane-spanning and cytoplasmic domains contain the retention and retrieval signals, respectively, for localization in the TGN.

Alternate Names

TGN 46, TGN 48, TGN 51, TGN38, TGN-38, TGN38 homolog, TGN46, TGN-46, TGN48, TGN51, TGOLN 2, TGOLN2, trans golgi network 38, trans golgi network 46, Trans Golgi network integral membrane protein 2, Trans Golgi network integral membrane protein 2 [Precursor], Trans Golgi network protein (46 48 51kD isoforms), Trans golgi network protein 2, Trans Golgi network protein TGN51, Trans-Golgi network integral membrane protein 2, Trans-Golgi network protein 2, Trans-Golgi network protein TGN51, TTGN 2, TTGN2

Gene Symbol

TGOLN2

Additional TGN46 Products

Product Documents for TGN46 Antibody [Alexa Fluor® 488]

Certificate of Analysis

To download a Certificate of Analysis, please enter a lot number in the search box below.

Product Specific Notices for TGN46 Antibody [Alexa Fluor® 488]

Alexa Fluor (R) products are provided under an intellectual property license from Life Technologies Corporation. The purchase of this product conveys to the buyer the non-transferable right to use the purchased product and components of the product only in research conducted by the buyer (whether the buyer is an academic or for-profit entity). The sale of this product is expressly conditioned on the buyer not using the product or its components, or any materials made using the product or its components, in any activity to generate revenue, which may include, but is not limited to use of the product or its components: (i) in manufacturing; (ii) to provide a service, information, or data in return for payment; (iii) for therapeutic, diagnostic or prophylactic purposes; or (iv) for resale, regardless of whether they are resold for use in research. For information on purchasing a license to this product for purposes other than as described above, contact Life Technologies Corporation, 5791 Van Allen Way, Carlsbad, CA 92008 USA or outlicensing@lifetech.com. This conjugate is made on demand. Actual recovery may vary from the stated volume of this product. The volume will be greater than or equal to the unit size stated on the datasheet.

This product is for research use only and is not approved for use in humans or in clinical diagnosis. Primary Antibodies are guaranteed for 1 year from date of receipt.
