TOMM20 Antibody

Immunohistochemistry-Paraffin: TOMM20 Antibody [NBP1-81556]

Immunohistochemistry-Paraffin: TOMM20 Antibody [NBP1-81556] - Staining of human duodenum shows moderate to strong positivity in mitochondria in glandular cells.

Immunocytochemistry/ Immunofluorescence: TOMM20 Antibody [NBP1-81556]

Immunocytochemistry/Immunofluorescence: TOMM20 Antibody [NBP1-81556] - RPE1 cells were fixed with 4% PFA, permeablized and blocked in 2.5% BSA with 0.2% Triton-X. Primary antibody was diluted 1:200 in PBS containing 2.5% BSA overnight at 4 deg C. Cells were incubated with anti-rabbit secondary antibody and counterstained with hoescht 33342. Image was collected using Zeiss 780 LSM. Image submitted by a verified customer review.

Immunocytochemistry/ Immunofluorescence: TOMM20 Antibody [NBP1-81556]

Immunocytochemistry/Immunofluorescence: TOMM20 Antibody [NBP1-81556] - Staining of human cell line U-2 OS shows localization to mitochondria. Antibody staining is shown in green.

Immunohistochemistry-Paraffin: TOMM20 Antibody [NBP1-81556]

Immunohistochemistry-Paraffin: TOMM20 Antibody [NBP1-81556] - Staining of human endometrium shows moderate to strong positivity in mitochondria in glandular cells.

Immunohistochemistry-Paraffin: TOMM20 Antibody [NBP1-81556]

Immunohistochemistry-Paraffin: TOMM20 Antibody [NBP1-81556] - Staining of human prostate shows moderate to strong positivity in mitochondria in glandular cells.

Immunohistochemistry-Paraffin: TOMM20 Antibody [NBP1-81556]

Immunohistochemistry-Paraffin: TOMM20 Antibody [NBP1-81556] - Staining of human cerebral cortex shows moderate to strong positivity in mitochondria in neurons.

Simple Western: TOMM20 Antibody [NBP1-81556]

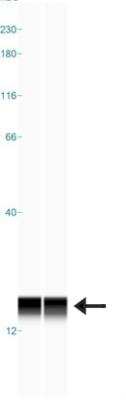

Simple Western: TOMM20 Antibody [NBP1-81556] - Simple Western lane view shows a specific band for TOMM20 in 0.2 mg/ml of RT-4 (Left) and U-251MG (Right) lysate. This experiment was performed under reducing conditions using the 12-230 kDa separation system.

Simple Western: TOMM20 Antibody [NBP1-81556]

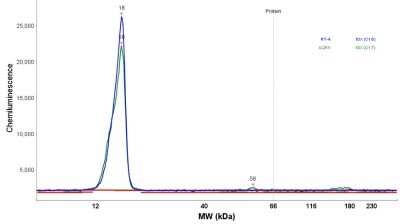

Simple Western: TOMM20 Antibody [NBP1-81556] - Electropherogram image(s) of corresponding Simple Western lane view. TOMM20 antibody was used at 1:30 dilution on RT-4 and U-251MG lysate(s).

Western Blot: TOMM20 Antibody [NBP1-81556] -

Western Blot: TOMM20 Antibody [NBP1-81556] - Quantification of LC3B-II & TOM20 proteins in WT & Ts1Cje hippocampus. Hippocampal proteins from WT & Ts1Cje mice pairs were analyzed in Western blot with anti-LC3B or anti-TOM20 antibody. A LC3B western blot showing WT & Ts1Cje littermate pairs analyzed & total protein loaded. The ratio LC3B-II/LC3B-I is shown as the mean ± SEM (WT: 0.8714 ± 0.04154; Ts1Cje: 0.6500 ± 0.06802; p = 0.0152, Student’s t-test, n = 7 for WT & n = 6 for Ts1Cje). B TOM20 western blot showing WT & Ts1Cje littermate pairs analyzed & total protein loaded. The signals were normalized to the corresponding total protein loaded & the mean ± SEM values are shown (WT: 1.024 ± 0.08799; Ts1Cje: 1.412 ± 0.1452; p = 0.0414, Student’s t-test, n = 7 animals per genotype) Image collected & cropped by CiteAb from the following publication (https://pubmed.ncbi.nlm.nih.gov/34034796), licensed under a CC-BY license. Not internally tested by Novus Biologicals.
