TRF-1 Antibody (57-6)

Western Blot: TRF-1 Antibody (57-6) [NB110-68281]

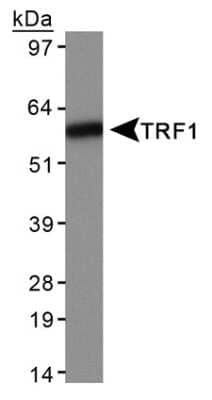

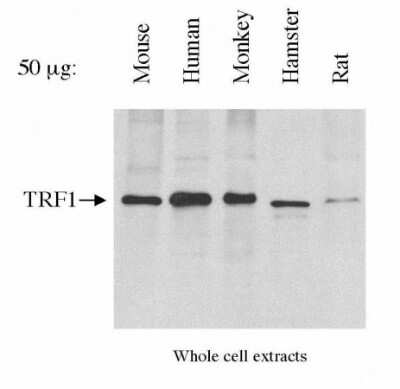

Western Blot: TRF-1 Antibody (57-6) [NB110-68281] - Detection of TRF1. 50 ug of total lysate each lane.

Flow Cytometry: TRF-1 Antibody (57-6) [NB110-68281]

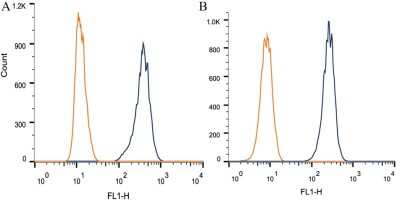

Flow Cytometry: TRF-1 Antibody (57-6) [NB110-68281] - Intracellular flow cytometric staining of 1 x 10^6 CHO (A) and HEK-293 (B) cells using TRF1 antibody (dark blue). Isotype control shown in orange. An antibody concentration of 1 ug/1x10^6 cells was used.

Simple Western: TRF-1 Antibody (57-6) [NB110-68281]

Simple Western: TRF-1 Antibody (57-6) [NB110-68281] - Image shows a specific band for TRF1 in 0.5 mg/mL of HeLa lysate. This experiment was performed under reducing conditions using the 12-230 kDa separation system.

Western Blot: TRF-1 Antibody (57-6) [NB110-68281] -

Western Blot: TRF-1 Antibody (57-6) [NB110-68281] - MicroRNA-214-3p (miR-214) antagomiR in rat vascular smooth muscle cells (A7r5) induced angiogenesis & proliferation but suppressed senescence. a Schematic of the protocol for transfection of A7r5 VSMCs with a miRNA antagomiR control (antagomiR NC) or a miR-214 antagomiR & processed at the indicated times. b The effects of miR-214 antagomiR on VSMC cell proliferation were tested by CCK-8 assay. c Angiogenetic mRNA expression levels of NOS3, VEGFA, CXCL12 & CXCR4 compared in cells transfected with antagomiR NC or miR-214 antagomiRs (n = 3). d Senescence-associated mRNA expression of TERT, TERF1 & TERF2 compared in cells transfected with antagomiR NC or miR-214 antagomiRs (n = 3). e, G Representative western blots depicting TERF1, TERF2, p16INK4, p21CIP1, pRB, & quaking expression in antagomiR NC or miR-214 antagomiRs transfected cells. f, h Normalized expression of TERF1, TERF2, p16INK4, p21CIP1, pRB, & quaking (n = 3). i Senescence-associated beta-galactosidase staining demonstrating senescence in SCR or miR-214 transfected cells. j Bar graphs show quantification of relative of SA-beta -gal positive cells (n = 3). Data are presented as the means ± SEM. * P < 0.05; ** P < 0.01; ns, non-significance (Two-tailed Student’s t-test) Image collected & cropped by CiteAb from the following publication (https://pubmed.ncbi.nlm.nih.gov/32410577), licensed under a CC-BY license. Not internally tested by Novus Biologicals.
