Recombinant Human HVEM/TNFRSF14 Fc Alexa Fluor® 647 Protein

R&D Systems, part of Bio-Techne | Catalog # AFR11177

R&D Systems, part of Bio-Techne
Catalog #
Availability
Size / Price
Qty
AFR11177-020
Print Quote
Bulk Order
100% Guarantee

Key Product Details

Learn more about FluorokinesTM Fluorescent-Labeled Proteins

Source

HEK293

Accession #

Q92956.3

Structure / Form

Disulfide-linked homodimer
Labeled with Alexa Fluor® 647.
Excitation Wavelength:  650 nm
Emission Wavelength:  668 nm

Conjugate

Alexa Fluor 647 (Excitation= 650 nm, Emission= 668 nm)

Applications

Bioactivity

View all HVEM/TNFRSF14 Proteins and Enzymes »

Product Specifications

Source

Human embryonic kidney cell, HEK293-derived human HVEM/TNFRSF14 protein
Human HVEM/TNFRSF14
(Pro37-Val202)
Accession # Q92956.3		 IEGRMD Human IgG1
(Pro100-Lys330)
N-terminus C-terminus

Purity

>90%, by SDS-PAGE visualized with Silver Staining and quantitative densitometry by Coomassie® Blue Staining.

Endotoxin Level

<1.0 EU per 1 μg of the protein by the LAL method.

N-terminal Sequence Analysis

Pro37

Predicted Molecular Mass

44 kDa

SDS-PAGE

55-75 kDa, under reducing conditions.

Activity

Measured by flow cytometry for its ability to bind anti-humanHVEM/TNFRSF14 Antibody conjugated beads. The concentration of Recombinant Human HVEM/TNFRSF14 Fc Chimera Alexa Fluor® 647 (Catalog # AFR11177) that produces 50% of the binding response is 1.00-10.0 ng/mL.

Scientific Data Images for Recombinant Human HVEM/TNFRSF14 Fc Alexa Fluor® 647 Protein

Flow cytometry analysis for Recombinant Human HVEM/TNFRSF14 Fc Chimera Alexa Fluor® 647 staining on Anti-Human HVEM/TNFRSF14 Antibody conjugated beads.

Streptavidin coated beads conjugated to biotinylated Anti-Human HVEM/TNFRSF14 were stained with the indicated concentrations of Recombinant Human HVEM/TNFRSF14 Fc Chimera Alexa Fluor® 647 (Catalog # AFR11177).

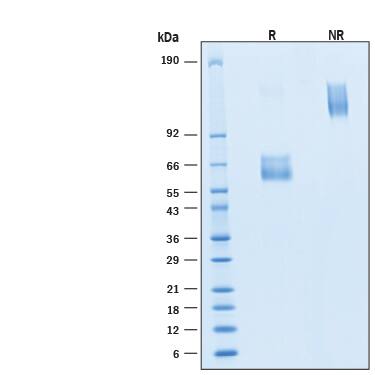

Recombinant Human HVEM/TNFRSF14 Fc Chimera Protein SDS-PAGE.

2 μg/lane of Recombinant Human HVEM/TNFRSF14 Fc Chimera Protein (Catalog # AFR11177) was resolved with SDS-PAGE under reducing (R) and non-reducing (NR) conditions and visualized by Coomassie® Blue staining, showing bands at 55-75 kDa and 110-150 kDa, respectively.

Formulation, Preparation and Storage

AFR11177
Formulation Supplied as a 0.2 μm filtered solution in PBS with BSA as a carrier protein.
Shipping The product is shipped with dry ice or equivalent. Upon receipt, store it immediately at the temperature recommended below.
Stability & Storage Protect from light. Use a manual defrost freezer and avoid repeated freeze-thaw cycles.
  • 6 months from date of receipt, -20 to -70 °C as supplied.
  • 1 month, 2 to 8 °C under sterile conditions after opening.
  • 3 months, -20 to -70 °C under sterile conditions after opening.

Background: HVEM/TNFRSF14

HVEM (herpesvirus entry mediator), also known as TNFRSF14 and CD270, is a type I membrane protein in the TNF receptor superfamily, and it can both promote and inhibit T cell activity (1). Mature human HVEM consists of a 164 amino acid (aa) extracellular domain (ECD) with three cysteine-rich domains (CRD), a 21 aa transmembrane segment, and a 60 aa cytoplasmic tail with a TRAF interaction domain (2, 3). Within the ECD, human HVEM shares 55% aa sequence identity with mouse and rat HVEM. Alternative splicing generates an additional isoform with a substitution of the N-terminal 10 amino acids including the signal peptide. HVEM is highly expressed on naïve CD4+ T cells, CD8+ T memory cells, regulatory T cells, dendritic cells, monocytes, and neutrophils (4-8). Its expression declines during effector T cell activation but is up-regulated during T reg activation (4, 5). HVEM functions as a receptor for BTLA, CD160, LIGHT/TNFSF14, and Lymphotoxin-alpha (4, 9‑12). Ligation of HVEM by LIGHT triggers T cell, monocyte, and neutrophil activation (8, 10) and contributes to Th1 inflammation and cardiac allograft rejection (13, 14). In contrast, HVEM binding to CD160 or BTLA suppresses T cell and dendritic cell activation (4, 7, 9, 10) and dampens intestinal inflammation (15). HVEM enhances the development of CD8+ T cell memory and T reg function (5, 6). It is additionally expressed on intestinal epithelial cells, where its binding by intraepithelial lymphocyte (IEL) expressed CD160 promotes epitheilal integrity and host defense (16). The herpesvirus envelope glycoprotein gD, which binds HVEM to initiate membrane fusion, can antagonize both BTLA and LIGHT binding (2, 9, 11).

References

  1. del Rio, M.L. et al. (2010) J. Leukoc. Biol. 87:223.
  2. Montgomery, R.I. et al. (1996) Cell 87:427.
  3. Hsu, H. et al. (1997) J. Biol. Chem. 272:13471.
  4. Sedy, J. R. et al. (2005) Nat. Immunol. 6:90.
  5. Tao, R. et al. (2008) J. Immunol. 180:6649.
  6. Steinberg, M.W. et al. (2013) PLoS One 8:e77992.
  7. de Trez, C. et al. (2008) J. Immunol. 180:238.
  8. Heo, S.K. et al. (2006) J. Leukoc. Biol. 79:330.
  9. Gonzalez, L.C. et al. (2005) Proc. Natl. Acad Sci. USA 102:1116.
  10. Cai, G. et al. (2008) Nat. Immunol. 9:176.
  11. Mauri, D.N. et al. (1998) Immunity 8:21.
  12. Harrop, J.A. et al. (1998) J. Biol. Chem. 273:27548.
  13. Wang, J. et al. (2005) J. Immunol. 174:8173.
  14. Ye, Q. et al. (2002) J. Exp. Med. 195:795.
  15. Steinberg, M.W. et al. (2008) J. Exp. Med. 205:1463.
  16. Shui, J.W. et al. (2012) Nature 488:222.

Long Name

Herpesvirus Entry Mediator

Alternate Names

ATAR, CD270, LIGHTR, TNFRSF14

Entrez Gene IDs

8764 (Human); 230979 (Mouse); 102137807 (Cynomolgus Monkey)

Gene Symbol

TNFRSF14

UniProt

Q92956.3

Additional HVEM/TNFRSF14 Products

Product Documents for Recombinant Human HVEM/TNFRSF14 Fc Alexa Fluor® 647 Protein

Product Datasheets

Certificate of Analysis

To download a Certificate of Analysis, please enter a lot number in the search box below.

Note: Certificate of Analysis not available for kit components.

Download SDS

Product Specific Notices for Recombinant Human HVEM/TNFRSF14 Fc Alexa Fluor® 647 Protein

This product is provided under an agreement between Life Technologies Corporation and R&D Systems, Inc, and the manufacture, use, sale or import of this product is subject to one or more US patents and corresponding non-US equivalents, owned by Life Technologies Corporation and its affiliates. The purchase of this product conveys to the buyer the non-transferable right to use the purchased amount of the product and components of the product only in research conducted by the buyer (whether the buyer is an academic or for-profit entity). The sale of this product is expressly conditioned on the buyer not using the product or its components (1) in manufacturing; (2) to provide a service, information, or data to an unaffiliated third party for payment; (3) for therapeutic, diagnostic or prophylactic purposes; (4) to resell, sell, or otherwise transfer this product or its components to any third party, or for any other commercial purpose. Life Technologies Corporation will not assert a claim against the buyer of the infringement of the above patents based on the manufacture, use or sale of a commercial product developed in research by the buyer in which this product or its components was employed, provided that neither this product nor any of its components was used in the manufacture of such product. For information on purchasing a license to this product for purposes other than research, contact Life Technologies Corporation, Cell Analysis Business Unit, Business Development, 29851 Willow Creek Road, Eugene, OR 97402, Tel: (541) 465-8300. Fax: (541) 335-0354.
This product is provided under an agreement between Life Technologies Corporation and R&D Systems, Inc, and the manufacture, use, sale or import of this product is subject to one or more US patents and corresponding non-US equivalents, owned by Life Technologies Corporation and its affiliates. The purchase of this product conveys to the buyer the non-transferable right to use the purchased amount of the product and components of the product only in research conducted by the buyer (whether the buyer is an academic or for-profit entity). The sale of this product is expressly conditioned on the buyer not using the product or its components (1) in manufacturing; (2) to provide a service, information, or data to an unaffiliated third party for payment; (3) for therapeutic, diagnostic or prophylactic purposes; (4) to resell, sell, or otherwise transfer this product or its components to any third party, or for any other commercial purpose. Life Technologies Corporation will not assert a claim against the buyer of the infringement of the above patents based on the manufacture, use or sale of a commercial product developed in research by the buyer in which this product or its components was employed, provided that neither this product nor any of its components was used in the manufacture of such product. For information on purchasing a license to this product for purposes other than research, contact Life Technologies Corporation, Cell Analysis Business Unit, Business Development, 29851 Willow Creek Road, Eugene, OR 97402, Tel: (541) 465-8300. Fax: (541) 335-0354.

For research use only
