Recombinant Human HVEM/TNFRSF14 Fc Avi-tag Protein, CF

R&D Systems, part of Bio-Techne | Catalog # AVI10726

Biotinylated
R&D Systems, part of Bio-Techne
Catalog #
Availability
Size / Price
Qty
AVI10726-050
Print Quote
Bulk Order
100% Guarantee

Key Product Details

Learn more about Avi-tag Biotinylated Proteins

Source

CHO

Accession #

Q92956.3

Structure / Form

Disulfide-linked homodimer, biotinylated via Avi-tag

Conjugate

Biotin

Applications

Bioactivity

View all HVEM/TNFRSF14 Proteins and Enzymes »

Product Specifications

Source

Chinese Hamster Ovary cell line, CHO-derived human HVEM/TNFRSF14 protein

Human HVEM/TNFRSF14
(Pro37-Val202)
Accession # Q92956.3		 DIEGRMD Human IgG1
(Pro100-Lys330)		 Avi-tag
N-terminus C-terminus

Purity

>95%, by SDS-PAGE visualized with Silver Staining and quantitative densitometry by Coomassie® Blue Staining.

Endotoxin Level

<0.10 EU per 1 μg of the protein by the LAL method.

N-terminal Sequence Analysis

Pro37

Predicted Molecular Mass

46 kDa

SDS-PAGE

61-67 kDa, under reducing conditions

Activity

Measured by its binding ability in a functional ELISA.
When Recombinant Human BTLA (Catalog # 9235-BT) is immobilized at 1.00 µg/mL (100 µL/well), Biotinylated Recombinant Human HVEM/TNFRSF14 Fc Chimera Avi-tag binds with an ED50 of 30.0-180 ng/mL.

Scientific Data Images for Recombinant Human HVEM/TNFRSF14 Fc Avi-tag Protein, CF

Biotinylated Recombinant Human HVEM/TNFRSF14 Fc Chimera Avi-tag Binding Activity.

When Recombinant Human BTLA (9235-BT) is immobilized at 1.00 µg/mL (100 µL/well), Biotinylated Recombinant Human HVEM/TNFRSF14 Fc Chimera Avi-tag binds with an ED50 of 30.0-180 ng/mL.

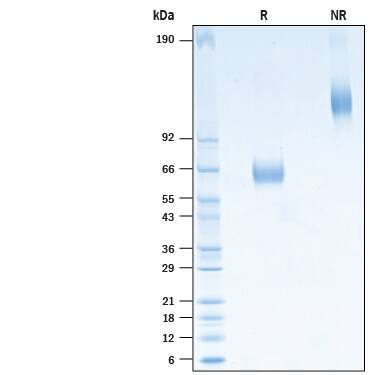

Biotinylated Recombinant Human HVEN/TNFRSF14 Fc Chimera Avi-tag Protein SDS-PAGE.

2 μg/lane of Biotinylated Recombinant Human HVEM/TNFRSF14 Fc Chimera Avi-tag (Catalog # AVI10726) was resolved with SDS-PAGE under reducing (R) and non-reducing (NR) conditions and visualized by Coomassie® Blue staining, showing bands at 61-67 kDa and 120-130 kDa, respectively.

Formulation, Preparation and Storage

AVI10726
Formulation Lyophilized from a 0.2 μm filtered solution in PBS with Trehalose.
Reconstitution Reconstitute at 500 μg/mL in PBS.
Shipping The product is shipped at ambient temperature. Upon receipt, store it immediately at the temperature recommended below.
Stability & Storage Use a manual defrost freezer and avoid repeated freeze-thaw cycles.
  • 12 months from date of receipt, -20 to -70 °C as supplied.
  • 1 month, 2 to 8 °C under sterile conditions after reconstitution.
  • 3 months, -20 to -70 °C under sterile conditions after reconstitution.

Background: HVEM/TNFRSF14

HVEM (herpesvirus entry mediator), also known as TNFRSF14 and CD270, is a type I membrane protein in the TNF receptor superfamily, and it can both promote and inhibit T cell activity (1). Mature human HVEM consists of a 164 amino acid (aa) extracellular domain (ECD) with three cysteine-rich domains (CRD), a 21 aa transmembrane segment, and a 60 aa cytoplasmic tail with a TRAF interaction domain (2, 3). Within the ECD, human HVEM shares 55% aa sequence identity with mouse and rat HVEM. Alternative splicing generates an additional isoform with a substitution of the N-terminal 10 amino acids including the signal peptide. HVEM is highly expressed on naïve CD4+ T cells, CD8+ T memory cells, regulatory T cells, dendritic cells, monocytes, and neutrophils (4-8). Its expression declines during effector T cell activation but is up-regulated during T reg activation (4, 5). HVEM functions as a receptor for BTLA, CD160, LIGHT/TNFSF14, and Lymphotoxin-alpha (4, 9‑12). Ligation of HVEM by LIGHT triggers T cell, monocyte, and neutrophil activation (8, 10) and contributes to Th1 inflammation and cardiac allograft rejection (13, 14). In contrast, HVEM binding to CD160 or BTLA suppresses T cell and dendritic cell activation (4, 7, 9, 10) and dampens intestinal inflammation (15). HVEM enhances the development of CD8+ T cell memory and T reg function (5, 6). It is additionally expressed on intestinal epithelial cells, where its binding by intraepithelial lymphocyte (IEL) expressed CD160 promotes epitheilal integrity and host defense (16). The herpesvirus envelope glycoprotein gD, which binds HVEM to initiate membrane fusion, can antagonize both BTLA and LIGHT binding (2, 9, 11). Our Avi-tag Biotinylated Human HVEM features biotinylation at a single site contained within the Avi-tag, a unique 15 amino acid peptide. Protein orientation will be uniform when bound to streptavidin-coated surface due to the precise control of biotinylation and the rest of the protein is uncharged so there is no interference in the protein's bioactivity.

References

  1. del Rio, M.L. et al. (2010) J. Leukoc. Biol. 87:223.
  2. Montgomery, R.I. et al. (1996) Cell 87:427.
  3. Hsu, H. et al. (1997) J. Biol. Chem. 272:13471.
  4. Sedy, J. R. et al. (2005) Nat. Immunol. 6:90.
  5. Tao, R. et al. (2008) J. Immunol. 180:6649.
  6. Steinberg, M.W. et al. (2013) PLoS One 8:e77992.
  7. de Trez, C. et al. (2008) J. Immunol. 180:238.
  8. Heo, S.K. et al. (2006) J. Leukoc. Biol. 79:330.
  9. Gonzalez, L.C. et al. (2005) Proc. Natl. Acad Sci. USA 102:1116.
  10. Cai, G. et al. (2008) Nat. Immunol. 9:176.
  11. Mauri, D.N. et al. (1998) Immunity 8:21.
  12. Harrop, J.A. et al. (1998) J. Biol. Chem. 273:27548.
  13. Wang, J. et al. (2005) J. Immunol. 174:8173.
  14. Ye, Q. et al. (2002) J. Exp. Med. 195:795.
  15. Steinberg, M.W. et al. (2008) J. Exp. Med. 205:1463.
  16. Shui, J.W. et al. (2012) Nature 488:222.

Long Name

Herpesvirus Entry Mediator

Alternate Names

ATAR, CD270, LIGHTR, TNFRSF14

Entrez Gene IDs

8764 (Human); 230979 (Mouse); 102137807 (Cynomolgus Monkey)

Gene Symbol

TNFRSF14

UniProt

Q92956.3

Additional HVEM/TNFRSF14 Products

Product Documents for Recombinant Human HVEM/TNFRSF14 Fc Avi-tag Protein, CF

Product Datasheets

Certificate of Analysis

To download a Certificate of Analysis, please enter a lot number in the search box below.

Note: Certificate of Analysis not available for kit components.

Download SDS

Product Specific Notices for Recombinant Human HVEM/TNFRSF14 Fc Avi-tag Protein, CF

For research use only
