Recombinant Human IL-18 R alpha/IL-1 R5 Fc Avi-tag, CF
R&D Systems, part of Bio-Techne | Catalog # AVI10841
Key Product Details
Source
Accession #
Structure / Form
Conjugate
Applications
Product Specifications
Source
Human IL-18 Ralpha/IL-1 R5 (Glu20-Arg329) Accession # Q13478.1 |
IEGRDID | Human IgG1 (Pro100-Lys330) |
Avi-tag |
N-terminus | C-terminus |
Purity
Endotoxin Level
N-terminal Sequence Analysis
Predicted Molecular Mass
SDS-PAGE
Activity
When Recombinant Human IL-18 R beta/IL-1 R7 Fc (Catalog # 118-AP) is immobilized at 2.00 µg/mL (100 µL/well), in the present of Recombinant Human IL-18 (Catalog # 9124-IL), Biotinylated Recombinant Human IL-18 R alpha/IL-1R5 Fc Chimera Avi-tag (Catalog # AVI10841) binds with an ED50 of 0.500-5.00 ng/mL.
The biotin to protein ratio is great than 0.7 as determined by the HABA assay.
Scientific Data Images for Recombinant Human IL-18 R alpha/IL-1 R5 Fc Avi-tag, CF
Biotinylated Recombinant Human IL-18 R alpha/IL-1 R5 Fc Chimera Avi-tag Binding Activity.
When Recombinant Human IL-18 R beta/IL-1 R7 Fc Chimera (118-AP) is immobilized at 2.00 μg/mL (100 μL/well), in the presnce of Recombinant Human IL-18 (9124-IL), Biotinylated Recombinant Human IL-18 R alpha/IL-1 R5 Fc Chimera Avi-tag (Catalog # AVI10841) binds with an ED50 of 0.500-5.00 ng/mLBiotinylated Recombinant Human IL-18 R alpha/IL-1 R5 Fc Chimera Avi-tag Protein SDS-PAGE.

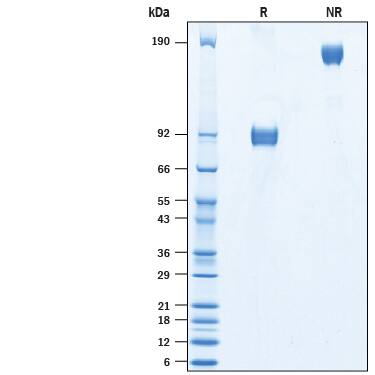

2 μg/lane of Biotinylated Recombinant Human IL-18 R alpha/IL-1 R5 Fc Chimera Avi-tag Protein (Catalog # AVI10841) was resolved with SDS-PAGE under reducing (R) and non-reducing (NR) conditions and visualized by Coomassie® Blue staining, showing bands at 81-97 kDa and 162-194 kDa, respectively.Formulation, Preparation and Storage
AVI10841
Formulation | Lyophilized from a 0.2 μm filtered solution in PBS with Trehalose. |
Reconstitution | Reconstitute at 500 μg/mL in PBS. |
Shipping | The product is shipped at ambient temperature. Upon receipt, store it immediately at the temperature recommended below. |
Stability & Storage | Use a manual defrost freezer and avoid repeated freeze-thaw cycles.
|
Background: IL-18 R alpha/IL-1 R5
IL-18 Receptor alpha (IL-18 Ra), also known as IL-18 R1, IL-1 R5, and IL-1 Rrp, is a transmembrane component of the IL-18 Receptor (1). It associates with IL‑18 Rb/IL‑1 R7 to form the high affinity receptor complex for IL-18 and confer cellular responsiveness to IL-18 (2, 3). IL-18 is a member of the IL-1 family of cytokines and shares numerous immunoregulatory functions with IL-12. Mature human IL-18 Ra consists of a 308 amino acid (aa) extracellular domain (ECD) with three immunoglobulin-like domains, a 21 aa transmembrane segment, and a 191 aa cytoplasmic domain (4). Within the ECD, human IL-18 Ra shares 56% aa sequence identity with mouse and rat IL-18 Ra. IL-18 Ra is widely expressed on epithelial cells as well as on B cells, NK cells, CD4+ and CD8+ T cells, and dendritic cells (5-8). Signaling through the IL-18 receptor promotes a Th1 biased immune response and NK cell cytolytic activity (6, 7, 9-11). It also contributes to cigarette smoke-induced airway inflammation and epithelial damage (12). Our Avi-tag Biotinylated human IL-18 Ra features biotinylation at a single site contained within the avi-tag, a unique 15 amino acid peptide. Protein orientation will be uniform when bound the streptavidin-coated surface due to the precise control of biotinylatin and the rest of the protein in changed so there is no interference in the protein's bioactivity.
References
- Dinarello, C.A. et al. (2013) Front. Immunol. 4:289.
- Torigoe, K. et al. (1997) J. Biol. Chem. 272:25737.
- Born, T.L. et al. (1998) J. Biol. Chem. 273:29445.
- Parnet, P. et al. (1996) J. Biol. Chem. 271:3967.
- Kunikata, T. et al. (1998) Cell Immunol. 189:135.
- Smeltz, R.B. et al. (2001) J. Exp. Med. 194:143.
- Chan, W.L. et al. (2001) J. Immunol. 167:1238.
- Kaser, A. et al. (2004) Blood 103:648.
- Tomura, M. et al. (1998) J. Immunol. 160:3759.
- Yoshimoto, T. et al. (1998) J. Immunol. 161:3400.
- Hyodo, Y. et al. (1999) J. Immunol. 162:1662.
- Kang, M.J. et al. (2007) J. Immunol. 178:1948.
Long Name
Alternate Names
Gene Symbol
UniProt
