Recombinant Human SIRP alpha/CD172a mFc Chimera Protein, CF

R&D Systems, part of Bio-Techne | Catalog # 10651-SA

Mouse IgG2a Fc Tag
R&D Systems, part of Bio-Techne
Catalog #
Availability
Size / Price
Qty
10651-SA-050
Print Quote
Bulk Order
100% Guarantee

Key Product Details

Source

CHO

Conjugate

Unconjugated

Applications

Bioactivity

View all SIRP alpha/CD172a Proteins and Enzymes »

Product Specifications

Source

Chinese Hamster Ovary cell line, CHO-derived human SIRP alpha/CD172a protein
Human SIRP alpha/CD172a
(Gly27-Arg370) & (Glu31-Arg370)
Accession # NP_542970.1		 IEGRMDP Mouse IgG2a
(Glu98-Lys330)
N-terminus C-terminus

Purity

>95%, by SDS-PAGE visualized with Silver Staining and quantitative densitometry by Coomassie® Blue Staining.

Endotoxin Level

<0.10 EU per 1 μg of the protein by the LAL method.

N-terminal Sequence Analysis

Gly27 & Glu31

Predicted Molecular Mass

65 kDa

SDS-PAGE

86-97 kDa, under reducing conditions

Activity

Measured by its binding ability in a functional ELISA.
When Recombinant Human CD47 Fc Chimera (Catalog # 4670-CD) is immobilized at 0.1 µg/mL (100 µL/well), Recombinant Human SIRP alpha/CD172a Mouse IgG2a Fc Chimera (Catalog # 10651-SA) binds with an ED50 of 5-40 ng/mL.

Scientific Data Images for Recombinant Human SIRP alpha/CD172a mFc Chimera Protein, CF

Recombinant Human SIRP alpha/CD172a mFc Chimera Protein Binding Activity

When Recombinant Human CD47 Fc Chimera (4670-CD) is immobilized at 0.1 µg/mL (100 µL/well), Recombinant Human SIRP alpha/CD172a Mouse IgG2a Fc Chimera (Catalog # 10651-SA) binds with an ED50 of 5-40 ng/mL.

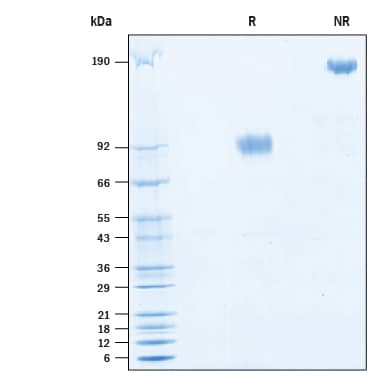

Recombinant Human SIRP alpha/CD172a mFc Chimera Protein SDS-PAGE.

2 μg/lane of Recombinant Human SIRP alpha/CD172a mFc Chimera Protein (Catalog # 10651-SA) was resolved with SDS-PAGE under reducing (R) and non-reducing (NR) conditions and visualized by Coomassie® Blue staining, showing bands at 86-97 kDa and 172-194 kDa, respectively.

Formulation, Preparation and Storage

10651-SA
Formulation Lyophilized from a 0.2 μm filtered solution in PBS with Trehalose.
Reconstitution Reconstitute at 500 μg/mL in PBS.
Shipping The product is shipped at ambient temperature. Upon receipt, store it immediately at the temperature recommended below.
Stability & Storage Use a manual defrost freezer and avoid repeated freeze-thaw cycles.
  • 12 months from date of receipt, -20 to -70 °C as supplied.
  • 1 month, 2 to 8 °C under sterile conditions after reconstitution.
  • 3 months, -20 to -70 °C under sterile conditions after reconstitution.

Background: SIRP alpha/CD172a

Signal regulatory protein alpha (SIRP alpha, designated CD172a), also called SHPS-1 (SHP substrate 1) and previously, MyD-1 (Myeloid/Dendritic-1), is a monomeric ~90 kDa type I transmembrane glycoprotein that belongs to the SIRP/SHPS (CD172) family of the immunoglobulin superfamily (1-4). SIRPs are paired receptors, with similar extracellular domains but differing C-termini and functions (1, 2). The 503 amino acid (aa) human SIRP alpha contains a 342 aa extracellular domain (ECD), with one V-type, and two C1 type Ig domains, and three potential N glycosylation sites. It has a 110 aa cytoplasmic sequence with ITIM motifs that recruit tyrosine phosphatases SHP-1 and SHP-2 when phosphorylated (4). Human SIRP alpha has more than 40 described polymorphisms, including the prominent BIT (Brain Ig like molecule with Tyrosine-based activation motifs, also called SIRP alpha 2 or PTPNS) (5). One reported isoform lacks aa 1-101, which eliminates most of the V type Ig domain. Human SIRP alpha ECD shares 61%, 60%, 71%, 72% and 73% aa identity with mouse, rat, porcine, bovine and equine SIRP alpha, respectively; it shares 84% and 76% aa identity with human SIRP beta 1 and SIRP gamma, respectively (2). SIRP alpha is expressed mainly on myeloid cells, including macrophages, neutrophils, dendritic and Langerhans cells (3-6). It is also found on neurons, smooth muscle and endothelial cells (7-9). SIRP alpha shows adhesion to the ubiquitous CD47/IAP (integrin associated protein), while SIRP gamma binds more weakly and SIRP alpha 1 does not bind at all (1, 2). Mouse and human SIRP alpha -CD47 binding only cross-reacts for specific polymorphisms and influences engraftment of xenotransplanted stem cells (6, 10). SIRP alpha engagement generally produces a negative regulatory signal (4). Low SIRP alpha recognition of CD47, which occurs on aged erythrocytes or platelets or xenogenic cells, promotes clearance of CD47low cells from circulation (11, 13). SIRP alpha recognition of surfactants SP-A and SP-D in the lung can inhibit alveolar macrophage cytokine production (14). The CD47 integrin-SIRP alpha interaction is reported to promote macrophage fusion during osteoclastogenesis (15).

References

  1. Barclay, A.N. & M.H. Brown (2006) Nat. Rev. Immunol. 6:457.
  2. vanBeek, E.M. et al. (2005) J. Immunol. 175:7781.
  3. Liu, Y. et al. (2005) J. Biol. Chem. 280:36132.
  4. Kharitonenkov, A. et al. (1997) Nature 386:181.
  5. Swissprot Accession # P78324.
  6. Miyashita, M. et al. (2004) Mol. Biol. Cell 15:3950.
  7. Wang, X.X. & K.H. Pfenninger (2005) J. Cell Sci. 119:172.
  8. Maile, L.A. et al. (2003) Mol. Biol. Cell 14:3519.
  9. Johansen, M.L. & E.J. Brown (2007) J. Biol. Chem. 282:24219.
  10. Takenaka, K. et al. (2007) Nat. Immunol. 8:1313.
  11. Ishikawa-Sekigami, T. et al. (2006) Biochem. Biophys. Res. Commun. 343:1197.
  12. Olsson, M. et al. (2005) Blood 105:3577.
  13. Ide, K. et al. (2007) Proc. Natl. Acad. Sci. USA 104:5062.
  14. Gardai, S.J. et al. (2003) Cell 115:13.
  15. Lundberg, P. et al. (2007) Biochem. Biophys. Res. Commun. 352:444.

Long Name

Signal-regulatory Protein alpha

Alternate Names

BIT, CD172a, MFR, MYD-1, SHPS1, SIRPA

Entrez Gene IDs

140885 (Human); 19261 (Mouse); 25528 (Rat); 494566 (Porcine); 609452 (Canine); 101926317 (Cynomolgus Monkey)

Gene Symbol

SIRPA
