Recombinant Human VISTA/B7-H5/PD-1H Fc Avi-tag Protein, CF

R&D Systems, part of Bio-Techne | Catalog # AVI7126

Biotinylated
R&D Systems, part of Bio-Techne
Catalog #
Availability
Size / Price
Qty
AVI7126-050
Print Quote
Bulk Order
100% Guarantee

Key Product Details

Learn more about Avi-tag Biotinylated Proteins

Source

HEK293

Accession #

AAH20568

Structure / Form

Disulfide-linked homodimer, biotinylated protein via Avi-tag

Conjugate

Biotin

Applications

Bioactivity

View all VISTA/B7-H5/PD-1H Proteins and Enzymes »

Product Specifications

Source

Human embryonic kidney cell, HEK293-derived human VISTA/B7-H5/PD-1H protein
Human VISTA/B7-H5/PD-1H
(Phe33-Ala194)
Accession # AAH20568		 IEGRMD Human IgG1
(Pro100-Lys330)		 Avi-tag
N-terminus C-terminus

Purity

>95%, by SDS-PAGE visualized with Silver Staining and quantitative densitometry by Coomassie® Blue Staining.

Endotoxin Level

<0.10 EU per 1 μg of the protein by the LAL method.

N-terminal Sequence Analysis

Phe33

Predicted Molecular Mass

47 kDa

SDS-PAGE

64-75 kDa, under reducing conditions

Activity

Measured by its binding ability in a functional ELISA.
When Recombinant Human VSIG3 Fc Chimera (Catalog # 9229-VS) is immobilized at 5 µg/mL (100 µL/well), Biotinylated Recombinant Human VISTA/B7-H5/PD-1H Fc Chimera Avi-tag (Catalog # AVI7126) binds with an ED50 of 0.5-3 μg/mL.

Scientific Data Images for Recombinant Human VISTA/B7-H5/PD-1H Fc Avi-tag Protein, CF

Recombinant Human VISTA/B7-H5/PD-1H Fc Avi-tag Protein Binding Activity

Recombinant Human VISTA/B7-H5/PD-1H Fc Avi-tag Protein Binding Activity

When Recombinant Human VSIG3 Fc Chimera (Catalog # 9229-VS) is coated at 5 µg/mL, Biotinylated Recombinant Human VISTA/B7-H5/PD-1H Fc Chimera Avi-tag (Catalog # AVI7126) binds with an ED50 of 0.5-3 µg/mL.

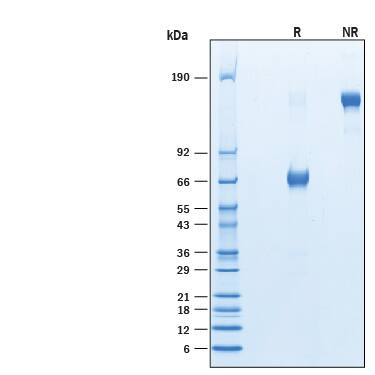

Recombinant Human VISTA/B7-H5/PD-1H Fc Avi-tag Protein SDS-PAGE

Recombinant Human VISTA/B7-H5/PD-1H Fc Avi-tag Protein SDS-PAGE

2 μg/lane of Biotinylated Recombinant Human VISTA/B7-H5/PD-1H Fc Chimera Avi-tag (Catalog # AVI7126) was resolved with SDS-PAGE under reducing (R) and non-reducing (NR) conditions and visualized by Coomassie® Blue staining, showing bands at 64-75 kDa and 130-150 kDa, respectively.

Formulation, Preparation and Storage

AVI7126
Formulation Lyophilized from a 0.2 μm filtered solution in PBS with Trehalose.
Reconstitution Reconstitute at 500 μg/mL in PBS.
Shipping The product is shipped at ambient temperature. Upon receipt, store it immediately at the temperature recommended below.
Stability & Storage Use a manual defrost freezer and avoid repeated freeze-thaw cycles.
  • 12 months from date of receipt, -20 to -70 °C as supplied.
  • 1 month, 2 to 8 °C under sterile conditions after reconstitution.
  • 3 months, -20 to -70 °C under sterile conditions after reconstitution.

Background: VISTA/B7-H5/PD-1H

Platelet receptor Gi24, also known as Dies1, VISTA, SISP1 and B7‑H5, is a 55‑65 kDa transmembrane glycoprotein with homology to B7‑like immune co‑stimulatory molecules (1, 2). Mature human Gi24 contains a 162 amino acid (aa) extracellular domain (ECD) with one V‑type Ig‑like domain, a 21 aa transmembrane segment, and a 96 aa cytoplasmic domain. Within the ECD, human Gi24 shares 70% and 67% aa sequence identity with mouse and rat Gi24, respectively (3). The 30 kDa ECD can be shed by MT1‑MMP, with a 25‑30 kDa fragment remaining in the membrane (3). Gi24 promotes both MT1‑MMP expression and the MT1‑MMP mediated activation of MMP‑2 (3). Gi24 supports the differentiation of embryonic stem cells (ESC) and enhances BMP‑4 induced signaling in ESC, but is also down‑regulated following BMP‑4 exposure (4, 5). It binds to BMP‑4 directly, and also associates with the type I BMP receptor Activin RIB/ALK‑4 (4, 5). Gi24 is expressed on the surface of naïve CD4+ T cells and regulatory T cells (6). It is up‑regulated in vivo on activated monocytes and dendritic cells (5). Gi24 inhibits CD4+ and CD8+ T cell proliferation, and their production of IL‑2 and IFN‑ gamma (6). Its expression on tumor cells attenuates the anti‑tumor immune response and enables more rapid tumor progression (6). In contrast, Gi24 limits disease progression in the autoimmune disease model EAE (6).

References

  1. Flajnik, M.F. et al. (2012) Immunogenetics 64:571.
  2. Wilcox, R.A. et al. (2012) Eur. J. Haematol. 88:465.
  3. Sakr, M.A. et al. (2010) Cancer Sci. 101:2368.
  4. Aloia, L. et al. (2010) J. Biol. Chem. 285:7776.
  5. Parisi, S. et al. (2012) FASEB J. 26:3957.
  6. Wang, L. et al. (2011) J. Exp. Med. 208:577.

Alternate Names

4632428N05Rik, B7-H5, C10orf54, Dies1, Gi24, PD-1H, PD1H, SISP1, VSIR

Entrez Gene IDs

64115 (Human); 74048 (Mouse); 690899 (Rat); 102116468 (Cynomolgus Monkey)

Gene Symbol

VSIR

UniProt

AAH20568
