Recombinant MERS-CoV Spike RBD His-tag Protein, CF

R&D Systems, part of Bio-Techne | Catalog # 10621-CV

R&D Systems, part of Bio-Techne
Catalog #
Availability
Size / Price
Qty
10621-CV-100
Print Quote
Bulk Order
100% Guarantee

Key Product Details

Source

CHO

Accession #

YP_007188579.1

Conjugate

Unconjugated

Applications

Bioactivity

View all Spike RBD Proteins and Enzymes »

Product Specifications

Source

Chinese Hamster Ovary cell line, CHO-derived mers-cov Spike RBD protein
MERS-CoV Spike RBD
(Glu367-Tyr606)
Accession # YP_007188579.1		 HP GGGSGGGSGGGS HHHHHH
N-terminus C-terminus

Purity

>95%, by SDS-PAGE visualized with Silver Staining and quantitative densitometry by Coomassie® Blue Staining.

Endotoxin Level

<0.10 EU per 1 μg of the protein by the LAL method.

N-terminal Sequence Analysis

Glu367 & Lys369

Predicted Molecular Mass

28 kDa

SDS-PAGE

35-45 kDa, under reducing conditions

Activity

Measured by its binding ability in a functional ELISA with Recombinant Human DPPIV/CD26 (High Purity Dimer) (Catalog # 9168-SE).

Scientific Data Images for Recombinant MERS-CoV Spike RBD His-tag Protein, CF

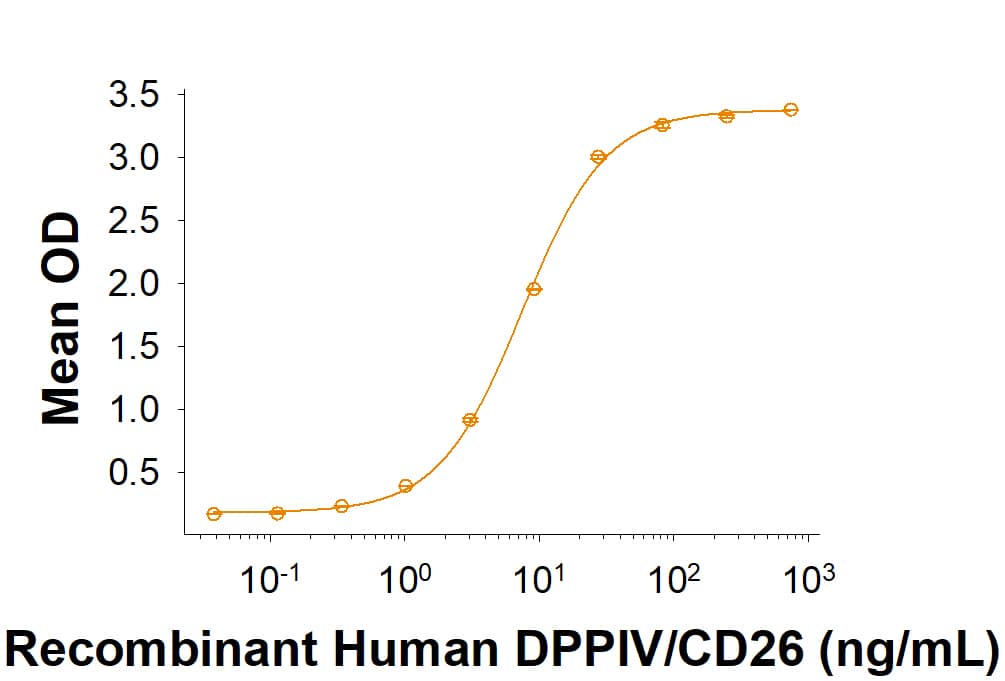

Recombinant MERS-CoV Spike RBD His-tag Protein Binding Activity.

Recombinant MERS-CoV Spike RBD His-tag (Catalog # 10621-CV) binds Recombinant Human DPPIV/CD26 (High Purity Dimer) Protein (9168-SE) in a functional ELISA.

Recombinant MERS-CoV Spike RBD His-tag Protein SDS-PAGE.

2 μg/lane of Recombinant MERS-CoV Spike RBD His-tag Protein (Catalog # 10621-CV) was resolved with SDS-PAGE under reducing (R) and non-reducing (NR) conditions and visualized by Coomassie® Blue staining, showing bands at 35-45 kDa.

Detection of MERS-CoV Spike RBD protein bound to CD26/DPPIV expressing cells by flow cytometry.

In a functional flow cytometry test, (A) Recombinant MERS-CoV Spike RBD His-tag Protein (Catalog # 10621-CV) binds to HEK293 human embryonic kidney cell line transfected with recombinant human CD26/DPPIV and EGFP. Ligand binding was detected by staining cells with APC-conjugated anti-His Monoclonal Antibody (IC050A), which does not stain the cells in the absence of recombinant protein (B).

Formulation, Preparation and Storage

10621-CV
Formulation Supplied as a 0.2 μm filtered solution in PBS with Trehalose.
Shipping The product is shipped with dry ice or equivalent. Upon receipt, store it immediately at the temperature recommended below.
Stability & Storage Use a manual defrost freezer and avoid repeated freeze-thaw cycles.
  • 6 months from date of receipt, -20 to -70 °C as supplied.
  • 1 month, 2 to 8 °C under sterile conditions after opening.
  • 3 months, -20 to -70 °C under sterile conditions after opening.

Background: Spike RBD

MERS-CoV (also known as HCoV-EMC), which causes the Middle East Respiratory Syndrome (MERS), was first reported in Saudi Arabia in 2012 as a novel coronavirus (1). Coronaviruses are a family of viruses that are commonly comprised of a large plus-strand RNA genome and four structural proteins: Spike protein (S), Envelope protein (E), Membrane protein (M), and Nucleocapsid protein (N). There are two well-known human coronavirus families that infect humans: Alpha coronaviruses which includes HCoV-229E and HCoV-NL63; beta coronaviruses that includes MERS-CoV, HCov-OC43, Severe Acute Respiratory Syndrome (SARS-CoV), and global pandemic Covid-19 (SARS-CoV2) (2). The MERS-CoV Spike Protein (S Protein) is a glycoprotein that mediates membrane fusion and viral entry, and it consists of two subunits, S1 and S2. The S1 subunit is focused on attachment of the protein to the host receptor while the S2 subunit is involved with cell fusion (3). Located within the S1 subunit is the receptor binding domain (RBD). The RBD is responsible for the binding of MERS-CoV to dipeptidyl peptidase IV (DPP4, also known as human CD26) (4). The RBD of MERS-CoV shares 24% and 21% amino acid sequence (aa) identity with SARS-CoV RBD and SARS-Cov2 RBD, respectively. The low aa sequence identity is consistent with the finding that MERS-CoV and SARS-CoV bind different cellular receptors (4). The S1 subunit, especially the RBD region, of MERS-CoV was commonly targeted for vaccinations or antiviral therapies (5-7).

References

  1. Zaki, A.M. et al. (2012) N. Engl. J. Med. 367:1814.
  2. Ogimi, C. et al. (2020) J Pediatric Infect Dis Soc doi: 10.1093/jpids/piaa037.
  3. Li, Y. et al. (2019) Engineering. 5:940.
  4. Raj, V.S. et al. (2013) Nature 495:251.
  5. Corti, D. et al. (2016) J. Infect. Public Health 9:231.
  6. Tang, X.C. et al. (2014) Proc. Natl. Acad. Sci. USA 111:E2018.
  7. Jiang, L. et al. (2014) Sci. Transl. Med. 6:234ra59.

Long Name

Spike Receptor Binding Domain

Entrez Gene IDs

3200426 (HCoV-HKU1); 14254594 (MERS-CoV); 1489668 (SARS-CoV); 43740568 (SARS-CoV-2)

Gene Symbol

S

UniProt

YP_007188579.1

Additional Spike RBD Products

Product Documents for Recombinant MERS-CoV Spike RBD His-tag Protein, CF

Product Datasheets

Certificate of Analysis

To download a Certificate of Analysis, please enter a lot number in the search box below.

Note: Certificate of Analysis not available for kit components.

Download SDS

Product Specific Notices for Recombinant MERS-CoV Spike RBD His-tag Protein, CF

For research use only
