EV SEC Columns

Novus Biologicals, part of Bio-Techne | Catalog # NBP3-11763

Novus Biologicals, part of Bio-Techne
Catalog #
Availability
Size / Price
Qty
NBP3-11763-10Units
NBP3-11763-5Units
Print Quote
Bulk Order
100% Guarantee

Product Summary for EV SEC Columns

PURE-EVs are size exclusion chromatography (SEC) columns designed to isolate extracellular vesicles (EVs) from small volume samples. Compared to other techniques, PURE-EV efficiently separates EVs from circulating proteins while maintaining original shape and functionality of vesicles. Highly pure EV preparations, no residual chemicals from precipitation, and rapid isolation in approximately 20 minutes. Isolated EVs are suitable for a wide range of downstream analyses such as nanotracking analysis (NTA), protein profiling (western blotting, ELISA, Flow Cytometry), and nucleic acid extraction.

Product Specifications

Sample Volume

500 ul - 2 ml

Scientific Data Images for EV SEC Columns

EV SEC Columns

EV SEC Columns [NBP3-11763]

EV SEC Columns [NBP3-11763] - Results and EV separation. EV SEC column was filled with 2 ml of medium from HCT116 cells, concentrated 10 folds by Tangential Flow Filtration (TFF)-EV concentrator (Catalog # NBP3-11762). 24 fractions (500 μl each one) have been collected and analyzed by ELISA assay (CD81 marker) and by BCA test for determining respectively vesicle and total protein content. EVs are eluted in fractions 8 - 12 (turnaround time approximately 15 min), whereas circulating proteins corresponded to the fractions 14 - 24.
EV SEC Columns

EV SEC Columns [NBP3-11763]

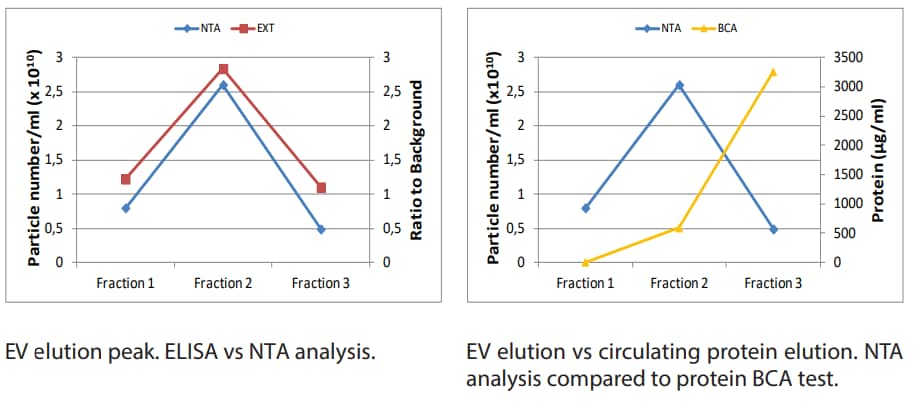

EV SEC Columns [NBP3-11763] - Collected fractions were analyzed by NTA (Zetaview, Particle Metrix), ELISA and by BCA assay for determining EV and total protein content. EVs are eluted in fraction 2.

Formulation, Preparation, and Storage

Concentration

Please see the protocols for proper use of this product. If no protocol is available, contact technical services for assistance.

Shipping

The product is shipped with polar packs. Upon receipt, store it immediately at the temperature recommended below.

Storage

Store at 4C.

Background: EV SEC Columns

Size-exclusion chromatography (SEC) separates macromolecules based on their size. To accomplish this, the sample is passed through a porous column and molecules are isolated in fractions from the eluate. The size of the pores can vary depending on the size of the desired product. For isolation of EVs from proteins and lipoproteins, pore sizes can vary from ~40-80 nm. As the sample passes through the column, molecules smaller than the pore size will get trapped in the pores, slowing them down, while larger molecules will pass through. This results in the larger molecules, such as EVs, eluting from the column in earlier fractions, while smaller molecules, such as proteins and protein aggregates, are eluted in later fractions.

Alternate Names

EV isolation, exosome isolation, extracellular vesicle isolation

Additional EV SEC Columns Products

Product Documents for EV SEC Columns

Product Datasheets

Certificate of Analysis

To download a Certificate of Analysis, please enter a lot number in the search box below.

Product Specific Notices for EV SEC Columns

This product is for research use only and is not approved for use in humans or in clinical diagnosis. Support products are guaranteed for 6 months from date of receipt.
