CD31/PECAM-1 Antibody (JC/70A) - BSA Free

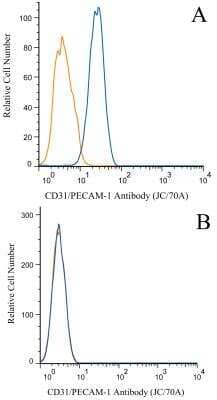

Flow Cytometry of HUVEC Cells Stained with CD31/PECAM-1 Antibody

A cell surface stain was performed on HUVEC cells with ( NB600-562, blue) along with a matched isotype control NBP2-27287 (orange). Cells were incubated in an antibody dilution of 1:100 for 20 minutes at RT. (Panel A). A negative control (HeLa cells) was also stained to ensure antibody specificity (Panel B).

Immunohistological Staining of CD31/PECAM-1 in Multiple Human Glioblastoma Sections

GMF-beta is involved in neovasculogenesis in human glioblastoma. A. Co-expression of GMF-beta and CD31/PECAM-1 in several tumor cells. B. The GMF-beta+/CD31+ incomplete microvessel-like structure in hypovascular zones. C. GMF-beta+/CD31+ immature microvessel in hypovascular zones. D. Single GMF-beta+/CD31+ mature microvessel in vascularized areas. E. GMF-beta-/CD31+ mature microvessels in vascularized areas. Red arrows denote GMF-beta staining, black arrows indicate CD31/PECAM-1 staining. Scale bar: 50 um. Image collected and cropped by CiteAb from the following publication (https://www.oncotarget.com/abstract/5509), licensed under a CC-BY license.

Immunohistological Analysis of CD31/PECAM-1 in Paraffin Embedded Human Spleen

Analysis of CD31/PECAM1 in human spleen using DAB with hematoxylin counterstain.

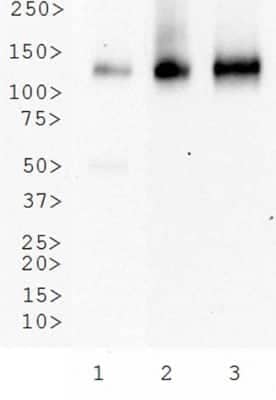

Western Blot Detection of CD31/PECAM-1 in Multiple Cell Lysates

Analysis of CD31/PECAM1 expression in 1) Jurkat whole cell lysate, 2) human platelet lysate and 3) U937 whole cell lysate.

Immunohistological Analysis of CD31/PECAM-1 in Frozen KC and Control Bladder Sections

Comparison of the expression of NMDAR1 on vessels and EndoMT markers in the urinary bladder.Biopsy specimens of frozen sections from the urinary bladders of (A, C, E) normal control subjects and (B, D, F) KC patients. (A, B) Double-immunofluorescence staining with antibody to endothelial marker CD31 (green) and NMDAR1 (red); DAPI was used as a nuclear stain (blue); co-expression of CD31 and NMDAR1 was evident in two groups (yellow, denoted by white arrows). (CF) Double-immunofluorescence staining with antibody to endothelial marker CD31 (green) and two mesenchymal markers: FSP1 (red, in panels C and D) and -SMA (red, in panels E and F); DAPI was used as a nuclear stain (blue); co-expression of CD31 and FSP1 or -SMA was evident in three groups (yellow, denoted by white arrows) (white bars: 50 m). Microvascular Injury in Ketamine-Induced Bladder Dysfunction. PLoS One (2016)

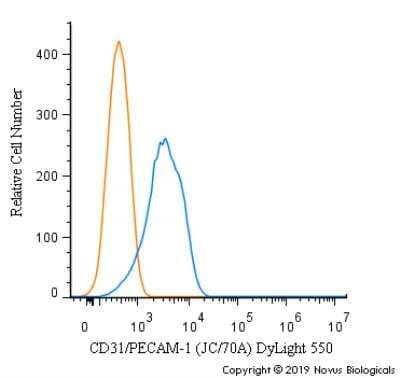

Flow Cytometry of Jurkat Cells Stained with DyLight 550 Conjugated CD31/PECAM-1 Antibody

A surface stain was performed on Jurkat cells with the Dylight 550 conjugate of CD31/PECAM-1 Antibody (JC/70A) (NB600-562R, blue) and a matched isotype control (orange). Cells were incubated in an antibody dilution of 5 ug/mL for 20 minutes at room temperature. Both antibodies were conjugated to DyLight 550.

Immunocytochemistry/Immunofluorescence Staining of CD31/PECAM-1 in HUVEC Cells

HUVEC cells were fixed for 10 minutes using 10% formalin and then permeabilized for 5 minutes using 1X TBS + 0.5% Triton X-100. The cells were incubated with CD31/PECAM-1 Antibody (JC/70A) at 2 ug/ml overnight at 4C and detected with an anti-mouse DyLight 488 (Green) at a 1:500 dilution. Actin was detected with Phalloidin 568 (Red) at a 1:200 dilution. Nuclei were counterstained with DAPI (Blue). Cells were imaged using a 40X objective.

Immunocytochemistry/Immunofluorescence Analysis of CD31/PECAM-1 in Feline Endothelial Cells

Imaging of Feline Endothelial cells with antibody dilution of 1:25. CD31/PECAM-1 (Red), DAPI (Blue). This image was submitted via customer Review.

Immunohistological Staining of CD31/PECAM-1 in Paraffin Embedded Human Tonsil

FFPE human tonsil stained with CD31/PECAM-1 Antibody (JC/70A).

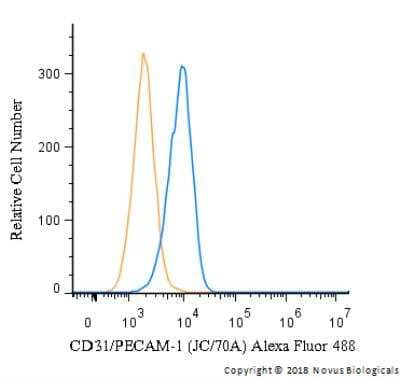

Flow Cytometry of Jurkat Cells Stained with Alexa Fluor 488 Conjugated CD31/PECAM-1 Antibody

A cell surface stain was performed on Jurkat cells with the Alexa Fluor 488 conjugate of CD31/PECAM-1 Antibody (JC/70A) (NB600-562AF488, blue) along with a matched isotype control. Cells were incubated in an antibody dilution of 10 ug/ml for 20 minutes at RT. Both antibodies were conjugated to Alexa Fluor 488.

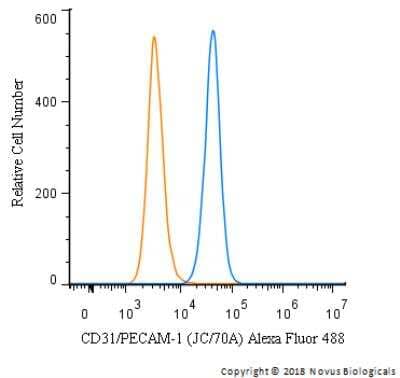

Flow Cytometry of THP-1 Cells Stained with Alexa Fluor 488 Conjugated CD31/PECAM-1 Antibody

A cell surface stain was performed on THP-1 cells with the Alexa Fluor 488 conjugate of CD31/PECAM-1 Antibody (JC/70A) NB600-562AF488 (blue) along with a matched isotype control. Cells were incubated in an antibody dilution of 5 ug/ml for 20 minutes at RT. Both antibodies were conjugated to Alexa Fluor 488.

Flow Cytometry of THP-1 Cells Stained with Alexa Fluor 647 Conjugated CD31/PECAM-1 Antibody

A surface stain was performed on THP-1 cells with the Alexa Fluor 647 conjugate of CD31/PECAM-1 Antibody (JC/70A) (NB600-562AF647, blue) and a matched isotype control (orange). Cells were incubated in an antibody dilution of 2.5 ug/mL for 20 minutes at room temperature. Both antibodies were conjugated to Alexa Fluor 647.

Immunocytochemistry/ Immunofluorescence: CD31/PECAM-1 Antibody (JC/70A) - BSA Free [NB600-562] -

Immunocytochemistry/ Immunofluorescence: CD31/PECAM-1 Antibody (JC/70A) - BSA Free [NB600-562] - Immunohistochemial comparison of the expression of NMDAR1 on vessels & EndoMT markers in the urinary bladder.Biopsy specimens of frozen sections from the urinary bladders of (A, C, E) normal control subjects & (B, D, F) KC patients. (A, B) Double-immunofluorescence staining with antibody to endothelial marker CD31 (green) & NMDAR1 (red); DAPI was used as a nuclear stain (blue); co-expression of CD31 & NMDAR1 was evident in two groups (yellow, denoted by white arrows). (C–F) Double-immunofluorescence staining with antibody to endothelial marker CD31 (green) & two mesenchymal markers: FSP1 (red, in panels C & D) & alpha-SMA (red, in panels E & F); DAPI was used as a nuclear stain (blue); co-expression of CD31 & FSP1 or alpha-SMA was evident in three groups (yellow, denoted by white arrows) (white bars: 50 μm). Image collected & cropped by CiteAb from the following publication (https://pubmed.ncbi.nlm.nih.gov/27529746), licensed under a CC-BY license. Not internally tested by Novus Biologicals.

Immunocytochemistry/ Immunofluorescence: CD31/PECAM-1 Antibody (JC/70A) - BSA Free [NB600-562] -

Immunocytochemistry/ Immunofluorescence: CD31/PECAM-1 Antibody (JC/70A) - BSA Free [NB600-562] - Immunohistochemial comparison of the expression of NMDAR1 on vessels & EndoMT markers in the urinary bladder.Biopsy specimens of frozen sections from the urinary bladders of (A, C, E) normal control subjects & (B, D, F) KC patients. (A, B) Double-immunofluorescence staining with antibody to endothelial marker CD31 (green) & NMDAR1 (red); DAPI was used as a nuclear stain (blue); co-expression of CD31 & NMDAR1 was evident in two groups (yellow, denoted by white arrows). (C–F) Double-immunofluorescence staining with antibody to endothelial marker CD31 (green) & two mesenchymal markers: FSP1 (red, in panels C & D) & alpha-SMA (red, in panels E & F); DAPI was used as a nuclear stain (blue); co-expression of CD31 & FSP1 or alpha-SMA was evident in three groups (yellow, denoted by white arrows) (white bars: 50 μm). Image collected & cropped by CiteAb from the following publication (https://pubmed.ncbi.nlm.nih.gov/27529746), licensed under a CC-BY license. Not internally tested by Novus Biologicals.

Immunocytochemistry/ Immunofluorescence: CD31/PECAM-1 Antibody (JC/70A) - BSA Free [NB600-562] -

Immunocytochemistry/ Immunofluorescence: CD31/PECAM-1 Antibody (JC/70A) - BSA Free [NB600-562] - Immunohistochemial comparison of the expression of NMDAR1 on vessels & EndoMT markers in the urinary bladder.Biopsy specimens of frozen sections from the urinary bladders of (A, C, E) normal control subjects & (B, D, F) KC patients. (A, B) Double-immunofluorescence staining with antibody to endothelial marker CD31 (green) & NMDAR1 (red); DAPI was used as a nuclear stain (blue); co-expression of CD31 & NMDAR1 was evident in two groups (yellow, denoted by white arrows). (C–F) Double-immunofluorescence staining with antibody to endothelial marker CD31 (green) & two mesenchymal markers: FSP1 (red, in panels C & D) & alpha-SMA (red, in panels E & F); DAPI was used as a nuclear stain (blue); co-expression of CD31 & FSP1 or alpha-SMA was evident in three groups (yellow, denoted by white arrows) (white bars: 50 μm). Image collected & cropped by CiteAb from the following publication (https://pubmed.ncbi.nlm.nih.gov/27529746), licensed under a CC-BY license. Not internally tested by Novus Biologicals.

Immunocytochemistry/ Immunofluorescence: CD31/PECAM-1 Antibody (JC/70A) - BSA Free [NB600-562] -

Immunocytochemistry/ Immunofluorescence: CD31/PECAM-1 Antibody (JC/70A) - BSA Free [NB600-562] - Immunohistochemial comparison of the expression of NMDAR1 on vessels & EndoMT markers in the urinary bladder.Biopsy specimens of frozen sections from the urinary bladders of (A, C, E) normal control subjects & (B, D, F) KC patients. (A, B) Double-immunofluorescence staining with antibody to endothelial marker CD31 (green) & NMDAR1 (red); DAPI was used as a nuclear stain (blue); co-expression of CD31 & NMDAR1 was evident in two groups (yellow, denoted by white arrows). (C–F) Double-immunofluorescence staining with antibody to endothelial marker CD31 (green) & two mesenchymal markers: FSP1 (red, in panels C & D) & alpha-SMA (red, in panels E & F); DAPI was used as a nuclear stain (blue); co-expression of CD31 & FSP1 or alpha-SMA was evident in three groups (yellow, denoted by white arrows) (white bars: 50 μm). Image collected & cropped by CiteAb from the following publication (https://pubmed.ncbi.nlm.nih.gov/27529746), licensed under a CC-BY license. Not internally tested by Novus Biologicals.

Immunocytochemistry/ Immunofluorescence: CD31/PECAM-1 Antibody (JC/70A) - BSA Free [NB600-562] -

Immunocytochemistry/ Immunofluorescence: CD31/PECAM-1 Antibody (JC/70A) - BSA Free [NB600-562] - Immunohistochemial comparison of the expression of NMDAR1 on vessels & EndoMT markers in the urinary bladder.Biopsy specimens of frozen sections from the urinary bladders of (A, C, E) normal control subjects & (B, D, F) KC patients. (A, B) Double-immunofluorescence staining with antibody to endothelial marker CD31 (green) & NMDAR1 (red); DAPI was used as a nuclear stain (blue); co-expression of CD31 & NMDAR1 was evident in two groups (yellow, denoted by white arrows). (C–F) Double-immunofluorescence staining with antibody to endothelial marker CD31 (green) & two mesenchymal markers: FSP1 (red, in panels C & D) & alpha-SMA (red, in panels E & F); DAPI was used as a nuclear stain (blue); co-expression of CD31 & FSP1 or alpha-SMA was evident in three groups (yellow, denoted by white arrows) (white bars: 50 μm). Image collected & cropped by CiteAb from the following publication (https://pubmed.ncbi.nlm.nih.gov/27529746), licensed under a CC-BY license. Not internally tested by Novus Biologicals.

Immunocytochemistry/ Immunofluorescence: CD31/PECAM-1 Antibody (JC/70A) - BSA Free [NB600-562] -

Immunocytochemistry/ Immunofluorescence: CD31/PECAM-1 Antibody (JC/70A) - BSA Free [NB600-562] - Immunohistochemial comparison of the expression of NMDAR1 on vessels & EndoMT markers in the urinary bladder.Biopsy specimens of frozen sections from the urinary bladders of (A, C, E) normal control subjects & (B, D, F) KC patients. (A, B) Double-immunofluorescence staining with antibody to endothelial marker CD31 (green) & NMDAR1 (red); DAPI was used as a nuclear stain (blue); co-expression of CD31 & NMDAR1 was evident in two groups (yellow, denoted by white arrows). (C–F) Double-immunofluorescence staining with antibody to endothelial marker CD31 (green) & two mesenchymal markers: FSP1 (red, in panels C & D) & alpha-SMA (red, in panels E & F); DAPI was used as a nuclear stain (blue); co-expression of CD31 & FSP1 or alpha-SMA was evident in three groups (yellow, denoted by white arrows) (white bars: 50 μm). Image collected & cropped by CiteAb from the following publication (https://pubmed.ncbi.nlm.nih.gov/27529746), licensed under a CC-BY license. Not internally tested by Novus Biologicals.

Immunocytochemistry/ Immunofluorescence: CD31/PECAM-1 Antibody (JC/70A) - BSA Free [NB600-562] -

Immunocytochemistry/ Immunofluorescence: CD31/PECAM-1 Antibody (JC/70A) - BSA Free [NB600-562] - Immunohistochemial comparison of the expression of NMDAR1 on vessels & EndoMT markers in the urinary bladder.Biopsy specimens of frozen sections from the urinary bladders of (A, C, E) normal control subjects & (B, D, F) KC patients. (A, B) Double-immunofluorescence staining with antibody to endothelial marker CD31 (green) & NMDAR1 (red); DAPI was used as a nuclear stain (blue); co-expression of CD31 & NMDAR1 was evident in two groups (yellow, denoted by white arrows). (C–F) Double-immunofluorescence staining with antibody to endothelial marker CD31 (green) & two mesenchymal markers: FSP1 (red, in panels C & D) & alpha-SMA (red, in panels E & F); DAPI was used as a nuclear stain (blue); co-expression of CD31 & FSP1 or alpha-SMA was evident in three groups (yellow, denoted by white arrows) (white bars: 50 μm). Image collected & cropped by CiteAb from the following publication (https://pubmed.ncbi.nlm.nih.gov/27529746), licensed under a CC-BY license. Not internally tested by Novus Biologicals.
