Human peripheral blood lymphocytes were stained with Mouse Anti-Human CD47 Monoclonal Antibody (Catalog # MAB4670, filled histogram) or isotype control antibody (Catalog # MAB002, open histogram), followed by Phycoerythrin-conjugated Anti-Mouse IgG Secondary Antibody (Catalog # F0102B). View our protocol for Staining Membrane-associated Proteins.

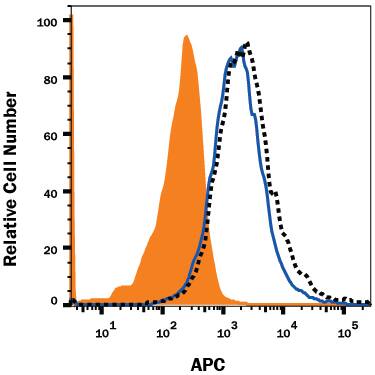

SIRP alpha/CD172a Binding to CD47-transfected HEK293 Human Cell Line is Blocked by Human CD47 Antibody.

In a functional flow cytometry test, biotinylated recombinant Human SIRPa/CD172a (100 ng/mL, Catalog # 4546-SA) binds to Human CD47-transfected HEK293 human embryonic kidney cell line (black dotted line). Binding is completely blocked (orange histogram) by 2.5 µg/mL of Mouse Anti-Human CD47 Monoclonal Antibody (Catalog # MAB4670). Mouse IgG₁isotype (Catalog # MAB002) at 2.5 µg/mL was used as a control (blue line). Cells were stained with Streptavidin-APC (Catalog # F0050).

Applications for Human CD47 Antibody

Application

Recommended Usage

Blockade of Receptor-ligand Interaction

In a functional flow cytometry test, 2.5 μg/mL of Mouse anti-Human CD47 Antibody (Catalog #MAB4670) will block the binding of 100 ng/mL Recombinant Human SIRP alpha/CD172a Fc Chimera (Catalog # 4546-SA) HEK293 human embryonic kidney cell line transfected with recombinant human CD47.

CyTOF-ready

Ready to be labeled using established conjugation methods. No BSA or other carrier proteins that could interfere with conjugation.

Flow Cytometry

0.25 µg/10⁶ cells
Sample: Human peripheral blood lymphocytes

Reviewed Applications

Read 2 reviews rated 5 using MAB4670 in the following applications:

Flow Cytometry (1 Review)
Immunocytochemistry/Immunofluorescence (1 Review)

Formulation, Preparation, and Storage

Purification

Protein A or G purified from hybridoma culture supernatant

Reconstitution

Reconstitute at 0.5 mg/mL in sterile PBS. For liquid material, refer to CoA for concentration.

Formulation

Lyophilized from a 0.2 μm filtered solution in PBS with Trehalose. *Small pack size (SP) is supplied either lyophilized or as a 0.2 µm filtered solution in PBS.

Shipping

Lyophilized product is shipped at ambient temperature. Liquid small pack size (-SP) is shipped with polar packs. Upon receipt, store immediately at the temperature recommended below.

Stability & Storage

Use a manual defrost freezer and avoid repeated freeze-thaw cycles.

12 months from date of receipt, -20 to -70 °C as supplied.
1 month, 2 to 8 °C under sterile conditions after reconstitution.
6 months, -20 to -70 °C under sterile conditions after reconstitution.

Background: CD47

CD47, also known as integrin-associated protein, is a ubiquitous 50 kDa multipass transmembrane protein with a single IgV-like domain at its N-terminus. CD47 binding to SIRP alpha prevents the phagocytic engulfment of viable cells. Thrombospondin interaction with CD47 on T cells reduces T cell proliferation and inflammatory reactions. Alternate splicing generates isoforms with truncated cytoplasmic domains. Within the N-terminal ECD, human CD47 shares 63% aa sequence identity with mouse and rat CD47.

Alternate Names

CD47, IAP, MER6, OA3

Entrez Gene IDs

961 (Human); 16423 (Mouse); 397042 (Porcine); 478552 (Canine); 102139846 (Cynomolgus Monkey)

Gene Symbol

CD47

UniProt

Q08722

Additional CD47 Products

Product Documents for Human CD47 Antibody

Product Datasheets

Download Product Datasheets

COA

SDS

Download SDS

Product Specific Notices for Human CD47 Antibody

For research use only

Citations
Reviews

Calculators
Flow Cytometry

Human CD47 Antibody

R&D Systems, part of Bio-Techne | Catalog # MAB4670

Key Product Details

Species Reactivity

Validated:

Cited:

Applications

Validated:

Cited:

Label

Antibody Source

View all CD47 Antibodies »

Product Specifications

Immunogen

Specificity

Clonality

Host

Isotype

Scientific Data Images for Human CD47 Antibody

Detection of CD47 in Human Lymphocytes by Flow Cytometry.
