RPMI8226 human myeloma cell line was stained with Mouse Anti-Human TLR7 Monoclonal Antibody (Catalog # MAB5875, filled histogram) or isotype control antibody (MAB003, open histogram), followed by Allophycocyanin-conjugated Anti-Mouse IgG F(ab')2Secondary Antibody (F0101B). To facilitate intracellular staining, cells were fixed with Flow Cytometry Fixation Buffer (FC004) and permeabilized with Flow Cytometry Permeabilization/Wash Buffer I (FC005). Staining was performed using our Staining Intracellular Molecules protocol.

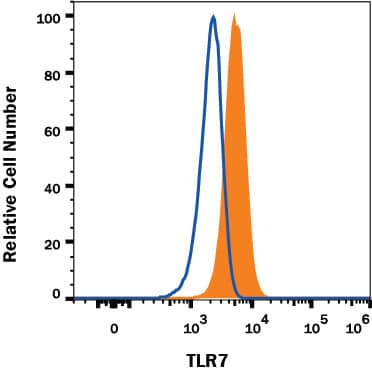

Detection of TLR7 in Ramos Human Cell Line by Flow Cytometry.

Ramos human Burkitt's lymphoma cell line was stained with Mouse Anti-Human TLR7 Monoclonal Antibody (Catalog # MAB5875, filled histogram) or isotype control antibody (Catalog # MAB003, open histogram), followed by Allophycocyanin-conjugated Anti-Mouse IgG F(ab')₂Secondary Antibody (Catalog # F0101B). To facilitate intracellular staining, cells were fixed with paraformaldehyde and permeabilized with saponin. View our protocol for Staining Intracellular Molecules.

Applications for Human TLR7 Antibody

Application

Recommended Usage

CyTOF-ready

Ready to be labeled using established conjugation methods. No BSA or other carrier proteins that could interfere with conjugation.

Intracellular Staining by Flow Cytometry

0.25 µg/10⁶ cells
Sample: RPMI8226 human myeloma cell line and Ramos human Burkitt's lymphoma cell line fixed with paraformaldehyde and permeabilized with saponin

Please Note: Optimal dilutions of this antibody should be experimentally determined.

Reviewed Applications

Read 1 review rated 3 using MAB5875 in the following applications:

CyTOF (1 Review)

Formulation, Preparation, and Storage

Purification

Protein A or G purified from hybridoma culture supernatant

Reconstitution

Reconstitute at 0.5 mg/mL in sterile PBS. For liquid material, refer to CoA for concentration.

Formulation

Lyophilized from a 0.2 μm filtered solution in PBS with Trehalose. *Small pack size (SP) is supplied either lyophilized or as a 0.2 µm filtered solution in PBS.

Shipping

Lyophilized product is shipped at ambient temperature. Liquid small pack size (-SP) is shipped with polar packs. Upon receipt, store immediately at the temperature recommended below.

Stability & Storage

Use a manual defrost freezer and avoid repeated freeze-thaw cycles.

12 months from date of receipt, -20 to -70 °C as supplied.
1 month, 2 to 8 °C under sterile conditions after reconstitution.
6 months, -20 to -70 °C under sterile conditions after reconstitution.

Background: TLR7

Toll-like receptor 7 (TLR7) is a 120 kDa (predicted, unglycosylated) type I transmembrane glycoprotein and member of the Toll-like receptor family. Human TLR7 is synthesized as a 1049 amino acid (aa) precursor that contains a 26 aa signal sequence, an 803 aa extracellular domain (ECD), a 21 aa transmembrane sequence, and a 189 aa cytoplasmic domain. Mature human TLR7 is 81% aa identical to mature mouse TLR7. TLR7 is detected in brain, placenta, spleen, stomach, small intestine, lung, and in plasmacytoid pre-dendritic cells. Functionally, TLR7 participates in the innate immune response to microbial agents.

Long Name

Toll-like Receptor 7

Alternate Names

toll-like receptor 7

Entrez Gene IDs

51284 (Human); 170743 (Mouse); 317468 (Rat)

Gene Symbol

TLR7

UniProt

Q9NYK1

Additional TLR7 Products

Product Documents for Human TLR7 Antibody

Product Datasheets

Download Product Datasheets

COA

SDS

Download SDS

Product Specific Notices for Human TLR7 Antibody

For research use only

Citations
Reviews

Calculators
Flow Cytometry

Human TLR7 Antibody

R&D Systems, part of Bio-Techne | Catalog # MAB5875

Key Product Details

Species Reactivity

Validated:

Cited:

Applications

Validated:

Cited:

Label

Antibody Source

View all TLR7 Antibodies »

Product Specifications

Immunogen

Specificity

Clonality

Host

Isotype

Scientific Data Images for Human TLR7 Antibody

Detection of TLR7 in RPMI8226 Human Cell Line by Flow Cytometry.
