Recombinant Human B7-H3 Fc Chimera Alexa Fluor® 647 Protein
R&D Systems, part of Bio-Techne | Catalog # AFR1027
Key Product Details
Learn more about FluorokinesTM Fluorescent-Labeled Proteins
Source
NS0
Accession #
Structure / Form
Disulfide-linked homodimer
Labeled with Alexa Fluor® 647
Excitation Wavelength: 650 nm
Emission Wavelength: 668 nm
Labeled with Alexa Fluor® 647
Excitation Wavelength: 650 nm
Emission Wavelength: 668 nm
Conjugate
Alexa Fluor 647 (Excitation= 650 nm, Emission= 668 nm)
Applications
Bioactivity
Product Specifications
Source
Mouse myeloma cell line, NS0-derived human B7-H3 protein
| Human B7-H3 (Leu29-Pro245) Accession # NP_079516.1 |
DIEGRMD | Human IgG1 (Pro100-Lys330) |
| N-terminus | C-terminus |
Purity
>95%, by SDS-PAGE visualized with Silver Staining and quantitative densitometry by Coomassie® Blue Staining.
Endotoxin Level
<1.0 EU per 1 μg of the protein by the LAL method.
N-terminal Sequence Analysis
Leu29
Predicted Molecular Mass
50 kDa (monomer)
SDS-PAGE
70-80 kDa, under reducing conditions.
Activity
Measured by flow cytometry for its ability to bind anti-human B7‑H3 Antibody conjugated beads. The concentration of Recombinant Human B7‑H3 Fc Chimera Alexa Fluor® 647 (Catalog # AFR1027) that produces 50% of the binding response is 6.00-60.0 ng/mL.
Scientific Data Images for Recombinant Human B7-H3 Fc Chimera Alexa Fluor® 647 Protein
Flow cytometry analysis for Recombinant Human B7‑H3 Fc Chimera Alexa Fluor® 647 staining on anti-human B7-H3 Antibody conjugated beads.
Streptavidin coated beads conjugated to biotinylated anti-human B7-H3 Antibody were stained with the indicated concentrations of Recombinant Human B7‑H3 Fc Chimera Alexa Fluor® 647 (Catalog # AFR1027).

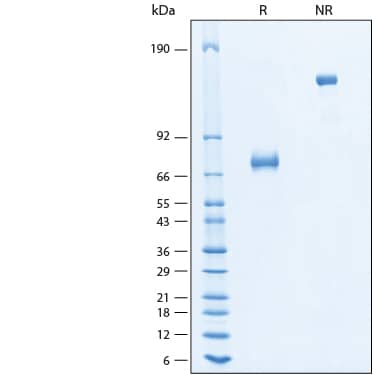

Recombinant Human B7-H3 Fc Chimera Alexa Fluor® 647 Protein SDS-PAGE.
2 μg/lane of Recombinant Human B7-H3 Fc Chimera Alexa Fluor® 647 Protein (Catalog # AFR1027) was resolved with SDS-PAGE under reducing (R) and non-reducing (NR) conditions and visualized by Coomassie® Blue staining, showing bands at 70-80 kDa and 140-160 kDa, respectively.Formulation, Preparation and Storage
AFR1027
| Formulation | Supplied as a 0.2 μm filtered solution in PBS with BSA as a carrier protein. |
| Shipping | The product is shipped with dry ice or equivalent. Upon receipt, store it immediately at the temperature recommended below. |
| Stability & Storage | Protect from light. Use a manual defrost freezer and avoid repeated freeze-thaw cycles.
|
Background: B7-H3
Human B7 homolog 3 (B7-H3) is a member of the B7 family of immune proteins that provide signals for regulating immune responses (1‑3). Other family members include B7-1, B7-2, B7-H2, PD-L1 (B7-H1), and PD-L2. B7 proteins are immunoglobulin (Ig) superfamily members with extracellular Ig-V-like and Ig-C-like domains and short cytoplasmic domains. Among the family members, they share about 20-40% amino acid (aa) sequence identity. The cloned human B7-H3 cDNA encodes a 316 aa type I membrane precursor protein with a putative 28 aa signal peptide, a 217 aa extracellular region containing one V-like and one C-like Ig domain, a transmembrane region, and a 45 aa cytoplasmic domain. An isoform of human B7-H3 containing a four-Ig-like domain extracellular region has also been identified. Human B7-H3 is not expressed on resting B cells, T cells, monocytes or dendritic cells, but is induced on dendritic cells and monocytes by inflammatory cytokines. B7-H3 expression is also detected on various normal tissues and in some tumor cell lines. Human B7-H3 does not bind any known members of the CD28 family of immunoreceptors. However, B7-H3 has been shown to bind an unidentified counter-receptor on activated T cells to costimulate the proliferation of CD4+ or CD8+ T cells. B7-H3 has also been found to enhance the induction of primary cytotoxic T lymphocytes and stimulate IFN-gamma production (1-3).
References
- Chapoval, A.I. et al. (2001) Nat. Immunol. 2:269.
- Sharpe, A.H. and G.J. Freeman (2002) Nat. Rev. Immunol. 2:116.
- Coyle, A. and J. Gutierrez-Ramos (2001) Nat. Immunol. 2:203.
Long Name
B7 Homolog 3
Alternate Names
B7H3, CD276
Gene Symbol
CD276
UniProt
Additional B7-H3 Products
Product Documents for Recombinant Human B7-H3 Fc Chimera Alexa Fluor® 647 Protein
Product Specific Notices for Recombinant Human B7-H3 Fc Chimera Alexa Fluor® 647 Protein
This product is provided under an agreement between Life Technologies Corporation and R&D Systems, Inc, and the manufacture, use, sale or import of this product is subject to one or more US patents and corresponding non-US equivalents, owned by Life Technologies Corporation and its affiliates. The purchase of this product conveys to the buyer the non-transferable right to use the purchased amount of the product and components of the product only in research conducted by the buyer (whether the buyer is an academic or for-profit entity). The sale of this product is expressly conditioned on the buyer not using the product or its components (1) in manufacturing; (2) to provide a service, information, or data to an unaffiliated third party for payment; (3) for therapeutic, diagnostic or prophylactic purposes; (4) to resell, sell, or otherwise transfer this product or its components to any third party, or for any other commercial purpose. Life Technologies Corporation will not assert a claim against the buyer of the infringement of the above patents based on the manufacture, use or sale of a commercial product developed in research by the buyer in which this product or its components was employed, provided that neither this product nor any of its components was used in the manufacture of such product. For information on purchasing a license to this product for purposes other than research, contact Life Technologies Corporation, Cell Analysis Business Unit, Business Development, 29851 Willow Creek Road, Eugene, OR 97402, Tel: (541) 465-8300. Fax: (541) 335-0354.
For research use only
