Recombinant Human Integrin alpha 4 beta 7/LPAM 1 Protein, CF

R&D Systems, part of Bio-Techne | Catalog # 11509-A3

Fc Chimera
R&D Systems, part of Bio-Techne
Catalog #
Availability
Size / Price
Qty
Loading...
11509-A3-050

Key Product Details

Source

HEK293

Structure / Form

Disulfide-linked heterodimer

Conjugate

Unconjugated

Applications

Bioactivity

Product Specifications

Source

Human embryonic kidney cell, HEK293-derived human Integrin alpha 4 beta 7/LPAM-1 protein
Human ITGA4
(Tyr34-Gln970,R591L & R878Q)
Accession # P13612.3
IEGR Human IgG1
(Glu99-Lys330) (with modifications)
Human ITGB7
(Glu20-His723)
Accession # P26010.1
IEGR Human IgG1
(Glu99-Lys330) (with modifications)
N-terminus C-terminus

Purity

>95%, by SDS-PAGE visualized with Silver Staining and quantitative densitometry by Coomassie® Blue Staining.

Endotoxin Level

<0.10 EU per 1 μg of the protein by the LAL method.

N-terminal Sequence Analysis

Tyr34 (Integrin alpha 4) & Glu20 (Integrin beta 7)

Predicted Molecular Mass

130 kDa (Integrin alpha 4) & 104 kDa (Integrin beta 7)

SDS-PAGE

115-135 kDa (Integrin beta 7) & 140-160 kDa (Integrin alpha 4), under reducing conditions.

Activity

Measured by its binding ability in a functional ELISA.
Recombinant Human Integrin alpha4 beta7/LPAM-1 Fc Chimera (Catalog # 11509-A3) binds Recombinant Human MAdCAM-1 Fc Chimera (Catalog # 6056-MC) with an ED50 of 30.0-450 ng/mL.

Scientific Data Images for Recombinant Human Integrin alpha 4 beta 7/LPAM 1 Protein, CF

Recombinant Human Integrin alpha 4 beta 7/LPAM‑1 Fc Chimera Protein Binding Activity.

Recombinant Human Integrin alpha 4 beta 7/LPAM-1 Fc Chimera Protein (Catalog # 11509-A3) binds Recombinant Human MAdCAM-1 Fc Chimera (6056-MC) with an ED50 of 30.0-450 ng/mL.

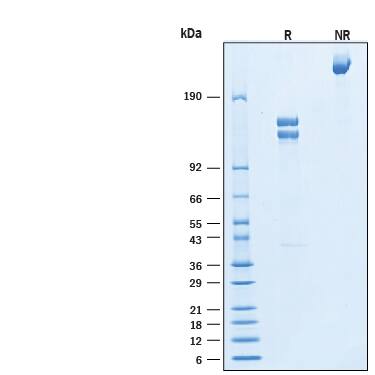

Recombinant Human Integrin alpha 4 beta 7/LPAM‑1 Fc Chimera Protein SDS-PAGE.

2 μg/lane of Recombinant Human Integrin alpha 4 beta 7/LPAM‑1 Fc Chimera Protein (Catalog # 11509-A3) was resolved with SDS-PAGE under reducing (R) and non-reducing (NR) conditions and visualized by Coomassie® Blue staining, showing bands at 115-135 kDa (Integrin beta 7) & 140-160 kDa (Integrin alpha 4), under reducing conditions and 250-280 kDa under non-reducing conditions.

Formulation, Preparation and Storage

11509-A3
Formulation Lyophilized from a 0.2 μm filtered solution in PBS with Trehalose.
Reconstitution Reconstitute at 500 μg/mL in PBS.
Shipping The product is shipped at ambient temperature. Upon receipt, store it immediately at the temperature recommended below.
Stability & Storage Use a manual defrost freezer and avoid repeated freeze-thaw cycles.
  • 12 months from date of receipt, -20 to -70 °C as supplied.
  • 1 month, 2 to 8 °C under sterile conditions after reconstitution.
  • 3 months, -20 to -70 °C under sterile conditions after reconstitution.

Background: Integrin alpha 4 beta 7/LPAM-1

Integrin alpha4 beta7 is an integrin family adhesion receptor that shares subunits with alpha4 beta1 (VLA4) and the E-Cadherin receptor, alphaE beta7 (1). It is a non-covalent heterodimer composed of two type I transmembrane glycoprotein subunits, a 150 kDa alpha4 (CD49d) subunit and a 130 kDa beta7 subunit (2, 3). The alpha4 extracellular domain (ECD) contains an N-terminal beta-propeller structure followed by thigh, calf-1, and calf-2 domains (1). The beta7 ECD contains a vWFA domain, which interacts with the
alpha4 beta-propeller to form a binding domain. Metal ion binding sites termed MIDAS and LIMBS promote firm adhesion, and another site termed ADMIDAS is a negative regulatory site that promotes rolling (4-6). The human alpha4 ECD shares 85% amino acid sequence identity with the mouse, rat, and canine alpha4 ECD. The human beta7 ECD shares 88% and 87% amino acid sequence identity with the rat and mouse beta7 ECD, respectively. Integrin alpha4 beta7 binds the mucosal addressin MAdCAM-1, as well as VCAM-1 and Fibronectin (7). Integrin alpha4 beta7, which is critical for homing to intestinal mucosa, is induced during T cell activation in Peyer’s patches or mesenteric lymph nodes (8, 9). Its expression requires signals from local dendritic and stromal cells, including secreted retinoic acid (10, 11). The HIV-1 envelope protein gp120 binds to the active form of Integrin alpha4 beta7, and this may or may not account for the concentration of HIV-1 virus in the gut-associated lymphoid tissue (GALT) (12-14). Integrin  alpha4 beta7 may also be involved in lymphocyte trafficking in acute intestinal graft vs. host disease (GVHD) (15).

References

  1. Luo, B.H. et al. (2007) Annu. Rev. Immunol. 25:619.
  2. Takada, Y. et al. (1989) EMBO J. 8:1361.
  3. Erle, D.J. et al. (1991) J. Biol. Chem. 266:11009.
  4. Chen, J. et al. (2004) J. Biol. Chem. 279:55556.
  5. Park, E.J. et al. (2007) J. Clin. Invest. 117:2526.
  6. Yu, Y. et al. (2012) J. Cell Biol. 196:131.
  7. Yang, Y. et al. (1998) Eur. J. Immunol. 28:995.
  8. Wagner, N. et al. (1996) Nature 382:366.
  9. Johansson-Lindbom, B. and W.W. Agace (2007) Immunol. Rev. 215:226.
  10. Hammerschmidt, S.I. et al. (2008) J. Exp. Med. 205:2483.
  11. Edele, F. et al. (2008) J. Immunol. 181:3745.
  12. Arthos, J. et al. (2008) Nat. Immunol. 9:301.
  13. Cicala, C. et al. (2009) Proc. Natl. Acad. Sci. USA 106:20877.
  14. Monteiro, P. et al. (2011) J. Immunol. 186:4618.
  15. Chen, Y.B. et al. (2013) Bone Marrow Transplant. 48:598.

Alternate Names

CD49d/beta7, LPAM-1, LPAM1

Entrez Gene IDs

3676 (Human); 16402 (Mouse)

Gene Symbol

ITGA4
