Western blot shows lysates of SK-BR-3 human breast cancer cell line, mouse uterus tissue, and rat placenta tissue. PVDF membrane was probed with 1 µg/mL of Rat Anti-Human/Mouse/Rat B7-H4 Monoclonal Antibody (Catalog # MAB21542) followed by HRP-conjugated Anti-Rabbit IgG Secondary Antibody (Catalog # HAF008). Specific bands were detected for B7-H4 at approximately 60-85 kDa (as indicated). This experiment was conducted under reducing conditions and using Immunoblot Buffer Group 1.

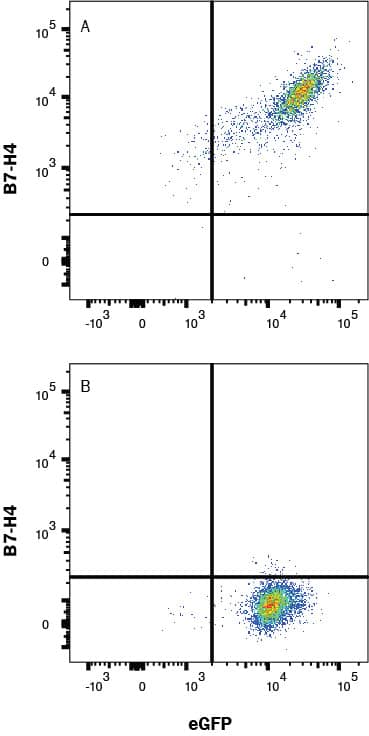

Detection of B7-H4 in HEK293 Human Cell Line Transfected with Mouse B7-H4 and eGFP by Flow Cytometry.

HEK293 human embryonic kidney cell line transfected with either (A) mouse B7-H4 or (B) irrelevant protein and eGFP was stained with Rabbit Anti-Human/Mouse B7-H4 Monoclonal Antibody (Catalog # MAB21542) followed by APC-conjugated Goat anti-Rabbit IgG Secondary Antibody (F0111). Quadrant markers were set based on Rabbit IgG control antibody staining (MAB1050). Staining was performed using our Staining Membrane-associated Proteins protocol.

B7‑H4 in RAW 264.7 Mouse Cell Line.

B7-H4 was detected in immersion fixed RAW 264.7 mouse monocyte/macrophage cell line using Rat Anti-Mouse B7-H4 Monoclonal Antibody (Catalog # MAB21542) at 3 µg/mL for 3 hours at room temperature. Cells were stained using the NorthernLights™ 557-conjugated Anti-Rabbit IgG Secondary Antibody (red; Catalog # NL004) and counterstained with DAPI (blue). Specific staining was localized to cytoplasm. View our protocol for Fluorescent ICC Staining of Cells on Coverslips.

View 1 more images

Applications for Human/Mouse/Rat B7-H4 Antibody

Application

Recommended Usage

CyTOF-ready

Ready to be labeled using established conjugation methods. No BSA or other carrier proteins that could interfere with conjugation.

Flow Cytometry

0.25 µg/10⁶ cells
Sample: HEK293 Human Cell Line Transfected with Mouse B7-H4 and eGFP

Immunocytochemistry

3-25 µg/mL
Sample: Immersion fixed RAW 264.7 mouse monocyte/macrophage cell line

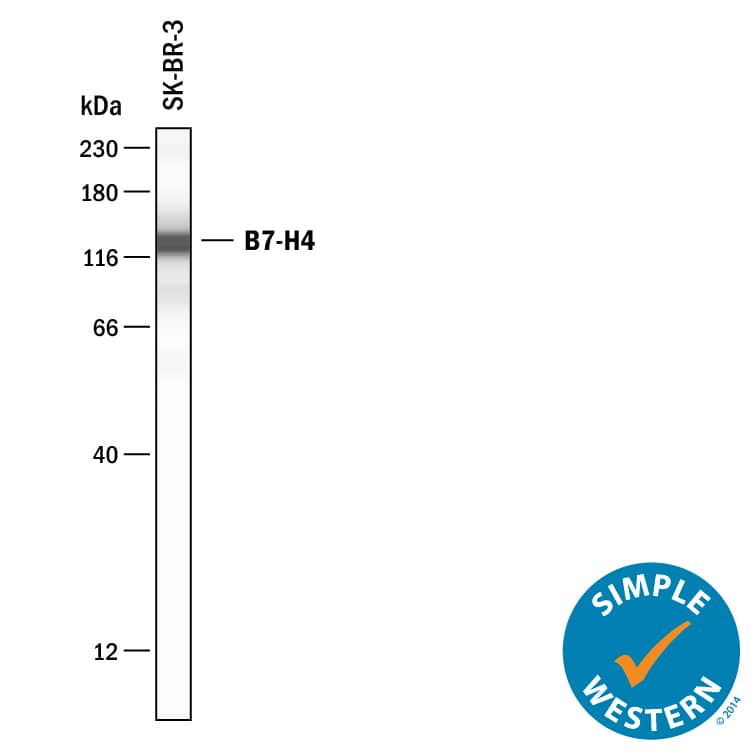

Simple Western

10 µg/mL
Sample: SK‑BR‑3 human breast cancer cell line

Western Blot

1 µg/mL
Sample: SK‑BR‑3 Human breast cancer cell line, Mouse uterus tissue, and Rat placenta tissue

Formulation, Preparation, and Storage

Purification

Protein A or G purified from cell culture supernatant

Reconstitution

Reconstitute at 0.5 mg/mL in sterile PBS. For liquid material, refer to CoA for concentration.

Formulation

Lyophilized from a 0.2 μm filtered solution in PBS with Trehalose. *Small pack size (SP) is supplied either lyophilized or as a 0.2 µm filtered solution in PBS.

Shipping

Lyophilized product is shipped at ambient temperature. Liquid small pack size (-SP) is shipped with polar packs. Upon receipt, store immediately at the temperature recommended below.

Stability & Storage

Use a manual defrost freezer and avoid repeated freeze-thaw cycles.

12 months from date of receipt, -20 to -70 °C as supplied.
1 month, 2 to 8 °C under sterile conditions after reconstitution.
6 months, -20 to -70 °C under sterile conditions after reconstitution.

Background: B7-H4

B7-H4, also known as B7x and B7S1, belongs to the B7 family of costimulatory proteins and contains two extracellular Ig-like domains. B7-H4 is expressed on T cells, B cells, monocytes/macrophages, dendritic cells, and some tumor cells. B7-H4 signaling inhibits T cell activation, proliferation and maturation.

Long Name

B7 Homolog 4

Alternate Names

B7H4, B7S1, B7x, Vtcn1

Entrez Gene IDs

79679 (Human); 242122 (Mouse); 295322 (Rat)

Gene Symbol

VTCN1

UniProt

Q7TSP5

Additional B7-H4 Products

Product Documents for Human/Mouse/Rat B7-H4 Antibody

Product Datasheets

Download Product Datasheets

COA

SDS

Download SDS

Product Specific Notices for Human/Mouse/Rat B7-H4 Antibody

For research use only

Citations
Reviews

Calculators
Flow Cytometry

Human/Mouse/Rat B7-H4 Antibody

R&D Systems, part of Bio-Techne | Catalog # MAB21542

Key Product Details

Species Reactivity

Applications

Label

Antibody Source

View all B7-H4 Antibodies »

Product Specifications

Immunogen

Specificity

Clonality

Host

Isotype

Scientific Data Images for Human/Mouse/Rat B7-H4 Antibody

Detection of Human., Mouse, and Rat B7‑H4 by Western Blot.
