Human TIM-1/KIM-1/HAVCR DuoSet ELISA

R&D Systems, part of Bio-Techne | Catalog # DY1750B

R&D Systems, part of Bio-Techne
Catalog #
Availability
Size / Price
Qty
Loading...
DY1750B

Ancillary Products Available

Key Product Details

Assay Type

Solid Phase Sandwich ELISA

Assay Range

15.6-1000 pg/mL

Sample Type

Cell culture supernates, serum, and plasma
Note: Diluents for complex matrices, such as serum and plasma, should be evaluated prior to use in this DuoSet

Reactivity

Human

Human TIM-1/KIM-1/HAVCR DuoSet ELISA Features

  • Optimized capture and detection antibody pairings with recommended concentrations save lengthy development time
  • Development protocols are provided to guide further assay optimization
  • Assay can be customized to your specific needs
  • Economical alternative to complete kits

Product Summary for Human TIM-1/KIM-1/HAVCR DuoSet ELISA

This DuoSet ELISA Development kit contains the basic components required for the development of sandwich ELISAs to measure natural and recombinant human T cell Immunoglobulin Mucin-1 (TIM-1). The suggested diluent is suitable for the analysis of most cell culture supernate, serum, plasma, and urine samples. Diluents for complex matrices, such as serum, plasma, and urine, should be evaluated prior to use in this DuoSet.

Product Specifications

Assay Format

96-well strip plate (sold separately)

Detection Method

Colorimetric ELISA - 450nm (TMB)

Conjugate

Biotin

Label

HRP

Scientific Data Images for Human TIM-1/KIM-1/HAVCR DuoSet ELISA

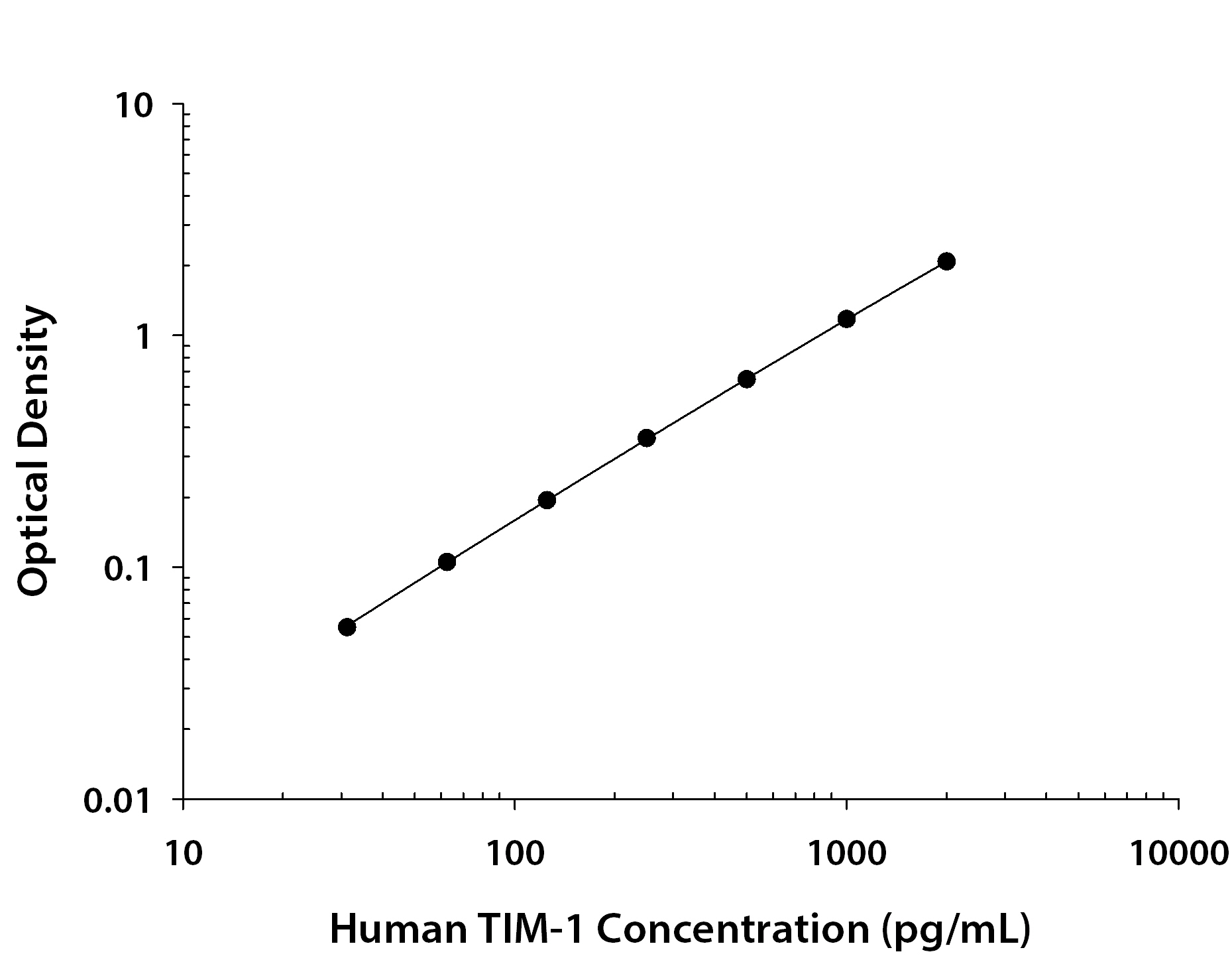

Human TIM-1 / KIM-1 / HAVCR ELISA Standard Curve

Human TIM-1 / KIM-1 / HAVCR ELISA Standard Curve

Human TIM-1/KIM-1/HAVCR ELISA Standard Curve

Kit Contents for Human TIM-1/KIM-1/HAVCR DuoSet ELISA

  • Capture Antibody
  • Detection Antibody
  • Recombinant Standard
  • Streptavidin conjugated to horseradish-peroxidase (Streptavidin-HRP)

Other Reagents Required

DuoSet Ancillary Reagent Kit 2 (5 plates): (Catalog # DY008) containing 96 well microplates, plate sealers, substrate solution, stop solution, plate coating buffer (PBS), wash buffer, and Reagent Diluent Concentrate 2.

The components listed above may be purchased separately:

PBS: (Catalog # DY006), or 137 mM NaCl, 2.7 mM KCl, 8.1 mM Na2HPO4, 1.5 mM KH2PO4, pH 7.2 - 7.4, 0.2 µm filtered

Wash Buffer: (Catalog # WA126), or 0.05% Tween® 20 in PBS, pH 7.2-7.4

Reagent Diluent: (Catalog # DY995), or 1% BSA in PBS, pH 7.2-7.4, 0.2 µm filtered

Substrate Solution: 1:1 mixture of Color Reagent A (H2O2) and Color Reagent B (Tetramethylbenzidine) (Catalog # DY999)

Stop Solution: 2 N H2SO4 (Catalog # DY994)

Microplates: R&D Systems (Catalog # DY990)

Plate Sealers: ELISA Plate Sealers (Catalog # DY992)

Preparation and Storage

Shipping

The product is shipped at ambient temperature. Upon receipt, store it immediately at the temperature recommended below.

Stability & Storage

Store the unopened product at 2 - 8 °C. Do not use past expiration date.

Background: TIM-1/KIM-1/HAVCR

T cell immunoglobulin and mucin domain 1 (TIM-1), also known as Kidney injury molecule 1 (KIM-1) and Hepatitis A virus cellular receptor 1 (HAVcr1), is a member of the TIM family which is involved in the regulation of innate and adaptive immune responses (1, 2). TIM-1 is a type I transmembrane protein that contains an N-terminal immunoglobulin-like domain, a mucin domain with O- and N-linked glycosylations, a transmembrane segment, and a cytoplasmic signaling domain (3, 4). Multiple TIM-1 variants can be produced due to polymorphisms or alternative splicing resulting in deletions in the mucin domain (3). Some of these polymorphisms are associated with susceptibility to atopy, autoimmunity, and severe hepatitis A virus infection in humans (5). Within the extracellular domain, human TIM-1 shares 41% amino acid sequence identity with mouse and rat TIM-1.
In vivo, TIM-1 is expressed on splenic B cells and is a marker for the identification of IL-10+ regulatory B cells (6, 7). TIM-1 is also expressed on CD4+ T cells, mast cells, invariant NKT (iNKT) cells, dendritic cells, kidney epithelium and a broad range of mucosal epithelium (4, 8-15). The expression of TIM-1 is upregulated on activated Th2 cells, after dendritic cell maturation, and on kidney tubular epithelial cells after injury (4, 9, 13, 14, 16, 17). Metalloproteinase-mediated cleavage of TIM-1 at the membrane-proximal region results in the release of a soluble form of TIM-1 which is detectable in the urine and in circulation (18, 19). Urinary TIM-1 is highly elevated in nephropathy and may be a useful biomarker for renal damage (16, 20 - 25).
TIM-1 has been reported to be a receptor for a number of ligands, including phosphatidylserine, leukocyte mono-immunoglobulin-like receptor 5 (LMIR5/CD300b), TIM-1 (homophilic), TIM-4, IgA, and the glycoproteins of a number of enveloped viruses (5, 15, 26-33). Its interaction with phosphatidylserine enables TIM-1 to mediate the phagocytosis of apoptotic cells (26-28). In TIM-1-bearing iNKT cells, interaction with apoptotic cells can also result in iNKT cell activation, proliferation, and cytokine production (11). Interactions between cell-surface or soluble TIM-1 with LMIR5 is proposed to induce LMIR5-mediated activation of myeloid cells including macrophages/monocytes, mast cells, neutrophils, and dendritic cells (29). These interactions contribute to tissue homeostasis and damage during kidney injury (29). Ligandinduced TIM-1 signaling costimulates T cell activation and enhances Th2 cytokine production (9, 31, 34). In humans, TIM-1 serves as a cellular entry receptor for various viruses, including hepatitis A virus, Ebolavirus and Marburgvirus (15, 33).

Long Name

T Cell Immunoglobulin Mucin-1

Alternate Names

CD365, HAVCR1, KIM-1, TIM1

Entrez Gene IDs

26762 (Human); 171283 (Mouse); 286934 (Rat); 102141332 (Cynomolgus Monkey)

Gene Symbol

HAVCR1

Additional TIM-1/KIM-1/HAVCR Products

Product Documents for Human TIM-1/KIM-1/HAVCR DuoSet ELISA

Certificate of Analysis

To download a Certificate of Analysis, please enter a lot number in the search box below.

Note: Certificate of Analysis not available for kit components.

Product Specific Notices for Human TIM-1/KIM-1/HAVCR DuoSet ELISA

For research use only
