ARNT/HIF-1 beta Antibody (H1beta234) - Azide and BSA Free

Novus Biologicals, part of Bio-Techne | Catalog # NBP2-80582

Novus Biologicals, part of Bio-Techne

Key Product Details

Validated by

Biological Validation

Species Reactivity

Validated:

Human, Mouse, Rat, Bovine, Ferret, Primate, Sheep

Applications

Chromatin Immunoprecipitation (ChIP), Gel Super Shift Assays, Immunoblotting, Immunocytochemistry/ Immunofluorescence, Immunohistochemistry, Immunohistochemistry-Paraffin, Immunoprecipitation, Western Blot

Label

Unconjugated

Antibody Source

Monoclonal Mouse IgG1 kappa Clone # H1beta234

Format

Azide and BSA Free

Concentration

1 mg/ml

View all ARNT/HIF-1 beta Antibodies »

Product Summary for ARNT/HIF-1 beta Antibody (H1beta234) - Azide and BSA Free

Immunogen

ARNT/HIF-1 beta Antibody (H1beta234) was developed against a fusion protein containing amino acids 496-789 of human HIF-1 beta.

Clonality

Monoclonal

Host

Mouse

Isotype

IgG1 kappa

Theoretical MW

86.6 kDa.
Disclaimer note: The observed molecular weight of the protein may vary from the listed predicted molecular weight due to post translational modifications, post translation cleavages, relative charges, and other experimental factors.

Scientific Data Images for ARNT/HIF-1 beta Antibody (H1beta234) - Azide and BSA Free

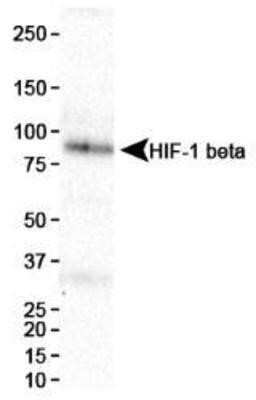

Western Blot: ARNT/HIF-1 beta Antibody (H1beta234)Azide and BSA Free [NBP2-80582]

Western Blot: ARNT/HIF-1 beta Antibody (H1beta234)Azide and BSA Free [NBP2-80582]

Western Blot: ARNT/HIF-1 beta Antibody (H1beta234) - Azide and BSA Free [NBP2-80582] - HIF was not the only factor stabilizing activated EGFR in VHL-deficient ccRCC cells. A. Western blot analysis of 786-VHL and 786-mock cells stably expressing shRNA constructs. For HIF2A (NB100-480) and ARNT/HIF-1 beta antibody (H1beta234) [NB100-124] analysis, nuclear extracts were generated and analyzed. Anti-HA blot detected HA-VHL. Means and SDs of three separate experiments were shown. Theoretical molecular weight for ARNT/HIF-1 beta antibody (H1beta234) is 86.6 kDa. Observed molecular weight ~ 90 kDa. Image collected and cropped by CiteAb from the following publication (//dx.plos.org/10.1371/journal.pone.0023936) licensed under a CC-BY license. Image from the standard format of this antibody.
Immunocytochemistry/ Immunofluorescence: ARNT/HIF-1 beta Antibody (H1beta234) - Azide and BSA Free [NBP2-80582]

Immunocytochemistry/ Immunofluorescence: ARNT/HIF-1 beta Antibody (H1beta234) - Azide and BSA Free [NBP2-80582]

Immunocytochemistry/Immunofluorescence: ARNT/HIF-1 beta Antibody (H1beta234) - Azide and BSA Free [NBP2-80582] - HeLa cells were fixed for 10 minutes using 10% formalin and then permeabilized for 5 minutes using 1X TBS + 0.5% Triton X-100. The cells were incubated with ARNT/HIF-1 beta antibody (H1beta234) at 5 ug/mL overnight at 4C and detected with an anti-mouse DyLight 488 (Green) at a 1:500 dilution. Actin was detected with Phalloidin 568 (Red) at a 1:200 dilution. Nuclei were counterstained with DAPI (Blue). Cells were imaged using a 40X objective. Image from the standard format of this antibody.
Immunohistochemistry: ARNT/HIF-1 beta Antibody (H1beta234) - Azide and BSA Free [NBP2-80582]

Immunohistochemistry: ARNT/HIF-1 beta Antibody (H1beta234) - Azide and BSA Free [NBP2-80582]

Immunohistochemistry: ARNT/HIF-1 beta Antibody (H1beta234) - Azide and BSA Free [NBP2-80582] - Staining of human glioblastoma multi-forme utilizing ARNT/HIF-1 beta antibody (H1beta234). Image from the standard format of this antibody.
View 3 more images

Applications for ARNT/HIF-1 beta Antibody (H1beta234) - Azide and BSA Free

Application
Recommended Usage

Chromatin Immunoprecipitation (ChIP)

1:10-1:500

Gel Super Shift Assays

reported in scientific literature (PMID 11325839)

Immunoblotting

1:100 - 1:2000

Immunocytochemistry/ Immunofluorescence

reported in scientific literature (PMID 25343232)

Immunohistochemistry

1:100

Immunohistochemistry-Paraffin

1:100

Western Blot

1:500 - 1:2000
Application Notes
In Western blot, a band at approximately 92 kDa is seen.
Please Note: Optimal dilutions of this antibody should be experimentally determined.

Formulation, Preparation, and Storage

Purification

Protein G purified

Formulation

PBS

Format

Azide and BSA Free

Preservative

No Preservative

Concentration

1 mg/ml

Shipping

The product is shipped with polar packs. Upon receipt, store it immediately at the temperature recommended below.

Stability & Storage

Aliquot and store at -20C or -80C. Avoid freeze-thaw cycles.

Background: ARNT/HIF-1 beta

Aryl hydrocarbon nuclear translocator (ARNT), also commonly known as Hypoxia-inducible factor 1-beta (HIF-1 beta), is a ubiquitously expressed transcription factor that is part of the basic-helix-loop-helix (bHLH)-Per-ARNT-Sim (PAS) family (1, 2). Human arnt is located on chromosome 1q21 and encodes a protein 789 amino acids (aa) in length with a theoretical molecular weight of 87 kDa (1). Structurally, ARNT has a DNA binding bHLH domain, two PAS domains required for dimerization, and a transactivation domain/PAC region (1). ARNT belongs to the Class II bHLH-PAS proteins and is able to homodimerize or heterodimerize with the Class I proteins including AHA, AHRR, HIF-1 alpha, HIF-2 alpha, NPAS1, and SIM1 (2). Dimerization allows for efficient DNA binding and regulation of their target genes (2).

ARNT has an important role in two specific signaling pathways - the aryl hydrocarbon receptor (AhR) and the hypoxia inducible factor (HIF) pathway (1). In the AhR pathway, AhR in the cytosol is typically inactive and bound to heat shock protein 90 (hsp90) (3). Upon activation and ligand binding by environmental pollutants such as dioxins, AhR is translocated to the nucleus, dissociates from hsp90, and dimerizes with ARNT, leading to binding to response elements and expression of target genes including monooxygenases (1, 3). In the HIF pathway, under hypoxia (low oxygen) conditions prolylhydroxylase domain (PHD) enzymes and factor inhibiting HIF (FIH) are inhibited. HIF-1 alpha (or HIF-2 alpha) accumulates and is transported to the nucleus where it heterodimerizes with ARNT, allowing for binding to target gene's hypoxia response element (HRE), recruitment of coactivators, and transcription (1, 3). HIF-induced gene transcription plays a large role in tumor progression by promoting invasion, metastasis, de-differentiation and altered metabolism, and angiogenesis (1). While HIF-1 alpha's stability is dependent upon oxygen conditions, HIF-1 beta is stable in both normoxia and hypoxia (1-3).

The bHLH-PAS family and ARNT have been linked with a variety of pathologies and diseases including cancer, metabolic diseases, autoimmune diseases, and psychiatric disorders (2). ARNT/AHR is expressed in the skin and its pathway activation enhances skin barrier function and epidermal terminal differentiation, thus AHR agonists are currently being used as therapeutics for atopic dermatitis and psoriasis (4). Accordingly, studies of Arnt-deficient mice show profound abnormalities in skin barrier function and keratinization (4). Additionally, studies suggest that ARNT plays an important role in diabetes and beta-cell function (5). Islets from patients with type 2 diabetes have a significantly decreased ARNT expression compared to glucose-tolerant control donors (5). Modulation and stimulation of the HIF pathway may be a potential therapeutic strategy for treating type 2 diabetes and metabolic syndrome (5).

Alternate names for ARNT/HIF-1 beta include aryl hydrocarbon receptor nuclear translocator, BHLHE2, class E basic helix-loop-helix protein 2, Dixon receptor nuclear translocator, Hypoxia-inducible factor 1-beta, nuclear translocator, and TANGO.

References

1. Mandl, M., & Depping, R. (2014). Hypoxia-inducible aryl hydrocarbon receptor nuclear translocator (ARNT) (HIF-1beta): is it a rare exception?. Molecular medicine (Cambridge, Mass.). https://doi.org/10.2119/molmed.2014.00032

2. Wu, D., & Rastinejad, F. (2017). Structural characterization of mammalian bHLH-PAS transcription factors. Current opinion in structural biology. https://doi.org/10.1016/j.sbi.2016.09.011

3. Esser, C., & Rannug, A. (2015). The aryl hydrocarbon receptor in barrier organ physiology, immunology, and toxicology. Pharmacological reviews.https://doi.org/10.1124/pr.114.009001

4. Furue, M., Hashimoto-Hachiya, A., & Tsuji, G. (2019). Aryl Hydrocarbon Receptor in Atopic Dermatitis and Psoriasis. International journal of molecular sciences. https://doi.org/10.3390/ijms20215424

5. Girgis, C. M., Cheng, K., Scott, C. H., & Gunton, J. E. (2012). Novel links between HIFs, type 2 diabetes, and metabolic syndrome. Trends in endocrinology and metabolism: TEM, https://doi.org/10.1016/j.tem.2012.05.003

Long Name

Aryl Hydrocarbon Receptor Nuclear Translocator

Alternate Names

HIF-1 beta, HIF1 beta, TANGO

Gene Symbol

ARNT

Additional ARNT/HIF-1 beta Products

Product Documents for ARNT/HIF-1 beta Antibody (H1beta234) - Azide and BSA Free

Product Datasheets

Certificate of Analysis

To download a Certificate of Analysis, please enter a lot number in the search box below.

Download SDS

Product Specific Notices for ARNT/HIF-1 beta Antibody (H1beta234) - Azide and BSA Free

This product is for research use only and is not approved for use in humans or in clinical diagnosis. Primary Antibodies are guaranteed for 1 year from date of receipt.
