Human/Mouse/Rat Plexin A2 Antibody
R&D Systems, part of Bio-Techne | Catalog # AF5486
Key Product Details
Species Reactivity
Validated:
Human, Mouse, Rat
Cited:
Mouse, Rat, Transgenic Mouse
Applications
Validated:
CyTOF-ready, Flow Cytometry, Immunocytochemistry, Simple Western, Western Blot
Cited:
Immunocytochemistry, Immunohistochemistry, Neutralization, Western Blot
Label
Unconjugated
Antibody Source
Polyclonal Goat IgG
Product Specifications
Immunogen
Chinese hamster ovary cell line CHO-derived recombinant mouse Plexin A2
Met35-Pro1237
Accession # P70207
Met35-Pro1237
Accession # P70207
Specificity
Detects mouse and rat Plexin A2 in direct ELISAs and Western blots. In direct ELISAs, less than 1% cross-reactivity with recombinant mouse (rm) Plexin A1, rmPlexin A3, and recombinant human Plexin B1 is observed.
Clonality
Polyclonal
Host
Goat
Isotype
IgG
Scientific Data Images for Human/Mouse/Rat Plexin A2 Antibody
Detection of Mouse and Rat Plexin A2 by Western Blot.
Western blot shows lysates of bEnd.3 mouse endothelioma cell line and rat embryonic cortical neuron cells. PVDF Membrane was probed with 1 µg/mL of Goat Anti-Human/Mouse/Rat Plexin A2 Antigen Affinity-purified Polyclonal Antibody (Catalog # AF5486) followed by HRP-conjugated Anti-Goat IgG Secondary Antibody (Catalog # HAF019). A specific band was detected for Plexin A2 at approximately 210 kDa (as indicated). This experiment was conducted under reducing conditions and using Immunoblot Buffer Group 8.

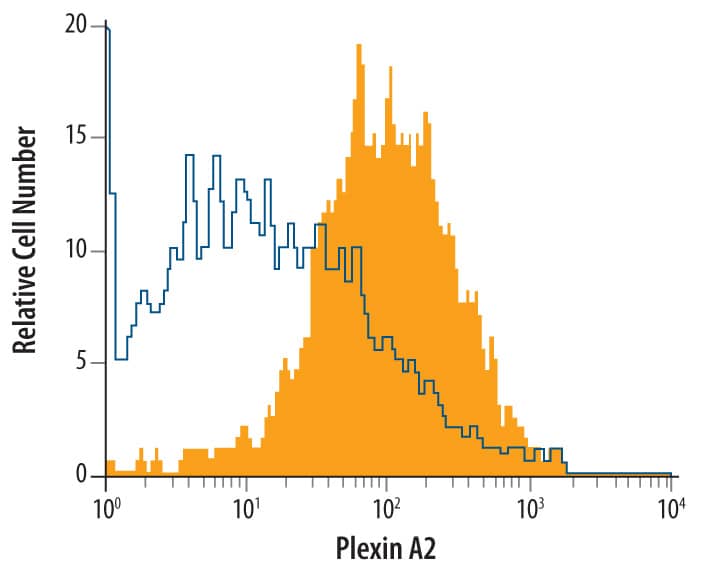

Detection of Plexin A2 in bEnd.3 Mouse Cell Line by Flow Cytometry.
bEnd.3 mouse endothelioma cell line was stained with Goat Anti-Human/Mouse/Rat Plexin A2 Antigen Affinity-purified Polyclonal Antibody (Catalog # AF5486, filled histogram) or isotype control antibody (Catalog # AB-108-C, open histogram), followed by Allophycocyanin-conjugated Anti-Goat IgG Secondary Antibody (Catalog # F0108).
Plexin A2 in bEnd.3 Mouse Cell Line.
Plexin A2 was detected in immersion fixed bEnd.3 mouse endothelioma cell line using Goat Anti-Human/Mouse/Rat Plexin A2 Antigen Affinity-purified Polyclonal Antibody (Catalog # AF5486) at 10 µg/mL for 3 hours at room temperature. Cells were stained using the NorthernLights™ 557-conjugated Anti-Goat IgG Secondary Antibody (red; Catalog # NL001) and counterstained with DAPI (blue). Specific staining was localized to cell surfaces and cytoplasm. View our protocol for Fluorescent ICC Staining of Cells on Coverslips.Applications for Human/Mouse/Rat Plexin A2 Antibody
Application
Recommended Usage
CyTOF-ready
Ready to be labeled using established conjugation methods. No BSA or other carrier proteins that could interfere with conjugation.
Flow Cytometry
2.5 µg/106 cells
Sample: bEnd.3 mouse endothelioma cell line
Sample: bEnd.3 mouse endothelioma cell line
Immunocytochemistry
10 µg/mL
Sample: bEnd.3 mouse endothelioma cell line, HUVEC human endothelial cell line, and rat embryonic cortical neuron cells
Sample: bEnd.3 mouse endothelioma cell line, HUVEC human endothelial cell line, and rat embryonic cortical neuron cells

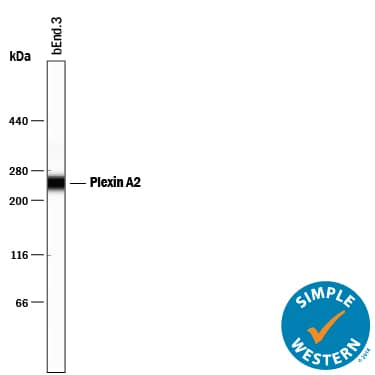

Simple Western
10 µg/mL
Sample: bEnd.3 mouse endothelioma cell line
Sample: bEnd.3 mouse endothelioma cell line
Western Blot
1 µg/mL
Sample: bEnd.3 mouse endothelioma cell line and rat embryonic cortical neuron cells
Sample: bEnd.3 mouse endothelioma cell line and rat embryonic cortical neuron cells
Please Note: Optimal dilutions of this antibody should be experimentally determined.
Reviewed Applications
Read 1 review rated 1 using AF5486 in the following applications:
Formulation, Preparation, and Storage
Purification
Antigen Affinity-purified
Reconstitution
Reconstitute at 0.2 mg/mL in sterile PBS. For liquid material, refer to CoA for concentration.
Formulation
Lyophilized from a 0.2 μm filtered solution in PBS with Trehalose. *Small pack size (SP) is supplied either lyophilized or as a 0.2 µm filtered solution in PBS.
Shipping
Lyophilized product is shipped at ambient temperature. Liquid small pack size (-SP) is shipped with polar packs. Upon receipt, store immediately at the temperature recommended below.
Stability & Storage
Use a manual defrost freezer and avoid repeated freeze-thaw cycles.
- 12 months from date of receipt, -20 to -70 °C as supplied.
- 1 month, 2 to 8 °C under sterile conditions after reconstitution.
- 6 months, -20 to -70 °C under sterile conditions after reconstitution.
Background: Plexin A2
Plexin A2 (also OCT) is a 220-230 kDa member of the plexin-A subfamily, plexin family of proteins. It is found on cerebellar granule cells, sensory neurons, and cardiac neural crest cells. It participates in cell migration and axon guidance, and does so by serving as a receptor for Sema6A and B, and as a coreceptor with neuropilin-1 for Sema3A and C. Mature mouse Plexin A2 is an 1860 amino acid (aa) type I transmembrane glycoprotein. It contains a 1203 aa extracellular domain (ECD) and a 636 aa cytoplasmic region. The ECD contains one Sema domain (aa 35-508), three PSI domains (aa 510-855) and four IPT regions (aa 858-1228). There is one alternate start site 10 aa upstream of the standard start site. Over aa 35-1237, mouse Plexin A2 shares 96% aa sequence identity with human Plexin A2.
Alternate Names
OCT, PLXN2, PLXNA2
Gene Symbol
PLXNA2
UniProt
Additional Plexin A2 Products
Product Documents for Human/Mouse/Rat Plexin A2 Antibody
Product Specific Notices for Human/Mouse/Rat Plexin A2 Antibody
For research use only
