Human Renalase Antibody

Detection of Human Renalase by Western Blot.

Western blot shows lysates of human plasma. PVDF membrane was probed with 1 µg/mL of Goat Anti-Human Renalase Antigen Affinity-purified Polyclonal Antibody (Catalog # AF5350) followed by HRP-conjugated Anti-Goat IgG Secondary Antibody (Catalog # HAF019). A specific band was detected for Renalase at approximately 37 kDa (as indicated). This experiment was conducted under reducing conditions and using Immunoblot Buffer Group 8.

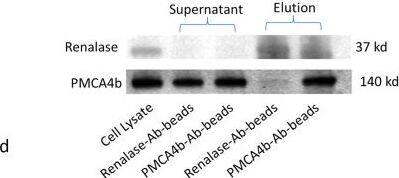

Detection of Human Renalase by Western Blot

Identification of plasma membrane calcium ATPase isoform PMCA4b as a renalase binding protein.A, HK-2 cells incubated with either labeled RP-Scr220 or RP-220, biotin-labeled proteins purified using streptavidin column, separated by SDS-PAGE and visualized by western blot using streptavidin-HRP; * = regions evaluated by mass spectrometry in samples labeled with either RP-Scr220 or RP-220; # = RP-220 band containing the plasma membrane calcium ATPase isoform PMCA4b. B, Endogenous expression of PMCA4b in HK-2 cells, western immunoblot using isoform specific monoclonal; CCL-119: human leukemic cell line; thyroid tumor = human thyroid tumor cell line (ATCC, CRL-1803) 10 μg protein loaded in each lane. C, co-immunolocalization of PMCA4b and renalase in HK-2 cells, images acquired using a Zeiss laser scanning confocal microscope, scale bar = 9 μm; arrow = plasma membrane. D, Co-Immunoprecipitation of PMCA4b and renalase from HK-2 cell lysates; renalase-Ab-beads = renalase antibody coated beads; PMCA4b-Ab-beads = PMCA4b antibody coated beads. Image collected and cropped by CiteAb from the following publication (https://pubmed.ncbi.nlm.nih.gov/25906147), licensed under a CC-BY license. Not internally tested by R&D Systems.

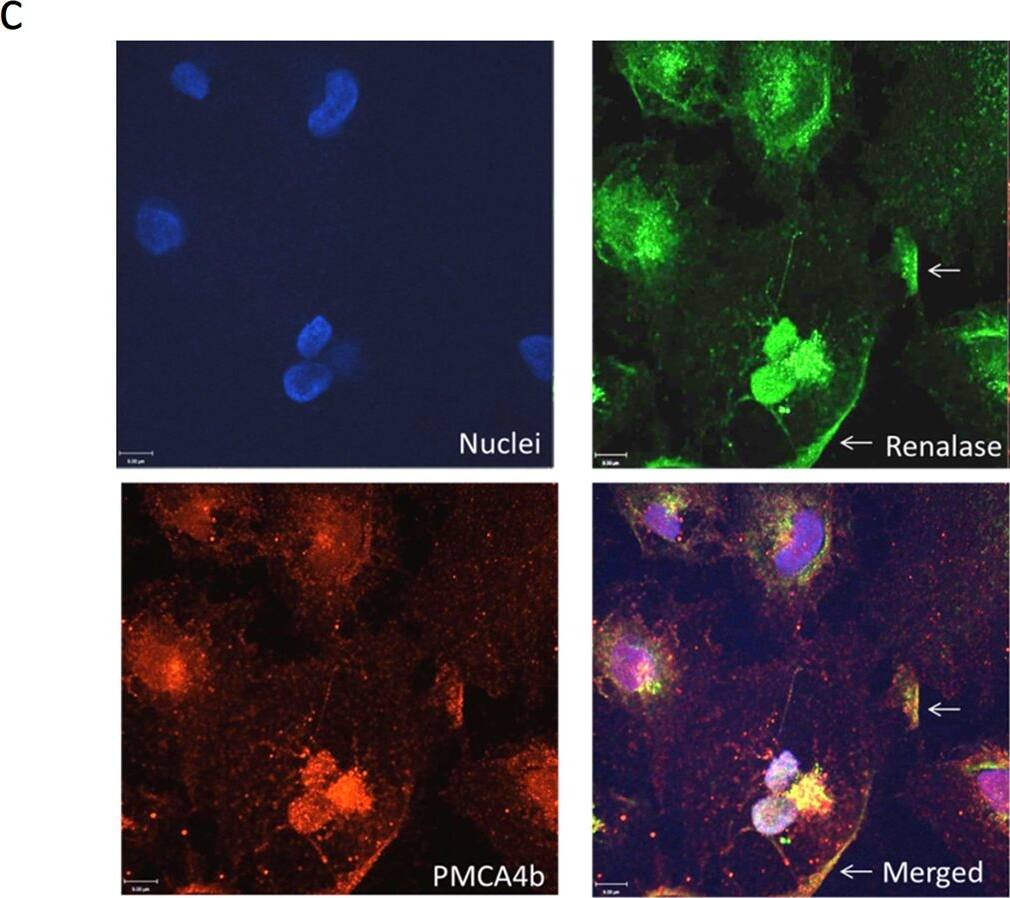

Detection of Human Renalase by Immunocytochemistry/Immunofluorescence

Identification of plasma membrane calcium ATPase isoform PMCA4b as a renalase binding protein.A, HK-2 cells incubated with either labeled RP-Scr220 or RP-220, biotin-labeled proteins purified using streptavidin column, separated by SDS-PAGE and visualized by western blot using streptavidin-HRP; * = regions evaluated by mass spectrometry in samples labeled with either RP-Scr220 or RP-220; # = RP-220 band containing the plasma membrane calcium ATPase isoform PMCA4b. B, Endogenous expression of PMCA4b in HK-2 cells, western immunoblot using isoform specific monoclonal; CCL-119: human leukemic cell line; thyroid tumor = human thyroid tumor cell line (ATCC, CRL-1803) 10 μg protein loaded in each lane. C, co-immunolocalization of PMCA4b and renalase in HK-2 cells, images acquired using a Zeiss laser scanning confocal microscope, scale bar = 9 μm; arrow = plasma membrane. D, Co-Immunoprecipitation of PMCA4b and renalase from HK-2 cell lysates; renalase-Ab-beads = renalase antibody coated beads; PMCA4b-Ab-beads = PMCA4b antibody coated beads. Image collected and cropped by CiteAb from the following publication (https://pubmed.ncbi.nlm.nih.gov/25906147), licensed under a CC-BY license. Not internally tested by R&D Systems.
