Mouse Ephrin-B1 Antibody

R&D Systems, part of Bio-Techne | Catalog # AF473

R&D Systems, part of Bio-Techne
Catalog #
Availability
Size / Price
Qty
Loading...
AF473
AF473-SP

Key Product Details

Species Reactivity

Validated:

Mouse

Cited:

Human, Mouse, Rat, Frog - Xenopus (African Clawed Frog)

Applications

Validated:

Immunohistochemistry, Simple Western, Western Blot

Cited:

Cell Culture, Flow Cytometry, Immunocytochemistry, Immunohistochemistry, Immunohistochemistry-Frozen, Immunohistochemistry-Paraffin, Immunoprecipitation, Western Blot

Label

Unconjugated

Antibody Source

Polyclonal Goat IgG

Product Specifications

Immunogen

Mouse myeloma cell line NS0-derived recombinant mouse Ephrin-B1
Lys30-Ser229
Accession # AAA53231

Specificity

Detects mouse Ephrin-B1 in direct ELISAs and Western blots.

Clonality

Polyclonal

Host

Goat

Isotype

IgG

Scientific Data Images for Mouse Ephrin-B1 Antibody

Detection of Mouse Ephrin-B1 antibody by Western Blot.

Detection of Mouse Ephrin‑B1 by Western Blot.

Western blot shows lysates of mouse lung tissue. PVDF membrane was probed with 0.25 µg/mL of Goat Anti-Mouse Ephrin-B1 Antigen Affinity-purified Polyclonal Antibody (Catalog # AF473) followed by HRP-conjugated Anti-Goat IgG Secondary Antibody (Catalog # HAF019). A specific band was detected for Ephrin-B1 at approximately 45-50 kDa (as indicated). This experiment was conducted under reducing conditions and using Immunoblot Buffer Group 1.
Ephrin-B1 antibody in Mouse Kidney by Immunohistochemistry (IHC-Fr).

Ephrin-B1 in Mouse Kidney.

Ephrin-B1 was detected in immersion fixed frozen sections of mouse kidney using Goat Anti-Mouse Ephrin-B1 Antigen Affinity-purified Polyclonal Antibody (Catalog # AF473) at 5 µg/mL overnight at 4 °C. Tissue was stained using the Anti-Goat HRP-DAB Cell & Tissue Staining Kit (brown; Catalog # CTS008) and counterstained with hematoxylin (blue). View our protocol for Chromogenic IHC Staining of Frozen Tissue Sections.

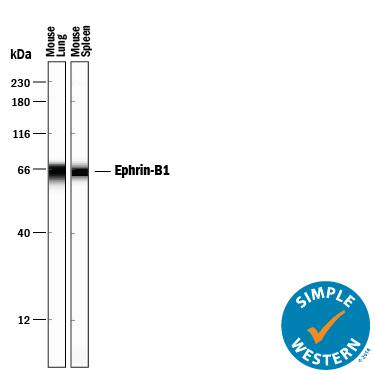

Detection of Mouse Ephrin-B1 antibody by Simple WesternTM.

Detection of Mouse Ephrin-B1 by Simple WesternTM.

Simple Western lane view shows lysates of mouse lung tissue and mouse spleen tissue, loaded at 0.2 mg/mL. A specific band was detected for Ephrin-B1 at approximately 65 kDa (as indicated) using 25 µg/mL of Goat Anti-Mouse Ephrin-B1 Antigen Affinity-purified Polyclonal Antibody (Catalog # AF473) followed by 1:50 dilution of HRP-conjugated Anti-Goat IgG Secondary Antibody (Catalog # HAF109). This experiment was conducted under reducing conditions and using the 12-230 kDa separation system.

Applications for Mouse Ephrin-B1 Antibody

Application
Recommended Usage

Immunohistochemistry

5-15 µg/mL
Sample: Perfusion fixed frozen sections of mouse intestine and kidney

Simple Western

25 µg/mL
Sample: Mouse lung tissue and mouse spleen tissue

Western Blot

0.25 µg/mL
Sample: Mouse lung tissue

Formulation, Preparation, and Storage

Purification

Antigen Affinity-purified

Reconstitution

Reconstitute at 0.2 mg/mL in sterile PBS. For liquid material, refer to CoA for concentration.

Reconstitution Buffer Available:
Size / Price
Qty
Loading...

Formulation

Lyophilized from a 0.2 μm filtered solution in PBS with Trehalose. *Small pack size (SP) is supplied either lyophilized or as a 0.2 µm filtered solution in PBS.

Shipping

Lyophilized product is shipped at ambient temperature. Liquid small pack size (-SP) is shipped with polar packs. Upon receipt, store immediately at the temperature recommended below.

Stability & Storage

Use a manual defrost freezer and avoid repeated freeze-thaw cycles.
  • 12 months from date of receipt, -20 to -70 °C as supplied.
  • 1 month, 2 to 8 °C under sterile conditions after reconstitution.
  • 6 months, -20 to -70 °C under sterile conditions after reconstitution.

Background: Ephrin-B1

Ephrin-B1, also known as LERK-2, ELK-L, EFL-3, Cek5-L, and STRA-1 (1), is a member of the ephrin ligand family which binds members of the Eph receptor family. All ligands share a conserved extracellular sequence, which most likely corresponds to the receptor binding domain. This conserved sequence consists of approximately 125 amino acids and includes four invariant cysteines. The B-class ligands are transmembrane proteins which can become tyrosine phosphorylated upon receptor ligation. The cytoplasmic domains are approximately 80 amino acids long and are highly conserved, especially the last 33 amino acids. Several signaling molecules have been shown to interact with the cytoplasmic region, although specific signaling roles have yet to be elucidated. Ephrin-B1 has been shown to bind EphA3, EphB1, EphB2, EphB3, and EphB4 (2, 3). The extracellular domains of human and mouse Ephrin-B1 share 94% amino acid identity. Only membrane-bound or Fc-clustered ligands are capable of activating the receptor in vitro. Soluble monomeric ligands bind the receptor but do not induce receptor autophosphorylation and activation (2). In vivo, the ligands and receptors display reciprocal expression (3). It has been found that nearly all receptors and ligands are expressed in developing and adult neural tissue (3). The Eph/ephrin families also appear to play a role in angiogenesis (3).

References

  1. Eph Nomenclature Committee [letter] (1997) Cell 90:403.
  2. Flanagan, J.G. and P. Vanderhaeghen (1998) Annu. Rev. Neurosci. 21:309.
  3. Pasquale, E.B. (1997) Curr. Opin. Cell Biol. 9:608.

Alternate Names

Cek5-L, EFL-3, EFNB1, ELK-L, EphrinB1, LERK-2, STRA-1

Entrez Gene IDs

1947 (Human); 13641 (Mouse); 25186 (Rat)

Gene Symbol

EFNB1

UniProt

Additional Ephrin-B1 Products

Product Documents for Mouse Ephrin-B1 Antibody

Certificate of Analysis

To download a Certificate of Analysis, please enter a lot number in the search box below.

Note: Certificate of Analysis not available for kit components.
