HEK293 human embryonic kidney cell line transfected with mouse S1P₁/EDG-1 and GFP was stained with (A) Rat Anti-Mouse S1P₁/EDG-1 Monoclonal Antibody (Catalog # MAB7089) or (B) Rat IgG2A isotype control antibody (Catalog # MAB006) followed by Allophycocyanin-conjugated Anti-Rat IgG Secondary Antibody (Catalog # F0113). View our protocol for Staining Membrane-associated Proteins.

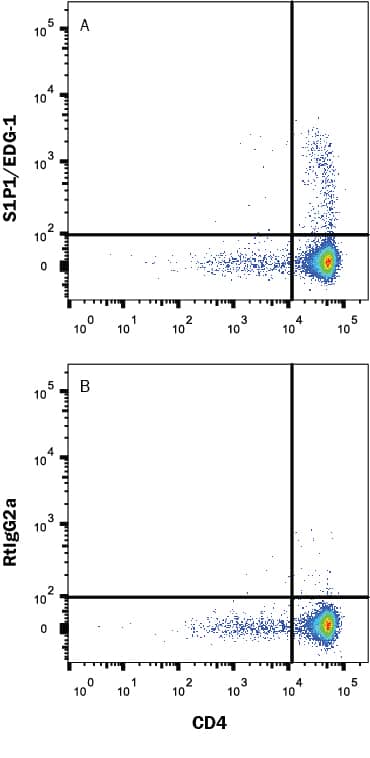

Detection of S1P1/EDG‑1 in Mouse Thymocytes by Flow Cytometry.

Mouse thymocytes were stained with Rat Anti-Mouse CD4 PE-conjugated Monoclonal Antibody (Catalog # FAB554P) and either (A) Rat Anti-Mouse S1P1/EDG-1 Monoclonal Antibody (Catalog # MAB7089) or (B) Rat IgG2A Isotype Control (Catalog # MAB006) followed by Allophycocyanin-conjugated Anti-Rat IgG Secondary Antibody (Catalog # F0113). View our protocol for Staining Membrane-associated Proteins.

S1P₁/EDG‑1 in Mouse Heart.

S1P₁/EDG-1 was detected in perfusion fixed frozen sections of mouse heart using Rat Anti-Mouse S1P₁/EDG-1 Monoclonal Antibody (Catalog # MAB7089) at 25 µg/mL overnight at 4 °C. Tissue was stained using the Anti-Rat HRP-DAB Cell & Tissue Staining Kit (brown; Catalog # CTS017) and counter-stained with hematoxylin (blue). Specific staining was localized to endothelial cells in capillaries. View our protocol for Chromogenic IHC Staining of Frozen Tissue Sections.

Applications for Mouse S1P₁/EDG-1 Antibody

Application

Recommended Usage

CyTOF-ready

Ready to be labeled using established conjugation methods. No BSA or other carrier proteins that could interfere with conjugation.

Flow Cytometry

0.25 µg/10⁶ cells
Sample: HEK293 human embryonic kidney cell line transfected with mouse S1P₁/EDG‑1 and GFP, and mouse thymocytes

Immunohistochemistry

8-25 µg/mL
Sample: Perfusion fixed frozen sections of mouse heart

Please Note: Optimal dilutions of this antibody should be experimentally determined.

Formulation, Preparation, and Storage

Purification

Protein A or G purified from hybridoma culture supernatant

Reconstitution

Sterile PBS to a final concentration of 0.5 mg/mL. For liquid material, refer to CoA for concentration.

Formulation

Lyophilized from a 0.2 μm filtered solution in PBS with Trehalose. *Small pack size (SP) is supplied either lyophilized or as a 0.2 µm filtered solution in PBS.

Shipping

Lyophilized product is shipped at ambient temperature. Liquid small pack size (-SP) is shipped with polar packs. Upon receipt, store immediately at the temperature recommended below.

Stability & Storage

Use a manual defrost freezer and avoid repeated freeze-thaw cycles.

12 months from date of receipt, -20 to -70 °C as supplied.
1 month, 2 to 8 °C under sterile conditions after reconstitution.
6 months, -20 to -70 °C under sterile conditions after reconstitution.

Background: S1P1/EDG-1

S1P₁ (sphingosine 1-phosphate receptor-1), also known as EDG-1 (endothelial differentiation, G-protein coupled receptor-1) or S1PR1 (sphingosine-1-phosphate receptor 1) is a widely expressed, 37-40 kDa, G protein coupled receptor within the S1P subfamily of the EDG family. S1P₁ is one of five receptors for the bioactive lipid S1P and mediates most of S1P effects on angiogenesis, vascular maturation, and cell migration, especially T cell egress from lymphoid organs. Human and mouse S1P₁ share 84% amino acid identity within the N-terminal extracellular portion used as an immunogen.

Long Name

Endothelial Differentiation Gene 1

Alternate Names

CD363, EDG1, S1PR1

Entrez Gene IDs

1901 (Human); 13609 (Mouse)

Gene Symbol

S1PR1

UniProt

O08530

Additional S1P1/EDG-1 Products

Product Documents for Mouse S1P₁/EDG-1 Antibody

Product Datasheets

Download Product Datasheets

COA

SDS

Download SDS

Product Specific Notices for Mouse S1P₁/EDG-1 Antibody

For research use only

Citations
Reviews

Calculators
Flow Cytometry

Mouse S1P1/EDG-1 Antibody

R&D Systems, part of Bio-Techne | Catalog # MAB7089

Key Product Details

Species Reactivity

Validated:

Cited:

Applications

Validated:

Cited:

Label

Antibody Source

View all S1P1/EDG-1 Antibodies »

Product Specifications

Immunogen

Specificity

Clonality

Host

Isotype

Scientific Data Images for Mouse S1P1/EDG-1 Antibody

Detection of S1P1/EDG‑1 in HEK293 Human Cell Line Transfected With S1P1/EDG‑1 by Flow Cytometry.
