PPP2R5D Antibody (PSH01-22)

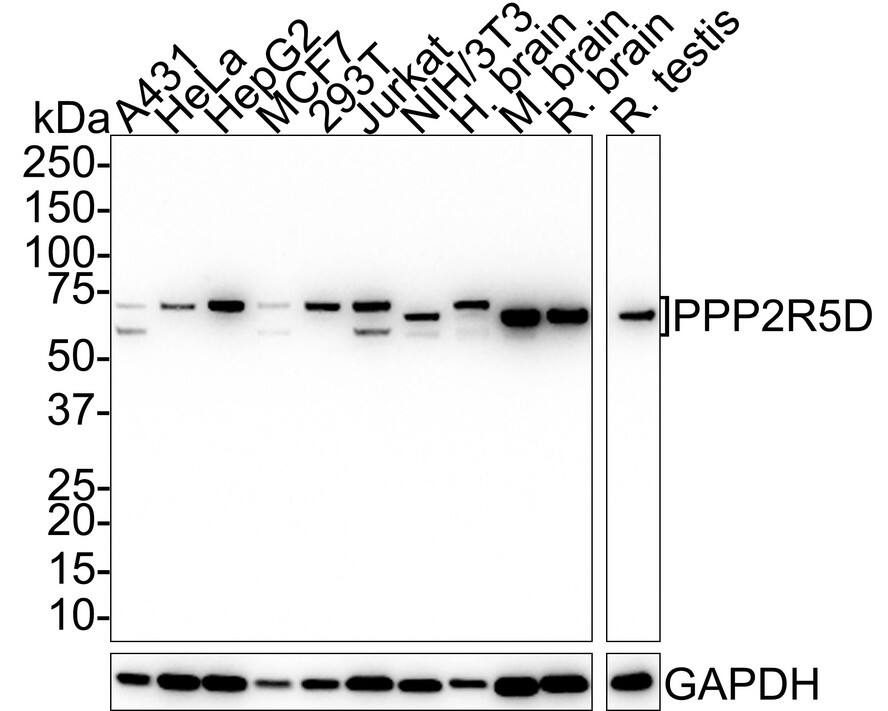

Western Blot: PPP2R5D Antibody (PSH01-22) [NBP3-32847]

Western Blot: PPP2R5D Antibody (PSH01-22) [NBP3-32847] - Western blot analysis of PPP2R5D on different lysates with Rabbit anti-PPP2R5D antibody (NBP3-32847) at 1/1,000 dilution.

Lane 1: A431 cell lysate (20 ug/Lane)
Lane 2: HeLa cell lysate (20 ug/Lane)
Lane 3: HepG2 cell lysate (20 ug/Lane)
Lane 4: MCF7 cell lysate (20 ug/Lane)
Lane 5: 293T cell lysate (20 ug/Lane)
Lane 6: Jurkat cell lysate (20 ug/Lane)
Lane 7: NIH/3T3 cell lysate (20 ug/Lane)
Lane 8: Human brain tissue lysate (40 ug/Lane)
Lane 9: Mouse brain tissue lysate (40 ug/Lane)
Lane 10: Rat brain tissue lysate (40 ug/Lane)
Lane 11: Rat testis tissue lysate (40 ug/Lane)

Predicted band size: 70 kDa
Observed band size: 56~70 kDa

Exposure time: 2 minutes 10 seconds;

4-20% SDS-PAGE gel.

Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (NBP3-32847) at 1/1,000 dilution was used in 5% NFDM/TBST at room temperature for 2 hours. Goat Anti-Rabbit IgG - HRP Secondary Antibody at 1:100,000 dilution was used for 1 hour at room temperature.

Immunohistochemistry: PPP2R5D Antibody (PSH01-22) [NBP3-32847]

Immunohistochemistry: PPP2R5D Antibody (PSH01-22) [NBP3-32847] - Immunohistochemical analysis of paraffin-embedded human brain tissue with Rabbit anti-PPP2R5D antibody (NBP3-32847) at 1/1,000 dilution.

The section was pre-treated using heat mediated antigen retrieval with sodium citrate buffer (pH 6.0) for 2 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (NBP3-32847) at 1/1,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

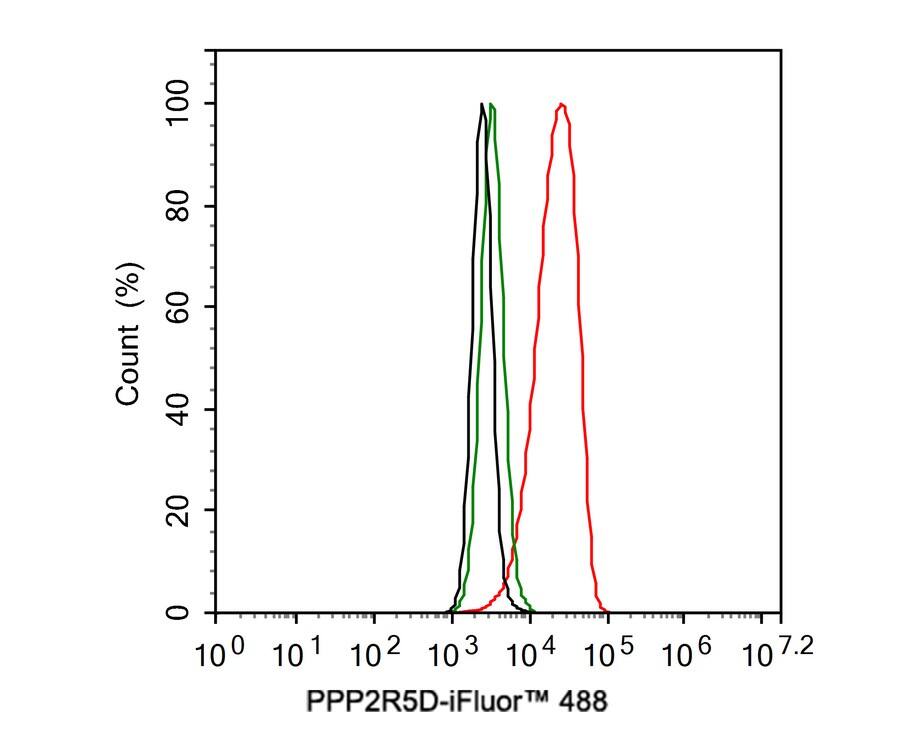

Flow Cytometry: PPP2R5D Antibody (PSH01-22) [NBP3-32847]

Flow Cytometry: PPP2R5D Antibody (PSH01-22) [NBP3-32847] - Flow cytometric analysis of A431 cells labeling PPP2R5D.

Cells were fixed and permeabilized. Then stained with the primary antibody (NBP3-32847, 1ug/ml) (red) compared with Rabbit IgG Isotype Control (green). After incubation of the primary antibody at +4℃ for an hour, the cells were stained with a iFluor™ 488 conjugate-Goat anti-Rabbit IgG Secondary antibody at 1/1,000 dilution for 30 minutes at +4℃. Unlabelled sample was used as a control (cells without incubation with primary antibody; black).
