SARS-CoV-2 Spike S2 Subunit Antibody

R&D Systems, part of Bio-Techne | Catalog # MAB10850

Recombinant Monoclonal Antibody.
R&D Systems, part of Bio-Techne
Catalog #
Availability
Size / Price
Qty
MAB10850-100
MAB10850-SP
Print Quote
Bulk Order
100% Guarantee

Key Product Details

Species Reactivity

Validated:

SARS-CoV-2

Cited:

Mouse

Applications

Validated:

Immunocytochemistry, Immunohistochemistry, Simple Western, Western Blot

Cited:

Western Blot

Label

Unconjugated

Antibody Source

Recombinant Monoclonal Rabbit IgG Clone # 2812C

View all Spike S2 Subunit Antibodies »

Product Specifications

Immunogen

E. coli-derived recombinant human SARS-CoV-2 Spike S2 Subunit
Met697-Pro1213

Specificity

Detects SARS-CoV-2 Spike S2 Subunit in direct ELISAs.

Clonality

Monoclonal

Host

Rabbit

Isotype

IgG

Scientific Data Images for SARS-CoV-2 Spike S2 Subunit Antibody

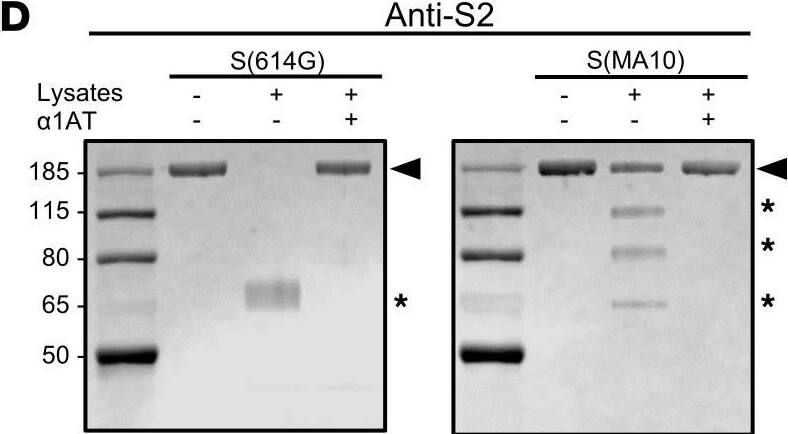

Detection of SARS-CoV-2 Spike S2 Subunit by Western Blot.

Western blot shows recombinant SARS-CoV-2 Spike S2 protein. PVDF membrane was probed with 0.5 µg/mL of Rabbit Anti-SARS-CoV-2 Spike S2 Subunit Monoclonal Antibody (Catalog # MAB10850) followed by HRP-conjugated Anti-Rabbit IgG Secondary Antibody (HAF008). A specific band was detected for Spike S2 Subunit at approximately 75 kDa (as indicated). This experiment was conducted under reducing conditions and using Western Blot Buffer Group 1.

Spike S2 Subunit in HEK293 Human Cell Line Transfected with SARS-CoV-2.

Spike S2 Subunit was detected in immersion fixed HEK293 human embryonic kidney cell line transfected with SARS-CoV-2 (positive staining) and HEK293 human embryonic kidney cell line (non-transfected, negative staining) using Rabbit Anti-SARS-CoV-2 Spike S2 Subunit Monoclonal Antibody (Catalog # MAB10850) at 3 µg/mL for 3 hours at room temperature. Cells were stained using the NorthernLights™ 557-conjugated Anti-Rabbit IgG Secondary Antibody (red; NL004) and counterstained with DAPI (blue). Specific staining was localized to cytoplasm. Staining was performed using our protocol for Fluorescent ICC Staining of Non-adherent Cells.

Spike S2 Subunit in SARS-CoV-2 infected Human lung.

Spike S2 Subunit was detected in immersion fixed paraffin-embedded sections of SARS-CoV-2 infected human lung using Rabbit Anti-SARS-CoV-2 Spike S2 Subunit Monoclonal Antibody (Catalog # MAB10850) at 3 µg/mL for 1 hour at room temperature followed by incubation with the Anti-Rabbit IgG VisUCyte™ HRP Polymer Antibody (VC003). Before incubation with the primary antibody, tissue was subjected to heat-induced epitope retrieval using Antigen Retrieval Reagent-Basic (CTS013). Tissue was stained using DAB (brown) and counterstained with hematoxylin (blue). Specific staining was localized to immunoreactive profiles scattered throughout the tissue. Staining was performed using our protocol for IHC Staining with VisUCyte HRP Polymer Detection Reagents.
View 1 more images

Applications for SARS-CoV-2 Spike S2 Subunit Antibody

Application
Recommended Usage

Immunocytochemistry

3-25 µg/mL
Sample: Immersion fixed HEK293 human embryonic kidney cell line transfected with SARS-CoV-2

Immunohistochemistry

3-25 µg/mL
Sample: Immersion fixed paraffin-embedded sections of SARS-CoV-2 infected human lung

Simple Western

20 µg/mL
Sample: Recombinant SARS-CoV-2

Western Blot

0.5 µg/mL
Sample: Recombinant SARS-CoV-2 Spike S2 protein

Formulation, Preparation, and Storage

Purification

Protein A or G purified from cell culture supernatant

Reconstitution

Reconstitute at 0.5 mg/mL in sterile PBS. For liquid material, refer to CoA for concentration.

Reconstitution Buffer Available:
Size / Price
Qty

Formulation

Lyophilized from a 0.2 μm filtered solution in PBS with Trehalose. *Small pack size (SP) is supplied either lyophilized or as a 0.2 µm filtered solution in PBS.

Shipping

Lyophilized product is shipped at ambient temperature. Liquid small pack size (-SP) is shipped with polar packs. Upon receipt, store immediately at the temperature recommended below.

Stability & Storage

Use a manual defrost freezer and avoid repeated freeze-thaw cycles.
  • 12 months from date of receipt, -20 to -70 °C as supplied.
  • 1 month, 2 to 8 °C under sterile conditions after reconstitution.
  • 6 months, -20 to -70 °C under sterile conditions after reconstitution.

Background: Spike S2 Subunit

SARS-CoV-2, which causes the global pandemic coronavirus disease 2019 (Covid-19), belongs to a family of viruses known as coronaviruses that also include MERS and SARS-CoV-1. Coronaviruses are commonly comprised of four structural proteins: Spike protein(S), Envelope protein (E), Membrane protein (M) and Nucleocapsid protein (N) (1). SARS-CoV-2 Spike Protein (S Protein) is a glycoprotein that mediates membrane fusion and viral entry. The S protein is homotrimeric, with each ~180-kDa monomer consisting of two subunits, S1 and S2 (2). As with most coronaviruses, proteolytic cleavage of the S protein into two distinct peptides, S1 and S2 subunits, is required for activation. The S1 subunit is focused on attachment of the protein to the host receptor while the S2 subunit is involved with cell fusion (2-4). A metallopeptidase, angiotensin-converting enzyme 2 (ACE-2), has been identified as a functional receptor for SARS-CoV2, similar to SARS-CoV-1, through interaction with a receptor binding domain (RBD) located at the C-terminus of S1 subunit (5, 6). The S2 subunit of SARS-CoV-2 shares 90% and 41% amino acid sequence identity with the S2 subunit of SARS-CoV-1 and MERS, respectively. It has been demonstrated the S Protein can invade host cells through the CD147/EMMPRIN receptor and mediate membrane fusion (7, 8).

References

  1. Rota, P.A. et al. (2003) Science 300:1394.
  2. Bosch, B.J. et al. (2003). J. Virol. 77:8801.
  3. Belouzard, S. et al. (2009) Proc. Natl. Acad. Sci. USA 106:5871.
  4. Millet, J.K. and G. R. Whittaker (2015) Virus Res. 202:120.
  5. Li, W. et al. (2003) Nature 426:450.
  6. Wong, S.K. et al. (2004) J. Biol. Chem. 279:3197.
  7. Wang, X. et al. (2020) https://doi.org/10.1038/s41423-020-0424-9.
  8. Wang, K. et al. (2020) bioRxiv https://www.biorxiv.org/content/10.1101/2020.03.14.988345v.

Long Name

Spike Protein, S2 Subunit

Alternate Names

COVID-19, S2 protein, SARS-CoV-2, SARS-CoV-2 Spike, Spike glycoprotein Subunit 2, spike protein, Spike protein S2, structural protein, surface glycoprotein
