SOX4 Antibody

Western Blot: SOX4 Antibody [NBP3-18643]

Western Blot: SOX4 Antibody [NBP3-18643] - Figure 4. IP using the antibody directed against SOX4 IP was performed overnight on protein extracts (600 ug) from CT-2A (A) and GL261 (B) cells using 6 ul of the antibody against SOX4 . The immunoprecipitated proteins were subsequently analysed by Western blot with the antibody as described above. Lane 2 shows the result of the IP; the input is shown in lane 1.

Western Blot: SOX4 Antibody [NBP3-18643]

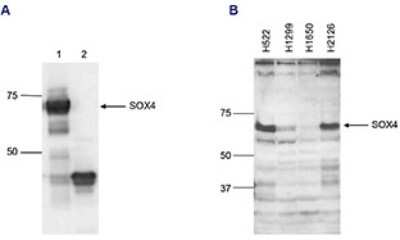

Western Blot: SOX4 Antibody [NBP3-18643] - Figure 2. Western blot analysis using the antibody directed against SOX4 A. H1299 lung carcinoma cells were transfected with HA-tagged SOX4 (lane 1) or with a HA-tagged truncated SOX4 (395X mutant, lane 2). Whole cell extracts (60 - 100 ug) were analysed by Western blot using the antibody against SOX4 diluted 1:4,000 in TBS-Tween containing 2% skimmed milk. The position of the protein of interest is indicated on the right; the marker (in kDa) is shown on the left. B. Whole cell extracts of 4 different lung carcinoma cell lines were analysed by Western blot with the antibody against SOX4 as described above. The H522 cells are known to overexpress SOX4. Western blot performed by Montse Sanchez-Cespedes and Sandra Castillo Diez, Catalan Institute of Oncology, Barcelona, Spain.

Western Blot: SOX4 Antibody [NBP3-18643]

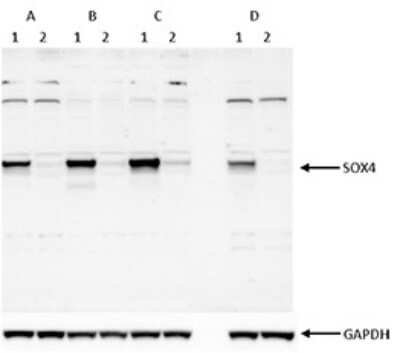

Western Blot: SOX4 Antibody [NBP3-18643] - Figure 3. Western blot analysis using the antibody directed against SOX4 Western blot was performed on Protein extracts (~40 ug) from mouse B16-OVA (A), CT-2A (B), GL261 (C) or B16A (D) cells using the antibody against SOX4 . The cells were transfected with a SOX4 specific crRNA (lanes 2) or with a negative control crRNA (lanes 1). The antibody was diluted 1:4,000 in TBS-Tween containing 5% skimmed milk. The position of the protein of interest is indicated on the right. The lower panel shows the WB results with a GAPDH antibody used as loading control. Western blot performed by Anze Godicelj, Dana Farber Cancer Institute, Boston, USA.
