SOX9 Antibody

Immunohistochemistry-Frozen: SOX9 Antibody [NBP2-24659]

Immunohistochemistry-Frozen: SOX9 Antibody [NBP2-24659] - Feline optic nerve tissue section was incubated with antibody at 1:200 and further stained with Alexa secondary antibody. Image was captured with an epifluorescence microscope. This image was submitted via customer review.

Western Blot: SOX9 Antibody [NBP2-24659]

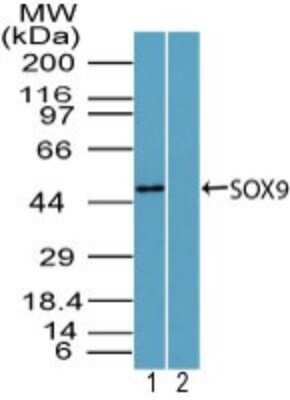

Western Blot: SOX9 Antibody [NBP2-24659] - Analysis of SOX9 in mouse embryo brain lysate in the 1) absence and 2) presence of immunizing peptide using SOX9 antibody at 2 ug/ml. Goat anti-rabbit Ig HRP secondary antibody and PicoTect ECL substrate solution were used for this test.

Western Blot: SOX9 Antibody [NBP2-24659]

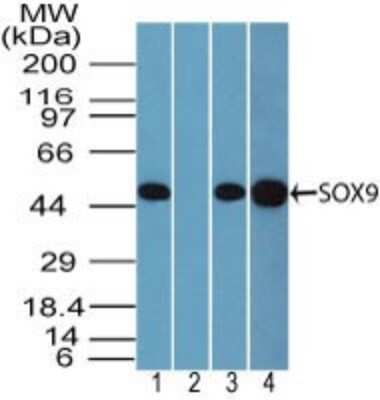

Western Blot: SOX9 Antibody [NBP2-24659] - Analysis of SOX9 in human brain lysate in the 1) absence and 2) presence of immunizing peptide, 3) mouse brain and 4) rat brain lysate using SOX9 antibody at 3 ug/ml.

Immunohistochemistry-Paraffin: SOX9 Antibody [NBP2-24659]

Immunohistochemistry-Paraffin: SOX9 Antibody [NBP2-24659] - Analysis of SOX9 in formalin-fixed, paraffin-embedded mouse testis tissue using an isotype control (top left) and SOX9 antibody (bottom left, right) at 5 ug/ml.

Immunohistochemistry-Paraffin: SOX9 Antibody [NBP2-24659] -

Immunohistochemistry-Paraffin: SOX9 Antibody [NBP2-24659] - 3′‐Sialyllactose regulates anabolic & catabolic factor expression via Erk & NF‐ kappaB pathways. (A, B) Chondrocytes were pre‐treated with different concentrations of 3′‐sialyllactose for 24 hrs prior to treatment with IL‐1 beta (5 ng/ml) for 10 min. Erk phosphorylation was measured by Western blotting (A, upper panel) & densitometry (A, lower panel). The protein level of I kappaB was detected by Western blotting (B, upper panel) & densitometry (B, lower panel). Erk was detected as a loading control. (C) Immunohistochemical staining of Sox9, I kappaB & pErk in DMM‐induced OA mice with administration of PBS & 3′‐sialyllactose. (D) Schematic diagram of the signalling pathway leading to Sox9 activation & NF‐ kappaB inhibition by 3′‐sialyllactose. Values represent the means ± S.E.M. *P < 0.05. Image collected & cropped by CiteAb from the following publication (https://pubmed.ncbi.nlm.nih.gov/28782172), licensed under a CC-BY license. Not internally tested by Novus Biologicals.
