Ubiquilin 2 Antibody (6H9)

Novus Biologicals, part of Bio-Techne | Catalog # NBP2-25164

Novus Biologicals, part of Bio-Techne
Catalog #
Availability
Size / Price
Qty
Loading...
NBP2-25164
NBP2-25164SS

Key Product Details

Validated by

Knockout/Knockdown, Biological Validation

Species Reactivity

Validated:

Human, Mouse, Rat

Cited:

Human, Mouse

Applications

Validated:

Immunocytochemistry/ Immunofluorescence, Immunohistochemistry, Immunohistochemistry-Frozen, Immunoprecipitation, Knockdown Validated, Knockout Validated, Simple Western, Western Blot

Cited:

Block/Neutralize, IF/IHC, Immunocytochemistry/ Immunofluorescence, Immunohistochemistry, Immunohistochemistry-Frozen, Western Blot

Label

Unconjugated

Antibody Source

Monoclonal Mouse IgG1 Clone # 6H9

Concentration

1 mg/ml

Product Specifications

Immunogen

Human Ubiquilin 2 expressed in and purified from E. coli [UniProt# Q9UHD9]

Localization

Cytoplasm. Nucleus.

Clonality

Monoclonal

Host

Mouse

Isotype

IgG1

Theoretical MW

66-68 kDa.
Disclaimer note: The observed molecular weight of the protein may vary from the listed predicted molecular weight due to post translational modifications, post translation cleavages, relative charges, and other experimental factors.

Scientific Data Images for Ubiquilin 2 Antibody (6H9)

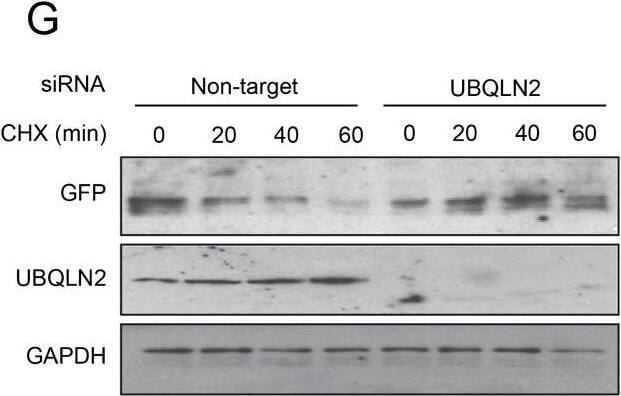

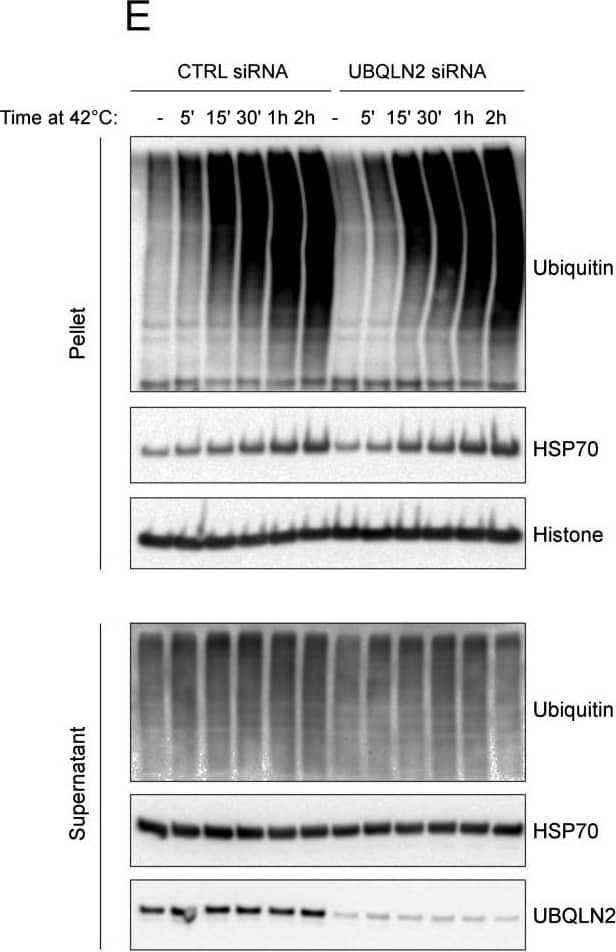

Knockdown Validated: Ubiquilin 2 Antibody (6H9) [NBP2-25164]

Knockdown Validated: Ubiquilin 2 Antibody (6H9) [NBP2-25164]

Knockdown Validated: Ubiquilin 2 Antibody (6H9) [NBP2-25164] - Validation of UBQLN2 antibody for staining of endogenous UBQLN2 in U2OS cells. U2OS cells were transfected with control siRNA or siRNA targeting UBQLN2. Cells were either seeded as separate groups (i.e., control and UBQLN2 siRNA) or mixed 1:1 and seeded together. Cells were stained using the mouse monoclonal anti-UBQLN2 6H9 (Novus NBP2-25164), at 1:250 in 2% BSA PBS for 1h. Secondary antibody was goat Anti-Mouse DyLight 488. Knockdown of UBQLN2 can be clearly seen to decrease the signal, indicating that the antibody is specific to UBQLN2. (G) displays zoom of the indicated areas in. For the mixed cells a white arrowhead indicates a cell transfected with control siRNA and a black arrowhead a cell transfected with UBQLN2 siRNA. Image collected and cropped by CiteAb from the following publication (https://doi.org/10.1016/j.cell.2016.07.001), licensed under a CC-BY license.
Simple Western: Ubiquilin 2 Antibody (6H9) [NBP2-25164]

Simple Western: Ubiquilin 2 Antibody (6H9) [NBP2-25164]

Simple Western: Ubiquilin 2 Antibody (6H9) [NBP2-25164] - Simple Western lane view shows a specific band for Ubiquilin 2 in 0.5 mg/ml of HeLa lysate. This experiment was performed under reducing conditions using the 12-230 kDa separation system.
Western Blot: Ubiquilin 2 Antibody (6H9) [NBP2-25164]

Western Blot: Ubiquilin 2 Antibody (6H9) [NBP2-25164]

Western Blot: Ubiquilin 2 Antibody (6H9) [NBP2-25164] - Analysis of different tissue and cell lysates using mouse mAb to ubiquilin 2, NBP2-25164, dilution 1:1,000 in green: [1] protein standard (red), [2] NIH-3T3, [3] C6, [4] HEK293, [5] HeLa, [6] SH-SY5Y, [7] rat whole brain, and [8] mouse whole brain. The band at 65-70kDa corresponds to ubiquilin 2 protein, which is known to differ between the human and rodent proteins.

Applications for Ubiquilin 2 Antibody (6H9)

Application
Recommended Usage

Immunocytochemistry/ Immunofluorescence

1:1000

Immunohistochemistry

1:1000

Simple Western

1:100

Western Blot

1:1000-1:2000
Application Notes
This Ubiquilin 2 (6H9). antibody is useful for Immunocytochemistry/Immunofluorescence, Immunohistochemistry, and Western Blot, where a band can be seen at approx. 66-68 kDa.

In Simple Western only 10 - 15 uL of the recommended dilution is used per data point. Use in Immunohistochemistry-Frozen reported in scientific literature (PMID:33028421).

Reviewed Applications

Read 2 reviews rated 5 using NBP2-25164 in the following applications:

Formulation, Preparation, and Storage

Purification

Protein G purified

Formulation

50% PBS, 50% glycerol

Preservative

0.035% Sodium Azide

Concentration

1 mg/ml

Shipping

The product is shipped with polar packs. Upon receipt, store it immediately at the temperature recommended below.

Stability & Storage

Store at -20C. Avoid freeze-thaw cycles.

Background: Ubiquilin 2

Ubiquilin 2, also known as PLIC2 and Chap1, is a member of the ubiquilin protein family, which regulate the degradation of cellular proteins through proteasome or autophage-like pathways. Humans have four ubiquilin genes, each encoding a separate protein referred to as Ubiquilin 1, 2, 3 and 4. All ubiquilins contain an N-terminal ubiquitin-like (UBL) domain and a C-terminal ubiquitin-associated (UBA) domain, while the central part of the molecules are highly variable. The UBL domains bind subunits of the proteasome, and the UBA domains binds to polyubiquitin chains that are typically conjugated onto proteins marked for proteosomal degradation. Ubiquilin 2 has a unique region close to the C terminus containing 12 PXX tandem collagen like repeats, where P is proline and X is most cases valine, glycine, isoleucine or threonine. Teepu Siddique and his collaborators have identified mutations in the ubiquilin 2 gene leading to protein point mutations which were important contributors to several forms of amyotrophic lateral sclerosis (ALS) and Frontotemporal lobar degeneration (FTLD). Interestingly, these mutations involved alterations in proline residues in the PXX repeat region (P497H, P497S, P506T, P509S and P525S). Recently, the Lee and Trojanowski group investigated C9orf72 hexanucleotide expansion and ubiquilin 2 pathology in patients with ALS and FTLD by genetic analysis and immunohistochemistry and found distinct Ubiquilin 2 pathology in ALS and FTLD-TDP with C9orf72 expansion. C9orf72 hexonucleotide expansion is the most common cause to date of familial ALS and FTLD. Ubiquilin 2 protein is of different molecular size in mouse and human, 638 and 624 amino acids respectively. As a result the mouse protein, endogenously expressed in rodent 3T3 cells, runs on SDS-PAGE and western blots slightly slower than the human protein.

Alternate Names

CHAP1, CHAP1/DSK2, DSK2, DSK2 homolog, FLJ10167, FLJ56541, hPLIC-2, N4BP4LIC-2, Nedd4 binding protein 4, PLIC-2, PLIC2Dsk2, Protein linking IAP with cytoskeleton 2, RIHFB2157, ubiquilin 2, ubiquilin-2, Ubiquitin-like product Chap1/Dsk2

Entrez Gene IDs

29978 (Human)

Gene Symbol

UBQLN2

OMIM

300264 (Human)

UniProt

Additional Ubiquilin 2 Products

Product Documents for Ubiquilin 2 Antibody (6H9)

Certificate of Analysis

To download a Certificate of Analysis, please enter a lot number in the search box below.

Product Specific Notices for Ubiquilin 2 Antibody (6H9)

This product is for research use only and is not approved for use in humans or in clinical diagnosis. Primary Antibodies are guaranteed for 1 year from date of receipt.
