UCH-L1/PGP9.5 Antibody (BH7) [CoraFluor™ 1]

Novus Biologicals, part of Bio-Techne | Catalog # NB110-58869CL1

Novus Biologicals, part of Bio-Techne

Key Product Details

Species Reactivity

Human, Mouse, Rat, Porcine, Bovine, Equine

Applications

Immunocytochemistry/ Immunofluorescence, Immunohistochemistry, Immunohistochemistry Free-Floating, Simple Western, Western Blot

Label

CoraFluor 1

Antibody Source

Monoclonal Mouse IgG1 Clone # BH7

Concentration

Please see the vial label for concentration. If unlisted please contact technical services.

Product Specifications

Immunogen

Recombinant full length human UCHL1 purified from E. coli. [Swiss-Prot# P09936]

Localization

Cytoplasm. Endoplasmic reticulum membrane; Lipid-anchor. Note: About 30% of total UCHL1 is associated with membranes in brain.

Marker

pan-Neuronal Marker

Clonality

Monoclonal

Host

Mouse

Isotype

IgG1

Description

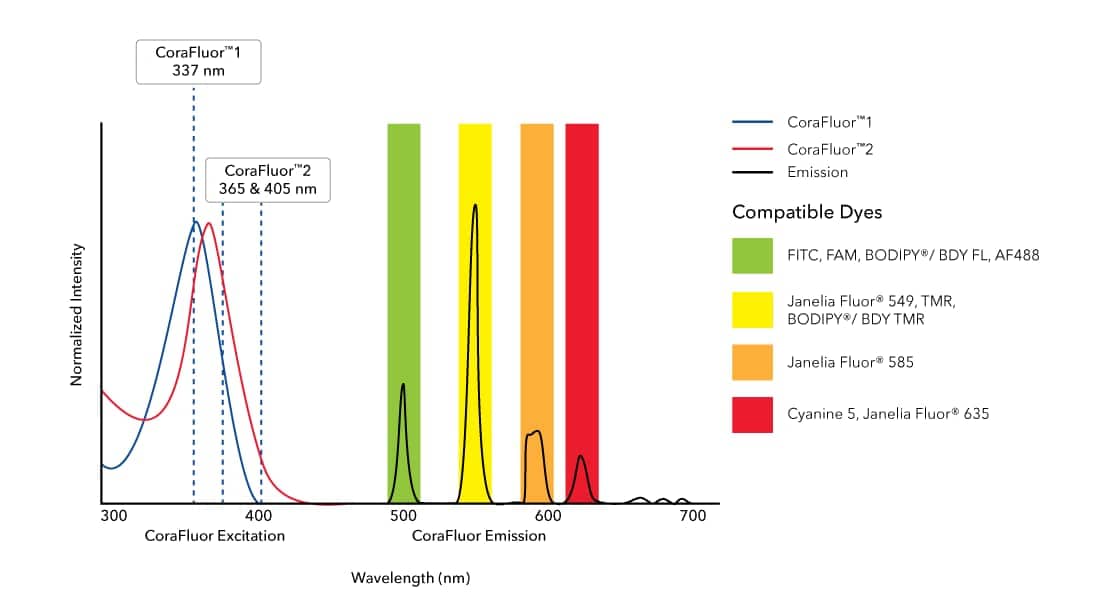

CoraFluor(TM) 1 is a high performance terbium-based TR-FRET (Time-Resolved Fluorescence Resonance Energy Transfer) or TRF (Time-Resolved Fluorescence) donor for high throughput assay development. CoraFluor(IM) 1 absorbs UV light at approximately 340 nm, and emits at approximately 490 nm, 545 nm, 585 nm and 620 nm. It is compatible with common acceptor dyes that absorb at the emission wavelengths of CoraFluor(TM) 1. CoraFluor(TM) 1 can be used for the development of robust and scalable TR-FRET binding assays such as target engagement, ternary complex, protein-protein interaction and protein quantification assays.

Applications for UCH-L1/PGP9.5 Antibody (BH7) [CoraFluor™ 1]

Application
Recommended Usage

Immunocytochemistry/ Immunofluorescence

Optimal dilutions of this antibody should be experimentally determined.

Immunohistochemistry

Optimal dilutions of this antibody should be experimentally determined.

Immunohistochemistry Free-Floating

Optimal dilutions of this antibody should be experimentally determined.

Simple Western

Optimal dilutions of this antibody should be experimentally determined.

Western Blot

Optimal dilutions of this antibody should be experimentally determined.
Application Notes
Optimal dilution of this antibody should be experimentally determined.

Formulation, Preparation, and Storage

Purification

Affinity purified

Formulation

PBS

Preservative

No Preservative

Concentration

Please see the vial label for concentration. If unlisted please contact technical services.

Shipping

The product is shipped with polar packs. Upon receipt, store it immediately at the temperature recommended below.

Stability & Storage

Store at 4C in the dark. Do not freeze.

Background: UCH-L1/PGP9.5

Ubiquitin carboxyl-terminal hydrolase isozyme L1 (UCHL1) is a soluble cytoplasmic protein found in neurons and in cells of the diffuse neuroendocrine system, and their respective tumors. Therefore, UCH-L1 has been widely used as a peripheral nerve fiber marker. UCHL-1 functions as a tissue-specific ubiquitin carboxyl terminal hydrolase isoenzyme involved in the processing of both ubiquitin precursors and ubiquitinated proteins.

UCH L1 is down-regulated in brains from Parkinson disease and Alzheimer disease patients, and certian site specific mutations in the UCHL1 gene can either increase or decrese the risk of Parkinson's and/or Alzheimer's neurodegenerative diseases.

Human UCHL 1 and the closely related UCHL3 protein have one of the most complicated knot structures ever discovered, with five knot crossings. This knot structure is expected to help the protein resist degradation in the proteasome.

Long Name

Ubiquitin C-terminal Hydrolase L1

Alternate Names

PARK5, PGP9.5, UCHL1

Gene Symbol

UCHL1

Additional UCH-L1/PGP9.5 Products

Product Documents for UCH-L1/PGP9.5 Antibody (BH7) [CoraFluor™ 1]

Certificate of Analysis

To download a Certificate of Analysis, please enter a lot number in the search box below.

Product Specific Notices for UCH-L1/PGP9.5 Antibody (BH7) [CoraFluor™ 1]

CoraFluor (TM) is a trademark of Bio-Techne Corp. Sold for research purposes only under agreement from Massachusetts General Hospital. US patent 2022/0025254

This product is for research use only and is not approved for use in humans or in clinical diagnosis. Primary Antibodies are guaranteed for 1 year from date of receipt.
