ZAP70 Antibody (2F3.2) [CoraFluor™ 1]

Novus Biologicals, part of Bio-Techne | Catalog # NBP2-47774CL1

Novus Biologicals, part of Bio-Techne
Catalog #
Availability
Size / Price
Qty
Loading...
NBP2-47774CL1

Key Product Details

Species Reactivity

Human

Applications

CyTOF-ready, Flow Cytometry, Immunocytochemistry/ Immunofluorescence, Immunofluorescence, Immunohistochemistry, Immunohistochemistry-Paraffin, Simple Western

Label

CoraFluor 1

Antibody Source

Monoclonal Mouse IgG2a Kappa Clone # 2F3.2

Concentration

Please see the vial label for concentration. If unlisted please contact technical services.

Product Specifications

Immunogen

Recombinant ZAP-70 protein including residues 1-254 and encompassing SH2 domains of human ZAP70 (Uniprot: P43403)

Localization

Cell Surface and Cytoplasmic

Specificity

ZAP70 is a 70kDa protein tyrosine kinase found in T-cells and natural killer cells. Control of this protein translation is via the IgVH gene. In Western blotting of whole cell lysates of normal peripheral blood mononuclear cells, the antibody labels a band corresponding to ZAP70. In Western blotting of whole cell lysates of CD19-positive Purified leukemia cells from patients with Ig-unmutated and Ig-mutated CLL, the antibody labels a band corresponding to ZAP70 in the Ig-unmutated CLL samples, whereas no band is observed in the Ig-mutated CLL samples. In Western blotting of cell lysates of Jurkat cells (T-lymphoblastic cell line), the antibody labels a band of 70kDa protein. In Western blotting of cell lysates of A431 cells (carcinoma cell line), no band is observed. ZAP70 protein is expressed in leukemic cells of approximately 25% of chronic lymphocytic leukemia (CLL) cases as well. Anti-ZAP70 expression is an excellent surrogate marker for the distinction between the Ig-mutated (anti-ZAP70 negative) and Ig-unmutated (anti-ZAP70 positive) CLL subtypes and can identify patient groups with divergent clinical courses. The anti-ZAP70 positive Ig-unmutated CLL cases have been shown to have a poorer prognosis.

Marker

Chronic Lymphocytic Leukemia Marker

Clonality

Monoclonal

Host

Mouse

Isotype

IgG2a Kappa

Description

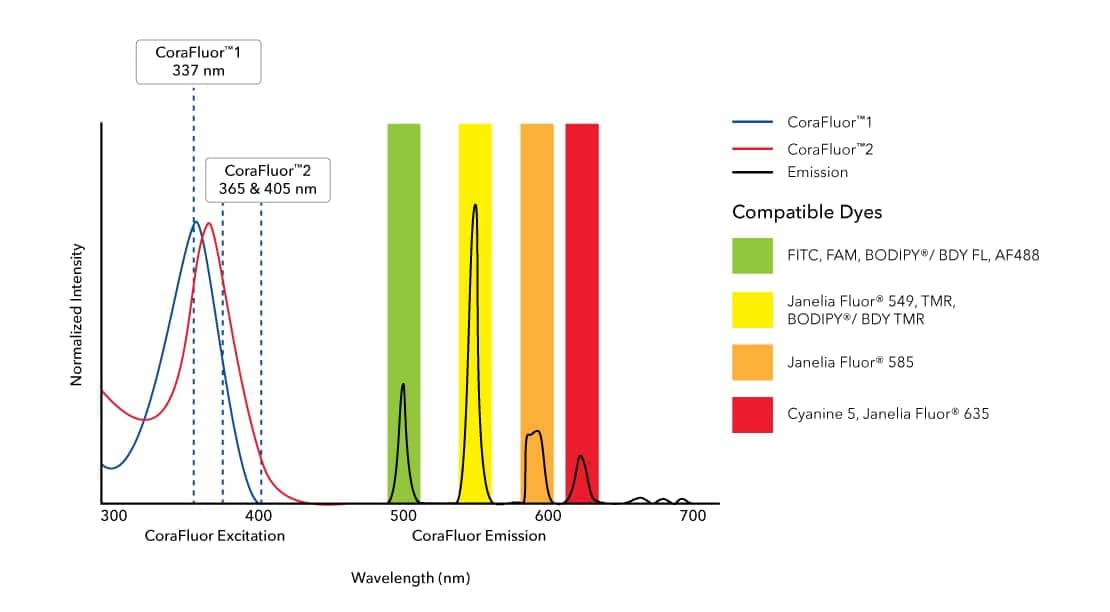

CoraFluor(TM) 1 is a high performance terbium-based TR-FRET (Time-Resolved Fluorescence Resonance Energy Transfer) or TRF (Time-Resolved Fluorescence) donor for high throughput assay development. CoraFluor(IM) 1 absorbs UV light at approximately 340 nm, and emits at approximately 490 nm, 545 nm, 585 nm and 620 nm. It is compatible with common acceptor dyes that absorb at the emission wavelengths of CoraFluor(TM) 1. CoraFluor(TM) 1 can be used for the development of robust and scalable TR-FRET binding assays such as target engagement, ternary complex, protein-protein interaction and protein quantification assays.

Applications for ZAP70 Antibody (2F3.2) [CoraFluor™ 1]

Application
Recommended Usage

CyTOF-ready

Optimal dilutions of this antibody should be experimentally determined.

Flow Cytometry

Optimal dilutions of this antibody should be experimentally determined.

Immunocytochemistry/ Immunofluorescence

Optimal dilutions of this antibody should be experimentally determined.

Immunofluorescence

Optimal dilutions of this antibody should be experimentally determined.

Immunohistochemistry

Optimal dilutions of this antibody should be experimentally determined.

Immunohistochemistry-Paraffin

Optimal dilutions of this antibody should be experimentally determined.

Simple Western

Optimal dilutions of this antibody should be experimentally determined.
Application Notes
Optimal dilution of this antibody should be experimentally determined.

Formulation, Preparation, and Storage

Purification

Protein A or G purified

Formulation

PBS

Preservative

No Preservative

Concentration

Please see the vial label for concentration. If unlisted please contact technical services.

Shipping

The product is shipped with polar packs. Upon receipt, store it immediately at the temperature recommended below.

Stability & Storage

Store at 4C in the dark. Do not freeze.

Background: ZAP70

Zap-70, a Syk-family protein tyrosine kinase, plays a critical role in mediating T cell signal transduction in response to T cell receptor (TCR) activation (1). TCR-mediated activation of the Src-family kinases, Lck and Fyn, results in tyrosine phosphorylation of the TCR zeta and CD3 chains. These domains serve as targets for binding of ZAP-70 via its tandem SH2 domains. This binding correlates with activation of ZAP-70, a critical event in T cell activation (2). Following TCR engagement, ZAP-70 is phosphorylated on several tyrosine residues, presumably by two mechanisms: an autophosphorylation and a trans-phosphorylation by the Src-family tyrosine kinase, Lck. Phosphorylation of Tyr319 is required for full activation and increased positive downstream regulation by ZAP-70 (3).

Long Name

Zeta-chain [TCR] Associated Protein Kinase 70 kDa

Alternate Names

mrtle, mur, SRK, STD, TZK

Gene Symbol

ZAP70

Additional ZAP70 Products

Product Documents for ZAP70 Antibody (2F3.2) [CoraFluor™ 1]

Certificate of Analysis

To download a Certificate of Analysis, please enter a lot number in the search box below.

Product Specific Notices for ZAP70 Antibody (2F3.2) [CoraFluor™ 1]

CoraFluor (TM) is a trademark of Bio-Techne Corp. Sold for research purposes only under agreement from Massachusetts General Hospital. US patent 2022/0025254

This product is for research use only and is not approved for use in humans or in clinical diagnosis. Primary Antibodies are guaranteed for 1 year from date of receipt.
