Recombinant Human Siglec-2/CD22 Fc Alexa Fluor® 647 Protein Best Seller
R&D Systems, part of Bio-Techne | Catalog # AFR1968
Fc Chimera
Key Product Details
Learn more about FluorokinesTM Fluorescent-Labeled Proteins
Source
NS0
Accession #
Structure / Form
Disulfide-linked homodimer
Labeled with Alexa Fluor® 647
Excitation Wavelength: 650 nm
Emission Wavelength: 668 nm
Labeled with Alexa Fluor® 647
Excitation Wavelength: 650 nm
Emission Wavelength: 668 nm
Conjugate
Alexa Fluor 647 (Excitation= 650 nm, Emission= 668 nm)
Applications
Bioactivity
Product Specifications
Source
Mouse myeloma cell line, NS0-derived human Siglec-2/CD22 protein
| Human Siglec-2 (Asp20-Arg687) Accession # CAA42006.1 |
DIEGRMD | Human IgG1 (Pro100-Lys330) |
| N-terminus | C-terminus |
Purity
>90%, by SDS-PAGE visualized with Silver Staining and quantitative densitometry by Coomassie® Blue Staining.
Endotoxin Level
<1.0 EU per 1 μg of the protein by the LAL method.
N-terminal Sequence Analysis
Asp20
Predicted Molecular Mass
101.9 kDa (monomer)
SDS-PAGE
120-132 kDa, under reducing conditions.
Activity
Measured by flow cytometry for its ability to bind anti-human Siglec‑2/CD22 Monoclonal Antibody conjugated beads.The concentration of Recombinant Human Siglec‑2/CD22 Fc Chimera Alexa Fluor® 647 (Catalog # AFR1968) that produces 50% of the binding response is 2.50‑25.0 ng/mL
Scientific Data Images for Recombinant Human Siglec-2/CD22 Fc Alexa Fluor® 647 Protein
Flow cytometry analysis for Recombinant Human Siglec‑2/CD22 Fc Chimera Alexa Fluor® 647 staining on anti-human Siglec‑2/CD22 Monoclonal Antibody conjugated beads.
Streptavidin coated beads conjugated to biotinylated anti-human Siglec‑2/CD22 Monoclonal Antibody were stained with the indicated concentrations of Recombinant Human Siglec‑2/CD22 Fc Chimera Alexa Fluor® 647 (Catalog # AFR1968).

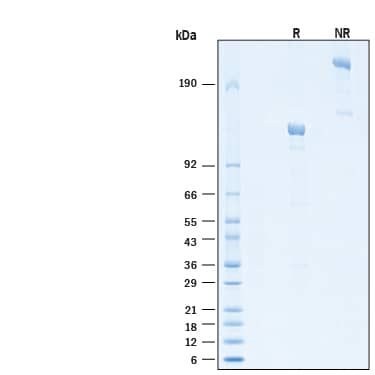

Recombinant Human Siglec‑2/CD22 Fc Chimera Alexa Fluor® 647 Protein SDS-PAGE.
2 μg/lane of Recombinant Human Siglec‑2/CD22 Fc Chimera Alexa Fluor® 647 Protein (Catalog # AFR1968) was resolved with SDS-PAGE under reducing (R) and non-reducing (NR) conditions and visualized by Coomassie® Blue staining, showing bands at 120-132 kDa and 240-260 kDa, respectively.Formulation, Preparation and Storage
AFR1968
| Formulation | Supplied as a 0.2 μm filtered solution in PBS with BSA as a carrier protein. |
| Shipping | The product is shipped with dry ice or equivalent. Upon receipt, store it immediately at the temperature recommended below. |
| Stability & Storage | Protect from light. Use a manual defrost freezer and avoid repeated freeze-thaw cycles.
|
Background: Siglec-2/CD22
Siglecs (sialic acid binding Ig-like lectins) are I-type (Ig-type) lectins belonging to the Ig superfamily. They are characterized by an N-terminal Ig-like V-type domain which mediates sialic acid binding, followed by varying numbers of Ig-like C2-type domains (1, 2). Eleven human Siglecs have been cloned and characterized. They are sialoadhesin/CD169/Siglec-1, CD22/Siglec-2, CD33/Siglec-3, Myelin-Associated Glycoprotein (MAG/Siglec-4a) and the identified Siglecs 5 to 11 (1 ‑ 3). To date, no Siglec has been shown to recognize any cell surface ligand other than sialic acid, suggesting that interactions with glycans containing this carbohydrate are important in mediating the biological functions of Siglecs. Human Siglec-2, also known as B-cell antigen CD22 or B-lymphocyte cell adhesion molecule (BL-CAM), is a B-cell restricted glycoprotein that is expressed in the cytoplasm of progenitor B and pre-B cells and on the surface of mature B cells. Two distinct human Siglec-2/CD22 cDNAs that arise from differential RNA processing of the same gene have been isolated. The predominant Siglec-2/CD22 beta encodes an 847 amino acid (aa) polypeptide with a hydrophobic signal peptide, an N-terminal Ig-like V-type domain, six Ig-like C2-type domains, a transmembrane region and a cytoplasmic tail with 4 immunoreceptor tyrosine-based inhibition motifs (ITIMs) (4). The variant Siglec-2/CD22 alpha encodes a 647 aa polypeptide missing two Ig-like C2-type domains and has a truncated (23 aa) cytoplasmic tail (5). Siglec-2/CD22 is an adhesion molecule that preferentially binds alpha2,6- linked sialic acid on the same (cis) or adjacent (trans) cells. Interaction of CD22 with trans ligands on opposing cells was found to be favored over the binding of ligands in cis (9). Besides its role as an adhesion molecule, Siglec-2/CD22 is a coreceptor that physically interacts with B-cell receptor (BCR) and is rapidly phosphorylated upon BCR ligation. It negatively regulates BCR signals by recruiting tyrosine phosphatase SHP-1 to its ITIMs. Phosphorylated Siglec-2/CD22 can also interact with other intracellular effector proteins such as Syk, PLC gamma, PI3 kinase and Grb-2, suggesting it may play a role in positive signaling (2, 7, 8).
References
- Crocker, P.R. and A. Varki (2001) Trends Immunol. 22:337.
- Crocker, P.R. and A. Varki (2001) Immunology 103:137.
- Angata, T. et al. (2002) J. Biol. Chem. 277:24466.
- Wilson, G.L et al. (1991) J. Exp. Med. 173:137.
- Stamenkovic, I. and B. Seed (1990) Nature 345:74.
- Kelm, S. et al. (1994) Current Bio. 4:965.
- Ravetch, J.V. and L.L. Lanier (2000) Science 290:84.
- Wienands, Y.J. et al. (1999) J. Biol. Chem. 274:18769.
- Collins, B.E. et al. (2004) Proc. Natl. Acad. Sci. 101:6104.
Long Name
Sialic Acid Binding Ig-like Lectin 2
Alternate Names
BL-CAM, CD22, Siglec2
Gene Symbol
CD22
UniProt
