A20/TNFAIP3 Antibody (59A426) - BSA Free

Novus Biologicals, part of Bio-Techne | Catalog # NBP1-77533

Novus Biologicals, part of Bio-Techne
Catalog #
Availability
Size / Price
Qty
NBP1-77533
NBP1-77533SS
Print Quote
Bulk Order
Forumulation
Catalog #
Azide Free
NBP2-33252
View Product
100% Guarantee

Key Product Details

Species Reactivity

Validated:

Human, Mouse, Rat

Cited:

Human, Mouse

Applications

Validated:

CyTOF-ready, Flow (Intracellular), Flow Cytometry, Immunocytochemistry/ Immunofluorescence, Immunohistochemistry, Immunohistochemistry-Paraffin, Immunoprecipitation, Simple Western, Western Blot

Cited:

Immunocytochemistry/ Immunofluorescence, Western Blot

Label

Unconjugated

Antibody Source

Monoclonal Mouse IgG1 kappa Clone # 59A426

Format

BSA Free

Concentration

1.0 mg/ml

View all A20/TNFAIP3 Antibodies »

Product Specifications

Immunogen

Full length recombinant human A20/TNFAIP3 Antibody (59A426). The epitope has been mapped to the C-terminal portion of A20 (amino acids 440-790)

Clonality

Monoclonal

Host

Mouse

Isotype

IgG1 kappa

Scientific Data Images for A20/TNFAIP3 Antibody (59A426) - BSA Free

Western Blot: A20/TNFAIP3 Antibody (59A426)BSA Free [NBP1-77533]

Western Blot: A20/TNFAIP3 Antibody (59A426)BSA Free [NBP1-77533]

Western Blot: A20/TNFAIP3 Antibody (59A426) [NBP1-77533] - Human Jurkat lysate probed with A20 antibody at 4 ug/ml.
Flow Cytometry: A20/TNFAIP3 Antibody (59A426) - BSA Free [NBP1-77533]

Flow Cytometry: A20/TNFAIP3 Antibody (59A426) - BSA Free [NBP1-77533]

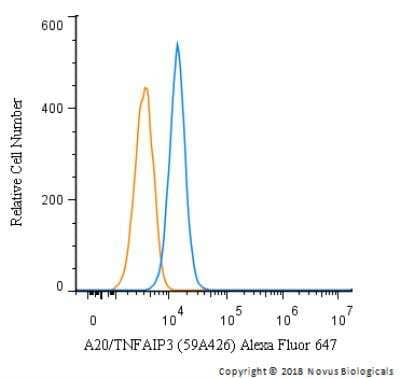

Flow Cytometry: A20/TNFAIP3 Antibody (59A426) [NBP1-77533] - An intracellular stain was performed on SK-MEL-28 cells with A20/TNFAIP3 (59A426) antibody NBP1-77533AF647 (blue) and a matched isotype control (orange). Cells were fixed with 4% PFA and then permeablized with 0.1% saponin. Cells were incubated in an antibody dilution of 2.5 ug/mL for 30 minutes at room temperature. Both antibodies were conjugated to Alexa Fluor 647.
Simple Western: A20/TNFAIP3 Antibody (59A426)BSA Free [NBP1-77533]

Simple Western: A20/TNFAIP3 Antibody (59A426)BSA Free [NBP1-77533]

Simple Western: A20/TNFAIP3 Antibody (59A426) [NBP1-77533] - Lane view shows a specific band for A20/TNFAIP3 in 0.05 mg/ml of Jurkat lysate. This experiment was performed under reducing conditions using the 12-230 kDa separation system.
View 5 more images

Applications for A20/TNFAIP3 Antibody (59A426) - BSA Free

Application
Recommended Usage

Flow (Intracellular)

2.5 ug/ml. Use reported in scientific literature (Hjelmeland (2010))

Flow Cytometry

2.5 ug/ml

Immunocytochemistry/ Immunofluorescence

10 ug/ml

Immunohistochemistry

5 - 10 ug/ml

Immunohistochemistry-Paraffin

5 - 10 ug/ml. Use reported in scientific literature (Metellus (2010))

Immunoprecipitation

1-2 ug/ml

Simple Western

1:100

Western Blot

2-4 ug/ml
Application Notes
Multiple A20 cleavage fragments have been described in Western Blot, see Coornaert (2008) and Hailfinger (2009) for additional details.

In Simple Western only 10 - 15 ul of the recommended dilution is used per data point. Separated by Size-Wes, Sally Sue/Peggy Sue. This antibody is CyTOF ready.
Please Note: Optimal dilutions of this antibody should be experimentally determined.

Formulation, Preparation, and Storage

Purification

Protein G purified

Formulation

PBS

Format

BSA Free

Preservative

0.02% Sodium Azide

Concentration

1.0 mg/ml

Shipping

The product is shipped with polar packs. Upon receipt, store it immediately at the temperature recommended below.

Stability & Storage

Store at -20C. Avoid freeze-thaw cycles.

Background: A20/TNFAIP3

A20, TNFalpha-induced protein 3, TNFAIP3 (theoretical molecular weight 95 kDa) is an important regulator of pro-inflammatory signaling pathways such as NF-kB activation and tumor necrosis factor (TNF)-mediated programmed cell death (1, 2). In macrophages, A20/TNFAIP3 controls the release of IL-1 beta/IL-18 by regulating NLRP3 inflammasome activity and CXCL9/CXCL10 production via STAT1 signaling. By regulating the expression of inflammatory molecules such as IL-6 and anti-apoptotic proteins in dendritic cells, A20/TNFAIP3 maintains T-cell and B-cell homeostasis.

A20/TNFAIP3 is a highly conserved protein sharing >90% amino acid sequence identity across various mammalian species and is highly expressed in T-cell and B-cells. Coding and non-coding single nucleotide polymorphisms (SNPs) of A20/TNFAIP3 have been associated with multiple autoinflammatory and autoimmune diseases including type 1 diabetes, rheumatoid arthritis, Crohn's disease, and systemic lupus erythematosus (SLE) (3). The two domains of A20/TNFAIP3 cooperate to regulate NF-kB signaling. Its N-terminal ovarian tumor (OTU) domain contains a catalytic cysteine (C103) which functions as a K63 deubiquitinase, whereas the 7 zinc fingers that make up the C-terminal domain mediate K48 polyubiquitination. To regulate NF-kB signaling, A20/TNFAIP3 removes K63-polyubiquitin chains from receptor-interacting protein 1 (RIP1) and NF-kB essential modulator (NEMO), thus preventing interactions with downstream partners. A20/TNFAIP3 also contributes to the degradation of RIP1 and Ubc13 through the addition of K48 polyubiquitin chains (4).

References

1.Dixit VM1, Green S, Sarma V, Holzman LB, Wolf FW, O'Rourke K, Ward PA, Prochownik EV, Marks RM. (1990) Tumor necrosis factor-alpha induction of novel gene products in human endothelial cells including a macrophage-specific chemotaxin. J Biol Chem. 265(5):2973-8. PMID: 2406243

2.Verstrepen L, Verhelst K, van Loo G, Carpentier I, Ley SC, Beyaert R. (2010) Expression, biological activities and mechanisms of action of A20 (TNFAIP3). Biochem Pharmacol. 80(12):2009-20. PMID: 20599425

3.Mele A, Cervantes JR, Chien V, Friedman D, Ferran C. (2014) Single nucleotide polymorphisms at the TNFAIP3/A20 locus and susceptibility/resistance to inflammatory and autoimmune diseases. Adv Exp Med Biol. 809:163-83. PMID: 25302371

4.Das T, Chen Z, Hendriks RW, Kool M. (2018) A20/Tumor Necrosis Factor alpha-Induced Protein 3 in Immune Cells Controls Development of Autoinflammation and Autoimmunity: Lessons from Mouse Models. Front Immunol. 9:104. PMID: 29515565

Alternate Names

OTUD7C, TNFA1P2, TNFAIP3

Gene Symbol

TNFAIP3

UniProt

P21580

Additional A20/TNFAIP3 Products

Product Documents for A20/TNFAIP3 Antibody (59A426) - BSA Free

Product Datasheets

Certificate of Analysis

To download a Certificate of Analysis, please enter a lot number in the search box below.

Download SDS

Product Specific Notices for A20/TNFAIP3 Antibody (59A426) - BSA Free

This product is for research use only and is not approved for use in humans or in clinical diagnosis. Primary Antibodies are guaranteed for 1 year from date of receipt.
