Connexin 26/GJB2 Antibody - BSA Free

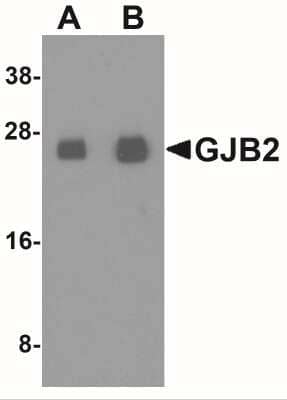

Western Blot: Connexin 26/GJB2 AntibodyBSA Free [NBP2-41304]

Western Blot: Connexin 26/GJB2 Antibody [NBP2-41304] - Western blotting analysis detects Cx26 using R(alpha)Cx26-Ct or R(alpha)Cx26-cl antibodies. (a) R(alpha)Cx26-Ct (A) and R(alpha)Cx26-cl (B) antibodies detected a specific 26kDa band on pig heart tissue lysates (lanes A and B are cropped blots obtained from the same gel). R(alpha)Cx26-cl recognized the 26kDa band on human and rat heart (H) lysates and on rat liver (L) sample (positive control) although two unspecific bands at molecular weights lower than 26kDa were detected. No bands were detected on smooth muscle (SM) tissue lysates (negative control) by R(alpha)Cx26-cl. R(alpha)GAPDH was used as protein loading control for rat tissue samples run on the same gel. Image collected and cropped by CiteAb from the following publication (nature.com/articles/s41598-018-32405-2), licensed under a CC-BY license.

Immunocytochemistry/ Immunofluorescence: Connexin 26/GJB2 Antibody - BSA Free [NBP2-41304]

Immunocytochemistry/Immunofluorescence: Connexin 26/GJB2 Antibody [NBP2-41304] - Cx26 distribution at level of the cardiomyocyte cytoplasm. Confocal laser scanning microscopy: representative images of rat and pig heart sections. Double immunofluorescence analysis for Cx26 (red) and Cx43 (green) show a distinct cell localization of the two Cxs. (a) Three dimensional picture of the maximum intensity projection of the raw images of longitudinal rat heart section treated with R(alpha)Cx26-cl and M(alpha)Cx43. Scale bar: 20um. Image collected and cropped by CiteAb from the following publication (nature.com/articles/s41598-018-32405-2), licensed under a CC-BY license.

Immunohistochemistry: Connexin 26/GJB2 Antibody - BSA Free [NBP2-41304]

Immunohistochemistry: Connexin 26/GJB2 Antibody [NBP2-41304] - Human and rat cardiomyocytes immunoreact with R(alpha)Cx26 antibodies. Representative images of immunohistochemical analysis for Cx26 by R(alpha)Cx26-Ct or R(alpha)Cx26-cl antibodies. Longitudinal (c and d) sections showing positivity in cardiomyocytes and in smooth muscle cells of vessel (arrow); Rat (d) immunoperoxidase shows brown immunoreaction in the cell cytoplasm of working cardiomyocytes and in smooth muscle cells of vessels (arrows); positivity of cardiomyocytes and smooth muscle cells has shown, at higher magnification, in longitudinal (d) and cross sections (c); Negative controls are shown in the squares. Scale bars: 50um. Image collected and cropped by CiteAb from the following publication (nature.com/articles/s41598-018-32405-2), licensed under a CC-BY license.
