CRISPR-Cas9 Antibody (SR1104)

Novus Biologicals, part of Bio-Techne | Catalog # NBP3-21732

Recombinant Monoclonal Antibody
Novus Biologicals, part of Bio-Techne
Catalog #
Availability
Size / Price
Qty
NBP3-21732-100ul
NBP3-21732-50ul
Print Quote
Bulk Order
100% Guarantee

Key Product Details

Species Reactivity

S. aureus

Applications

Flow Cytometry, Immunocytochemistry/ Immunofluorescence, Immunohistochemistry, Immunoprecipitation, Western Blot

Label

Unconjugated

Antibody Source

Recombinant Monoclonal Rabbit IgG Clone # SR1104

Concentration

Please see the vial label for concentration. If unlisted please contact technical services.

View all CRISPR-Cas9 Antibodies »

Product Specifications

Immunogen

A synthesized peptide derived from CRISPR-Cas9 (Uniprot #: J7RUA5)

Specificity

Detects endogenous levels of total CRISPR-Cas9

Clonality

Monoclonal

Host

Rabbit

Isotype

IgG

Theoretical MW

124 kDa.
Disclaimer note: The observed molecular weight of the protein may vary from the listed predicted molecular weight due to post translational modifications, post translation cleavages, relative charges, and other experimental factors.

Scientific Data Images for CRISPR-Cas9 Antibody (SR1104)

Western Blot: CRISPR-Cas9 Antibody (SR1104) [NBP3-21732] -

Western Blot: CRISPR-Cas9 Antibody (SR1104) [NBP3-21732] - Western blot analysis using NBP3-21732 in (1) 293T cell lysate transfected with CRISPR-Cas9; (2) 293T cell lysate; (3) 3T3 cell lysate; (4) PC12 cell lysate.
CRISPR-Cas9 Antibody (SR1104)

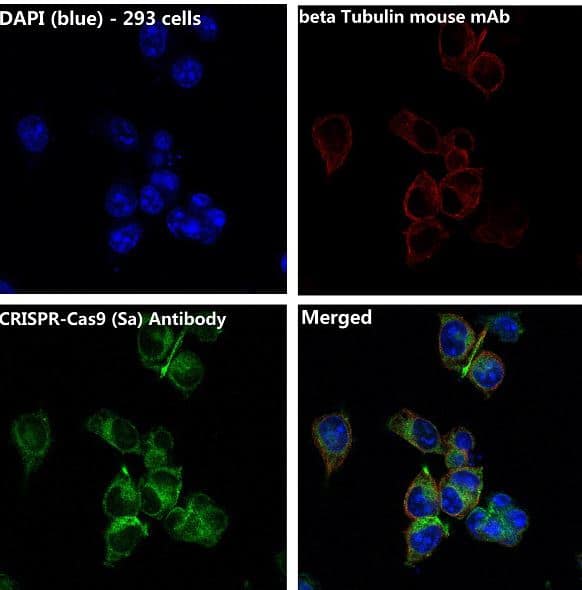

ICC/IF-CRISPR-Cas9 Antibody (SR1104)-NBP3-21732-

ICC/IF-CRISPR-Cas9 Antibody (SR1104)-NBP3-21732- Analysis of 293T cells transfected with CRISPR-Cas9 SA, using CRISPR-Cas9 SA Antibody .

Applications for CRISPR-Cas9 Antibody (SR1104)

Application
Recommended Usage

Flow Cytometry

1:50

Immunocytochemistry/ Immunofluorescence

1:50-1:200

Immunohistochemistry

1:50-1:200

Immunoprecipitation

1:30

Western Blot

1:1000-1:5000

Formulation, Preparation, and Storage

Purification

Affinity purified

Formulation

PBS, pH 7.4, 150mM NaCl, 50% glycerol.

Preservative

0.02% Sodium Azide

Concentration

Please see the vial label for concentration. If unlisted please contact technical services.

Shipping

The product is shipped with polar packs. Upon receipt, store it immediately at the temperature recommended below.

Stability & Storage

Store at 4C short term. Aliquot and store at -20C long term. Avoid freeze-thaw cycles.

Background: CRISPR-Cas9

Clustered regularly interspaced short palindromic repeats (CRISPRs) are derived from DNA fragments of bacteriophages that infect prokaryotes. When infected, the bacteria capture snips of DNA from the invading virus to create CRISPR arrays. During subsequent infections, the bacteria produce RNA segments from the CRISPR arrays to target the virus' DNA. CRISPR-associated protein 9 (Cas9) is RNA-guided, binds DNA, and is a cleaving enzyme that functions as an integral component of the bacterial CRISPR adaptive immune system that targets the virus' DNA to disable it (1). To check for sites complementary to the 20 base pair spacer region of the guide RNA (gRNA) of the CRISPR, Cas9 unwinds foreign DNA that invades the bacteria. If the DNA substrate is complementary to the gRNA, Cas9 cleaves the invading DNA, rendering the virus disabled. The presence of a 5'-NGG-3' protospacer adjacent motif (PAM) sequence immediately downstream of the target DNA (protospacer) is required for Cas9 cleavage of foreign DNA. As PAM is absent in bacterial CRISPR loci, cleavage of the host genome is avoided and provides a novel sequence for identification of foreign DNA by Cas9.

Using CRISPR-Cas9 technology, double-stranded DNA breaks may be induced within specific targeted genome sequences (target DNA; protospacer) for insertion or removal of DNA sequences for gene editing applications. To target a specific loci, a gRNA that will bind to a specific target sequence of DNA within a genome is created. The gRNA will recognize the DNA sequence, and the Cas9 enzyme will cleave the DNA at the targeted location. Once the targeted DNA is removed by Cas9, the cell's own DNA repair mechanism is used to insert or remove a DNA sequence for genomic editing.

Cas9 detection is used to confirm and evaluate CRISPR Cas9 gRNA transfection efficiency. Western blot analysis of CRISPR-Cas9 gRNA transfected cell lysates with Cas9 antibodies identifies the protein having a theoretical molecular weight of 160kDa. Broad areas of research are benefiting from CRISPR-Cas9 based gene editing tools including studies of basic immunity functions, genetic screening and disease treatment (2). Ethical concerns have led to many countries making it illegal to manipulate human germline cells or perform embryo genome editing.

References

1. Oakes, B. L., Fellmann, C., Rishi, H., Taylor, K. L., Ren, S. M., Nadler, D. C., . . . Savage, D. F. (2019). CRISPR-Cas9 Circular Permutants as Programmable Scaffolds for Genome Modification. Cell, 176(1-2), 254-267.e216. doi:10.1016/j.cell.2018.11.052

2. Chiou, S. H., Winters, I. P., Wang, J., Naranjo, S., Dudgeon, C., Tamburini, F. B., . . . Winslow, M. M. (2015). Pancreatic cancer modeling using retrograde viral vector delivery and in vivo CRISPR/Cas9-mediated somatic genome editing. Genes Dev, 29(14), 1576-1585. doi:10.1101/gad.264861.115

Long Name

CRISPR-associated Protein 9

Alternate Names

Cas9, CRISPR-associated endonuclease Cas9/Csn1, CRISPR-Cas9/Csn1, CRISPR/Cas9, csn1, SPy_1046, SPy1046, SpyCas9

Gene Symbol

Cas9

Additional CRISPR-Cas9 Products

Product Documents for CRISPR-Cas9 Antibody (SR1104)

Product Datasheets

Certificate of Analysis

To download a Certificate of Analysis, please enter a lot number in the search box below.

Download SDS

Product Specific Notices for CRISPR-Cas9 Antibody (SR1104)

This product is for research use only and is not approved for use in humans or in clinical diagnosis. Primary Antibodies are guaranteed for 1 year from date of receipt.
