GFP Antibody

Detection of GFP Tagged Protein in Western Blot Using HRP Conjugated Antibody

Total cell lysates (20ug) with protein of interest tagged with GFP was loaded. Blotted with GFP antibody [HRP] NB600-308H, without any secondary antibody. Image from verified customer review.

Immunohistochemical Staining of GFP in WT and Mutant Drosophila Ovary

Germaria from wt or chico1/KG mutant ovaries endogenously expressing Myc-GFP stained with anti-GFP, anti-1B1, and DAPI. Scale bars, 10 um. (F) Quantification of relative Myc-GFP intensity in germarium region 2B from wt or chico1/KG mutant ovaries. n = 10 germaria for each genotype. Error bars represent SEM. *p<0.005. Image collected and cropped by CiteAb from the following publication (//pubmed.ncbi.nlm.nih.gov/31612862/) licensed under a CC-BY license.

GFP Detection in Spiked HeLa Whole Cell Lysate by Western Blot

Western Blot of GFP antibody. Lane 1: Wild type GFP (0.1 ug) was used to spike HeLa whole cell lysate. Lane 2: none. Load: 30 ug per lane.Primary antibody: GFP antibody at 1:1000 for overnight at 4C.Secondary antibody: IRDye800(TM) Goat-a-Rabbit IgG [H&L] MX10 at 1:10,000 for 45 min at RT.Block: 5% BLOTTO in PBS overnight at 4C.Predicted/Observed size: 27 kDa for epitope tag GFP. Other band(s): none.

Western Blot Analysis of GFP in Transfected and Positive Control 293FT Cells

Western Blot of GFP antibody. Lane 1: 293FT cells transfected with CDK4 dominant negative (C-).Lane 2: 293FT cells positive control (C+).Load: 25 ug per lane.Primary antibody: GFP antibody at 1:400 for overnight at 4C.Secondary antibody: IRDye800(TM) rabbit secondary antibody at 1:10,000 for 45 min at RT.Block: 5% BLOTTO overnight at 4C.Predicted/Observed size: 27 kDa for GFP.

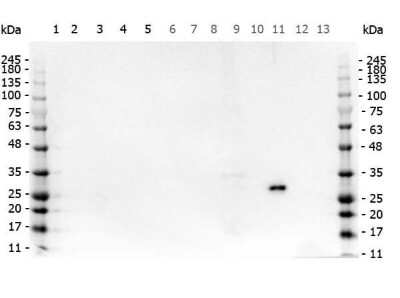

Western Blot Analysis of GFP in Multiple Cell Lysates and Proteins

Western Blot of GFP antibody. Marker: Opal Pre-stained ladder. Lane 1: HEK293 lysate. Lane 2: HeLa Lysate. Lane 3: CHO/K1 Lysate. Lane 4: MDA-MB-231. Lane 5: A431 Lysate. Lane 6: Jurkat Lysate. Lane 7: NIH/3T3 Lysate. Lane 8: E-coli HCP Control. Lane 9: FLAG Positive Control Lysate. Lane 10: Red Fluorescent Protein. Lane 11: Green Fluorescent Protein. Lane 12: Glutathione-S-Transferase Protein. Lane 13: Maltose Binding Protein. Load: 10 ug of lysate or 50ng of purified protein per lane. Primary antibody: GFP antibody at 1ug/mL overnight at 4C. Secondary antibody: Peroxidase rabbit secondary antibody at 1:30,000 for 60 min at RT. Blocking Buffer: 1% Casein-TTBS for 30 min at RT.Predicted/Observed size: 30 kDa for GFP.

Immunohistochemical Analysis of GFP in Frozen Mouse Brain

Adult mouse brain tissue. This image was submitted via customer review.

Immunocytochemistry/Immunofluorescence Imaging of GFP Labeled Dengue Virus in Dendritic Cells and Dermal Macrophages

Immuno-microscopy of GFP antibody. Monocyte derived dendritic cells and dermal macrophages were challenged and directly visualized with eGFP labeled Dengue virus to localize sequestration of virus particles in the different cells (upper). The location of the GFP was confirmed by TEM (lower magnified view) using rabbit anti GFP Primary antibody (1:200) and a gold labeled secondary antibody.

Immunohistochemical Staining of GFP in Mouse Retinal Cells

Analysis of GFP in mouse retinal cells. Image courtesy of anonymous customer review.

Immunoprecipitation Analysis in S2 Cells Using GFP Antibody

IP analysis of GFP in S2 Cells (Drosophila). Image from verified customer review.

Immunoprecipitation Analysis in HeLa Cell Lysate Using GFP Antibody

Immunoprecipitation experiments showing that GFP-MISP binds endogenous IQGAP1 (upper panel) and MISP binds to IQGAP1 endogenously using specific antibodies (lower panel) in mitotically arrested (taxol and nocodazole, respectively) HeLa cell lysates. Image collected and cropped by CiteAb from the following publication (nature.com/articles/s41598-018-24682-8), licensed under a CC-BY license.

Immunocytochemistry/ Immunofluorescence: GFP Antibody [NB600-308] -

Immunocytochemistry/ Immunofluorescence: GFP Antibody [NB600-308] - Myc is post-transcriptionally regulated by the IIS-GSK3 cascade.(A) Germaria from ovaries of ctrl, chicoRNAi, & bskRNAi driven by nos-Gal4 expressing LacZ under the control of myc endogenous promoter stained with anti-beta -galactosidase & anti-1B1. Scale bars, 10 μm. (B) A representative live imaging of germaria from flies expressing GFP-tagged Sgg under its endogenous promoter. Scale bar, 10 μm. (C) A germarium from wt flies endogenously expressing Myc-GFP stained with anti-GFP (green) & anti-p-GSK3 (red). Germarium regions are indicated. Myc protein highly corresponds to inhibited form of GSK3. Scale bar, 10 μm. Image collected & cropped by CiteAb from the following publication (https://pubmed.ncbi.nlm.nih.gov/31612862), licensed under a CC0-1.0 license. Not internally tested by Novus Biologicals.

Immunocytochemistry/ Immunofluorescence: GFP Antibody [NB600-308] -

Immunocytochemistry/ Immunofluorescence: GFP Antibody [NB600-308] - Myc protein pattern in the ovary.(A) A representative low-magnification image of ovarioles from flies endogenously expressing Myc-GFP stained with anti-GFP, anti-1B1, & DAPI. Note that Myc level is low in early germarium stages, becomes high from germarium region 2B, & reduces from the stage-10 egg chamber. Scale bar, 50 μm. Image collected & cropped by CiteAb from the following publication (https://pubmed.ncbi.nlm.nih.gov/31612862), licensed under a CC0-1.0 license. Not internally tested by Novus Biologicals.

Western Blot: GFP Antibody [NB600-308] -

Western Blot: GFP Antibody [NB600-308] - MISP interacts & co-localizes with IQGAP1. (a) HEK293T cells transiently overexpressing GFP-IQGAP1 & FLAG-MISP were used for co-immunoprecipitation experiments from both sides (GFP trap or FLAG M2 beads). (b) Endogenous immunoprecipitation using IQGAP1 antibody or control immunoglobulin (IgG) was carried out in HeLa cell lysates & MISP was detected in the eluate. (c) In vitro interaction between purified MBP-MISP & GST-IQGAP1 was detected by GST & MBP pull-down experiments. (d) Immunoprecipiation experiments showing that GFP-MISP binds endogenous IQGAP1 (upper panel) & MISP binds to IQGAP1 endogenously using specific antibodies (lower panel) in mitotically arrested (taxol & nocodazole, respectively) HeLa cell lysates. (a–d) Images were gained from the same Western blot membrane after cutting/cropping & presented with different exposure times or contrast enhancement for better presentation purposes. The dividing lane marks the grouping of images of the same (or different) membrane. Uncropped blots, where applicable, are included in Supplementary Fig. 4. (e) HeLa cells were immunostained for MISP & IQGAP1 & co-localization was visualized in mitosis in single-plane confocal images, scale bar: 5 μm. Lower pictures: After manual thresholding white spots mark the co-localizing areas in the merge images. Image collected & cropped by CiteAb from the following publication (https://pubmed.ncbi.nlm.nih.gov/29679050), licensed under a CC-BY license. Not internally tested by Novus Biologicals.

Immunocytochemistry/ Immunofluorescence: GFP Antibody [NB600-308] -

Immunocytochemistry/ Immunofluorescence: GFP Antibody [NB600-308] - BRC-1 & BRD-1 are inter-dependent for localization.A) Co-localization between BRD-1::GFP (green) & TagRFP-T::BRC-1 (red) at late pachytene in live worms. Scale bar = 10 μm. B) Stills of germline nuclei from live worms expressing GFP::BRC-1 & mCherry::Histone H2B (mCherry::his-58; gfp::brc-1); merge & GFP channel; top two panels, respectively. GFP::BRC-1 expression in brd-1(ok1623) mutant at indicated meiotic stages. Bottom two panels show BRD-1::GFP localization in wild type & the brc-1(xoe4) mutant. Images are projections through half of the gonad. TZ = transition zone; EP = early pachytene; MP = mid pachytene; LP = late pachytene; DP = diplotene; DK = diakinesis. Scale bar = 5 μm. C) Immunoblot of whole worm extracts from indicated worms probed with anti-GFP & alpha-tubulin antibodies. Lane 1 = N2: wild type; Lane 2 = JEL515: gfp::brc-1; Lane 3 = JEL520: gfp::brc-1 brd-1(ok1623); Lane 4 = JEL744: brc-1(xoe4) brd-1::gfp; Lane 5 = JEL657: brd-1::gfp; Lane 6 = JEL678: brc-1(tm1145) brd-1::gfp. Image collected & cropped by CiteAb from the following publication (https://pubmed.ncbi.nlm.nih.gov/30383767), licensed under a CC-BY license. Not internally tested by Novus Biologicals.

Western Blot: GFP Antibody [NB600-308] -

Western Blot: GFP Antibody [NB600-308] - BRC-1 & BRD-1 are inter-dependent for localization.A) Co-localization between BRD-1::GFP (green) & TagRFP-T::BRC-1 (red) at late pachytene in live worms. Scale bar = 10 μm. B) Stills of germline nuclei from live worms expressing GFP::BRC-1 & mCherry::Histone H2B (mCherry::his-58; gfp::brc-1); merge & GFP channel; top two panels, respectively. GFP::BRC-1 expression in brd-1(ok1623) mutant at indicated meiotic stages. Bottom two panels show BRD-1::GFP localization in wild type & the brc-1(xoe4) mutant. Images are projections through half of the gonad. TZ = transition zone; EP = early pachytene; MP = mid pachytene; LP = late pachytene; DP = diplotene; DK = diakinesis. Scale bar = 5 μm. C) Immunoblot of whole worm extracts from indicated worms probed with anti-GFP & alpha-tubulin antibodies. Lane 1 = N2: wild type; Lane 2 = JEL515: gfp::brc-1; Lane 3 = JEL520: gfp::brc-1 brd-1(ok1623); Lane 4 = JEL744: brc-1(xoe4) brd-1::gfp; Lane 5 = JEL657: brd-1::gfp; Lane 6 = JEL678: brc-1(tm1145) brd-1::gfp. Image collected & cropped by CiteAb from the following publication (https://pubmed.ncbi.nlm.nih.gov/30383767), licensed under a CC-BY license. Not internally tested by Novus Biologicals.

Immunocytochemistry/ Immunofluorescence: GFP Antibody [NB600-308] -

Immunocytochemistry/ Immunofluorescence: GFP Antibody [NB600-308] - Other IIS components are not altered by bsk RNAi.(A) Confocal images for germaria expressing Chico-GFP, myc-Dp110 or PDK1-GFP in the background of ctrl or bskRNAi from ovaries stained with anti-GFP or anti-myc. Scale bars, 10 μm. (B) Ovaries expressing LacZ driven by the puc promoter stained with anti-beta -galactosidase, anti-1B1, & DAPI. Note that JNK activity is moderately induced in late germarium & decreased in the following stages, while JNK activity is much stronger in follicle cells of a maturing egg. Scale bars, 20 μm. (C) Germaria from ovaries of ctrl & bskRNAi driven by nos-Gal4 stained with anti-AKT & anti-1B1. Scale bars, 10 μm. (D) Quantification of AKT intensity from cysts in germarium region 2A & 2B of ovaries with ctrl & bskRNAi driven by nos-Gal4. Intensities are normalized to the value of ctrl at region 2B. n = 7 & 8 germaria for ctrl & bskRNAi, respectively. Error bars represent SEM. *p<0.005. (E) Visualization of the InR mRNA by FISH in germaria from ovaries of ctrl & bskRNAi driven by nos-Gal4. Note that InR mRNA level is decreased by bsk RNAi. Germaria are outlined with dotted lines. Scale bars, 10 μm. (F) Quantification of InR mRNA density in region 2A & 2B germ cells from ovaries with indicated genotypes. n = 9 germaria for each genotype. Error bars represent SEM. *p<0.005. (G) Quantification of relative Myc-GFP intensity in region 2B cysts of ovaries illustrated in Figure 5H. n = 10 germaria for each genotype. Error bars represent SEM. *p<0.005.10.7554/eLife.49309.017Figure 5—figure supplement 1—source data 1.Relative AKT intensity, InR mRNA density, & Myc-GFP intensity in the germarium.Relative AKT intensity, InR mRNA density, & Myc-GFP intensity in the germarium. Image collected & cropped by CiteAb from the following publication (https://pubmed.ncbi.nlm.nih.gov/31612862), licensed under a CC0-1.0 license. Not internally tested by Novus Biologicals.

Western Blot: GFP Antibody [NB600-308] -

Western Blot: GFP Antibody [NB600-308] - GFP Expression within A. thaliana upon infiltration with SWNT-PM-CytKH9/pDNA complexes.a Reporter construct design of transient GFP expression for the nucleus & mitochondria. b Representative confocal laser scanning microscopy images of A. thaliana root cells from a minimum of five seedlings for each condition (n = 5) 18 h post infiltration with SWNT-PM-CytKH9/pDNA complexes containing pDONR-35S-GFP or pDONR-Cox2-GFP reporter constructs for nuclear or mitochondrial expression, respectively. Mitochondria were stained with MitoTracker Red (CMXRos), & colocalization analysis was performed on GFP expression & MitoTracker signals. Scale bars represent 20 μm. c, d Representative western blots & their quantification from cytosolic (c) & mitochondrial (d) fractions isolated from approximately 60 seedlings 18 h post infiltration with SWNT NCs probed for GFP expression. Actin & cytochrome c were used as loading controls for cytosolic & mitochondrial proteins, respectively. Data points from five biological replicates (n = 5) are represented as the mean ± standard deviation. Statistical significance was determined by Brown-Forsythe & Welch one-way ANOVA test. For the cytosolic samples, P-values are 0.0027, & 0.0020 between DNA only & SWNT-PM-CytKH9, SWNT-PM-Cytcox, respectively, & 0.0253 between SWNT-PM-CytKH9 & SWNT-PM-Cytcox. For the mitochondrial samples, P-values are 0.0019, & 0.0333 between DNA only & SWNT-PM-CytKH9, & SWNT-PM-Cytcox, respectively, & 0.0359 between SWNT-PM-CytKH9 & SWNT-PM-Cytcox. ns – not statistically significant, *P < 0.05, **P < 0.01. Source data are provided as a Source Data file. Image collected & cropped by CiteAb from the following publication (https://pubmed.ncbi.nlm.nih.gov/35577779), licensed under a CC-BY license. Not internally tested by Novus Biologicals.

Western Blot: GFP Antibody [NB600-308] -

Western Blot: GFP Antibody [NB600-308] - VGLL1 regulates MMP9 transcription in gastric cancer cells. (a,b) Viability (a) & invasion (b) assay of NUGC3 cells. Cells were treated with 20 nM siScramble (SC) or siMMP9 for 48 h, & then stained with sulforhodamine B. Data are presented as mean ±SD. n = 3; * p < 0.05 (Student’s t-test). (c) MMP9 mRNA expression regulation by VGLL1 in gastric cancer cells treated with siVGLL1 or siSC (control) was measured by qPCR. (d) Changes in MMP9 expression upon knockdown or overexpression of VGLL1 assayed by western blotting in NUGC3 cells. (e) IHC of VGLL1 & MMP9 expression in the liver & lungs of an in vivo metastasis mouse model using surgical resection of tumors. Scale bar, 200 µm. (f) Construction of various luciferase reporter systems under control of the MMP9 promoter. (g) MMP9 promoter activities of the reporter systems containing modified TEA-binding sites were measured in NUGC3 cells. n = 3; * p < 0.05 (Student’s t-test). (h) Effect of TEAD4 on VGLL1-regulated MMP9 transcriptional activity. NUGC3 cells treated with siSC or siTEAD4 for 24 h were transfected with MMP9-luc, Renilla-luc, pCDNA3.1, & pcDNA3.1-myc-VGLL1 vectors for 48 h. n = 3; * p < 0.05 (Student’s t-test). (i) Interaction between VGLL1 & TEAD4. Lysates of NUGC3 cells that were transfected with pcDNA3.1-myc-VGLL1 & pEGFP-N1-TEAD4 were immunoprecipitated using anti-IgG, anti-GFP, & anti-Myc antibodies. Protein expression was analyzed by immunoblotting. (j) ChIP assays while using nuclear extracts of NUGC3 cells treated with siTEAD4. The ChIP-enriched DNA was subjected to PCR. (k) Target genes of VGLL1 & YAP. NUGC3 cells were transfected with pcDNA3, pcDNA3-myc-VGLL1, or pcDNA3-myc-YAP, & the mRNA expression levels were analyzed by RT-PCR. Image collected & cropped by CiteAb from the following publication (https://pubmed.ncbi.nlm.nih.gov/31816819), licensed under a CC-BY license. Not internally tested by Novus Biologicals.
