HIF-1 alpha Antibody (ESEE122)

Novus Biologicals, part of Bio-Techne | Catalog # NB100-131

Novus Biologicals, part of Bio-Techne

Key Product Details

Validated by

Biological Validation

Species Reactivity

Validated:

Human, Mouse, Rat, Bovine, Canine

Cited:

Human, Mouse, Rat, Bovine, Canine

Applications

Validated:

Flow Cytometry, Immunoblotting, Immunocytochemistry/ Immunofluorescence, Immunohistochemistry, Immunohistochemistry-Frozen, Immunohistochemistry-Paraffin, Immunoprecipitation, Simple Western, Western Blot

Cited:

Flow Cytometry, IF/IHC, Immunocytochemistry/ Immunofluorescence, Immunohistochemistry-Frozen, Immunohistochemistry-Paraffin, Western Blot

Label

Unconjugated

Antibody Source

Monoclonal Mouse IgG1 Clone # ESEE122

Concentration

1.0 mg/ml

View all HIF-1 alpha/HIF1A Antibodies »

Product Specifications

Immunogen

This HIF-1 alpha Antibody (ESEE122) was developed against Human HIF-1 alpha, corresponding to amino acids 329 - 530 [Uniprot# Q16665].

Reactivity Notes

Please note that this antibody is reactive to Mouse and derived from the same host, Mouse. Additional Mouse on Mouse blocking steps may be required for IHC and ICC experiments. Please contact Technical Support for more information.

Localization

Cytoplasm, Nucleus

Clonality

Monoclonal

Host

Mouse

Isotype

IgG1

Theoretical MW

93 kDa.
Disclaimer note: The observed molecular weight of the protein may vary from the listed predicted molecular weight due to post translational modifications, post translation cleavages, relative charges, and other experimental factors.

Scientific Data Images for HIF-1 alpha Antibody (ESEE122)

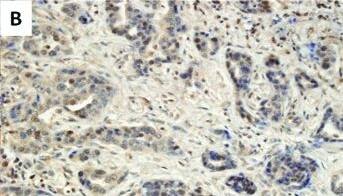

Immunohistochemistry: HIF-1 alpha Antibody (ESEE122) [NB100-131]

Immunohistochemistry: HIF-1 alpha Antibody (ESEE122) [NB100-131]

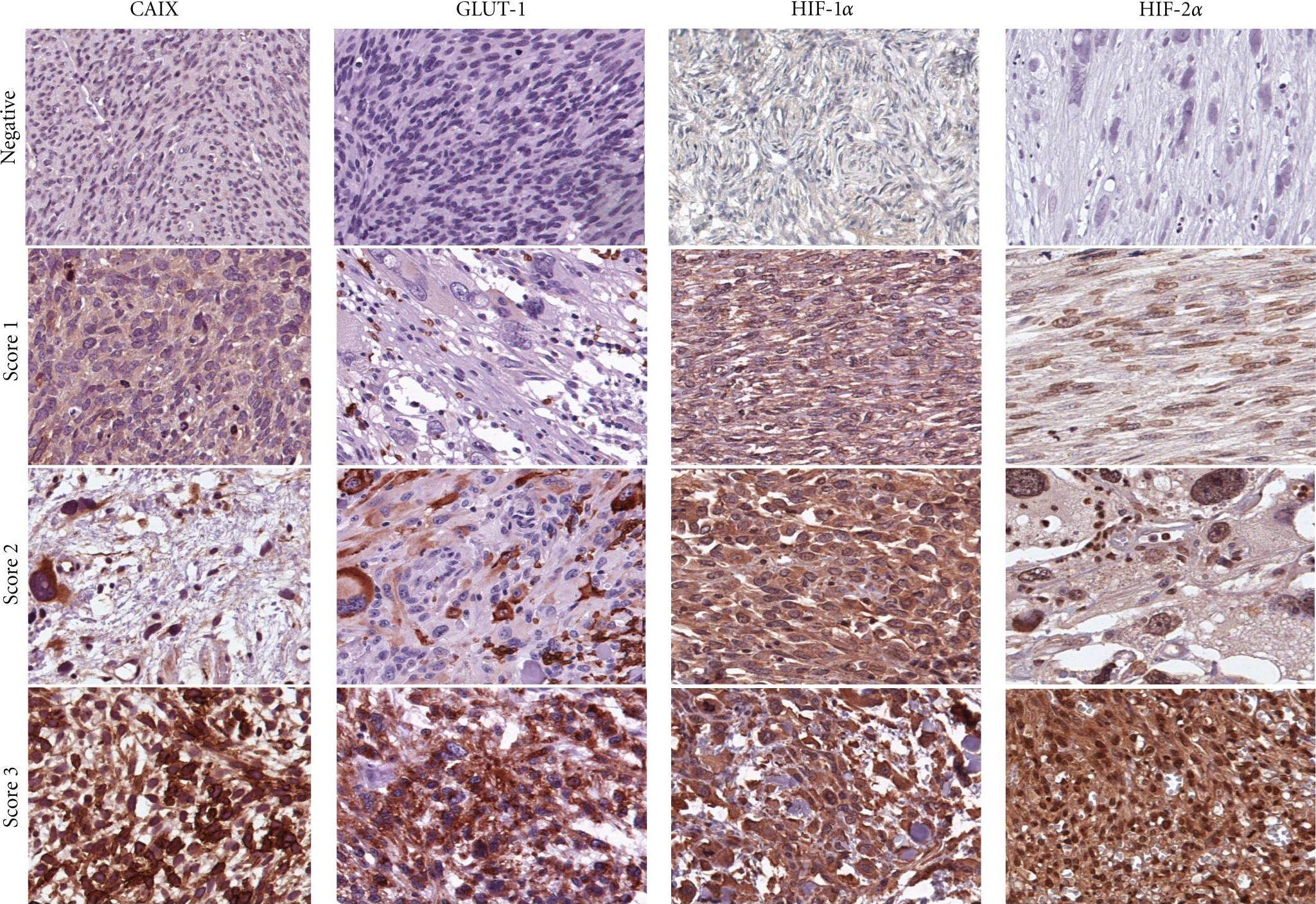

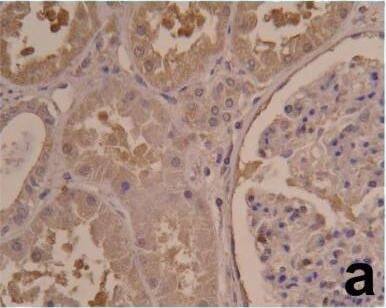

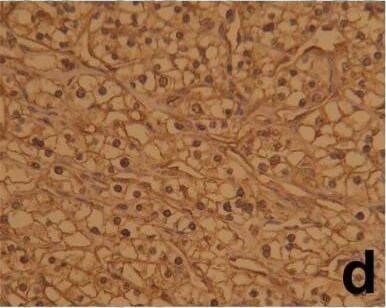

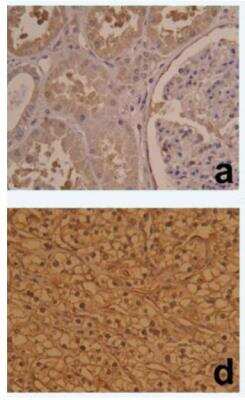

Immunohistochemistry: HIF-1 alpha Antibody (ESEE122) [NB100-131] - Immunohistochemical analysis in non-GIST STS representing negative, and score 1-3 of Carbonic Anhydrase IX/CA9, GLUT-1, HIF-1 alpha, and HIF-2 alpha/EPAS1. non-GIST STS: non-gastrointestinal stromal tumor soft-tissue sarcomas, Carbonic Anhydrase IX/CA9: carbonic anhydrase IX, GLUT-1: glucose transporter-1, and HIF-1/2alpha: hypoxia induced factor 1/2alpha. Image collected and cropped by CiteAb from the following publication (https://www.hindawi.com/journals/sarcoma/2012/541650/), licensed under a CC-BY license.

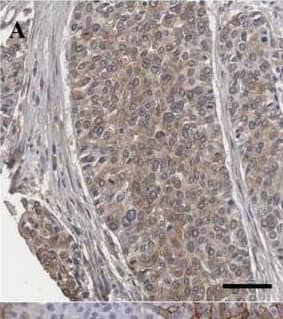

Immunohistochemistry: HIF-1 alpha Antibody (ESEE122) [NB100-131]

Immunohistochemistry: HIF-1 alpha Antibody (ESEE122) [NB100-131]

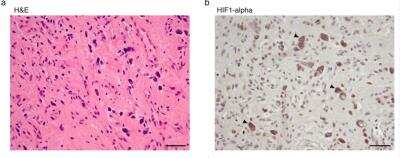

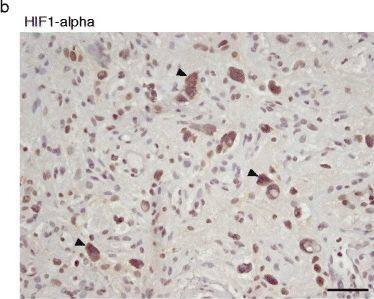

Immunohistochemistry: HIF-1 alpha Antibody (ESEE122) [NB100-131] - Histologically distinct cell types in hemangioblastomas do not arise from a common ancestral clone. Representative images of sample SH-0622 acquired at 400x of (a) H + E and IHC for (b) HIF1-alpha reveal heterogenous cell types in this tumor characterized by a rich vascular network. Arrowheads indicate that the stromal cells demonstrate increased cytoplasmic staining for HIF1-alpha and VEGF, whereas the double arrowheads highlight PDGFR-beta protein restricted to vascular endothelium. Scale bar is 25 um. Image collected and cropped by CiteAb from the following publication (https://www.actaneurocomms.org/content/2/1/167), licensed under a CC-BY license.
Simple Western: HIF-1 alpha Antibody (ESEE122) [NB100-131]

Simple Western: HIF-1 alpha Antibody (ESEE122) [NB100-131]

Simple Western: HIF-1 alpha Antibody (ESEE122) [NB100-131] - Image shows a specific band for HIF-1 alpha in 0.5 mg/mL of Hypoxic HeLa lysate. This experiment was performed under reducing conditions using the 12-230 kDa separation system.
View 22 more images

Applications for HIF-1 alpha Antibody (ESEE122)

Application
Recommended Usage

Flow Cytometry

reported in scientific literature (Gestier S. et al)

Immunocytochemistry/ Immunofluorescence

1:100

Immunohistochemistry

1:100-1:5000

Immunohistochemistry-Frozen

1:100-1:5000

Immunohistochemistry-Paraffin

1:100-1:5000

Immunoprecipitation

1:10-1:500. Use reported in scientific literature (PMID 26757928 Fig1G)

Simple Western

1:2000

Western Blot

1:500-1:1000
Application Notes
Variable results have been obtained in Western blot.

In Simple Western only 10 - 15 uL of the recommended dilution is used per data point. Separated by Size-Wes, Sally Sue/Peggy Sue.
Please Note: Optimal dilutions of this antibody should be experimentally determined.

Reviewed Applications

Read 3 reviews rated 4.3 using NB100-131 in the following applications:

Formulation, Preparation, and Storage

Purification

Protein G purified

Formulation

PBS

Preservative

0.02% Sodium Azide

Concentration

1.0 mg/ml

Shipping

The product is shipped with polar packs. Upon receipt, store it immediately at the temperature recommended below.

Stability & Storage

Aliquot and store at -20C or -80C. Avoid freeze-thaw cycles.

Background: HIF-1 alpha/HIF1A

Hypoxia contributes to the pathophysiology of human disease, including myocardial and cerebral ischemia, cancer, pulmonary hypertension, congenital heart disease and chronic obstructive pulmonary disease (1). In cancer and particularly solid tumors, hypoxia plays a critical role in the regulation of genes involved in stem cell renewal, epithelial to mesenchymal transition (EMT), metastasis and angiogenesis. In the tumor microenvironment (TME), hypoxia influences the properties and function of stromal cells (e.g., fibroblasts, endothelial and immune cells) and is a strong determinant of tumor progression (2,3).

HIF-1 or hypoxia inducible factor 1 (predicted molecular weight 93kDa), is a transcription factor commonly referred to as a "master regulator of the hypoxic response" for its central role in the regulation of cellular adaptations to hypoxia. In its active form under hypoxic conditions, HIF-1 is stabilized by the formation of a heterodimer of HIF-1 alpha and ARNT/HIF-1 beta subunits. Nuclear HIF-1 engages p300/CBP for binding to hypoxic response elements (HREs). This process induces transcription and regulation of genes including EPO, VEGF, iNOS2, ANGPT1 and OCT4 (4,5).

Under normoxic conditions, the HIF-1 alpha subunit is rapidly targeted and degraded by the ubiquitin proteasome system. This process is mediated by prolyl hydroxylase domain enzymes (PHDs), which catalyze the hydroxylation of key proline residues (Pro-402 and Pro-564) within the oxygen-dependent degradation domain of HIF-1 alpha. Once hydroxylated, HIF-1 alpha binds the von Hippel-Lindau tumor suppressor protein (pVHL) for subsequent ubiquitination and proteasomal degradation (4). pVHL dependent regulation of HIF-1 alpha plays a role in normal physiology and disease states. Regulation of HIF-1 alpha by pVHL is critical for the suppressive function of FoxP3+ regulatory Tcells (6). Repression of pVHL expression in chronic lymphocytic leukemia (CLL) B cells leads to HIF-1 alpha stabilization and increased VEGF secretion (7).

References

1. Semenza, G. L., Agani, F., Feldser, D., Iyer, N., Kotch, L., Laughner, E., & Yu, A. (2000). Hypoxia, HIF-1, and the pathophysiology of common human diseases. Advances in Experimental Medicine and Biology.

2. Muz, B., de la Puente, P., Azab, F., & Azab, A. K. (2015). The role of hypoxia in cancer progression, angiogenesis, metastasis, and resistance to therapy. Hypoxia. https://doi.org/10.2147/hp.s93413

3. Huang, Y., Lin, D., & Taniguchi, C. M. (2017). Hypoxia inducible factor (HIF) in the tumor microenvironment: friend or foe? Science China Life Sciences. https://doi.org/10.1007/s11427-017-9178-y

4. Koyasu, S., Kobayashi, M., Goto, Y., Hiraoka, M., & Harada, H. (2018). Regulatory mechanisms of hypoxia-inducible factor 1 activity: Two decades of knowledge. Cancer Science. https://doi.org/10.1111/cas.13483

5. Dengler, V. L., Galbraith, M. D., & Espinosa, J. M. (2014). Transcriptional regulation by hypoxia inducible factors. Critical Reviews in Biochemistry and Molecular Biology. https://doi.org/10.3109/10409238.2013.838205

6. Lee, J. H., Elly, C., Park, Y., & Liu, Y. C. (2015). E3Ubiquitin Ligase VHL Regulates Hypoxia-Inducible Factor-1 alpha to Maintain Regulatory T Cell Stability and Suppressive Capacity. Immunity. https://doi.org/10.1016/j.immuni.2015.05.016

7. Ghosh, A. K., Shanafelt, T. D., Cimmino, A., Taccioli, C., Volinia, S., Liu, C. G., ... Kay, N. E. (2009). Aberrant regulation of pVHL levels by microRNA promotes the HIF/VEGF axis in CLL B cells. Blood. https://doi.org/10.1182/blood-2008-10-185686

Long Name

Hypoxia Inducible Factor 1 Subunit Alpha

Alternate Names

BHLHE78, HIF 1A, HIF-1a, HIF1 alpha, HIF1A, MOP1, PASD8

Gene Symbol

HIF1A
